Description

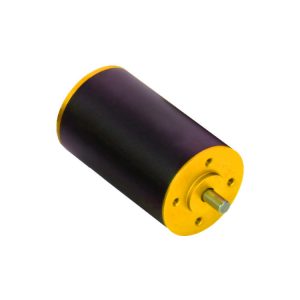

The BL3660BF high-power series coreless BLDC motor is a high-performance, multi-specification brushless DC motor designed specifically to meet various precise driving requirements. This series of motors combines advanced electronic control technology with an efficient mechanical structure, offering excellent torque output, stable speed control, and a compact exterior design. Whether in the fields of automation equipment, robotics, or high-end toys, the BD3660AN series motors can provide reliable power support.

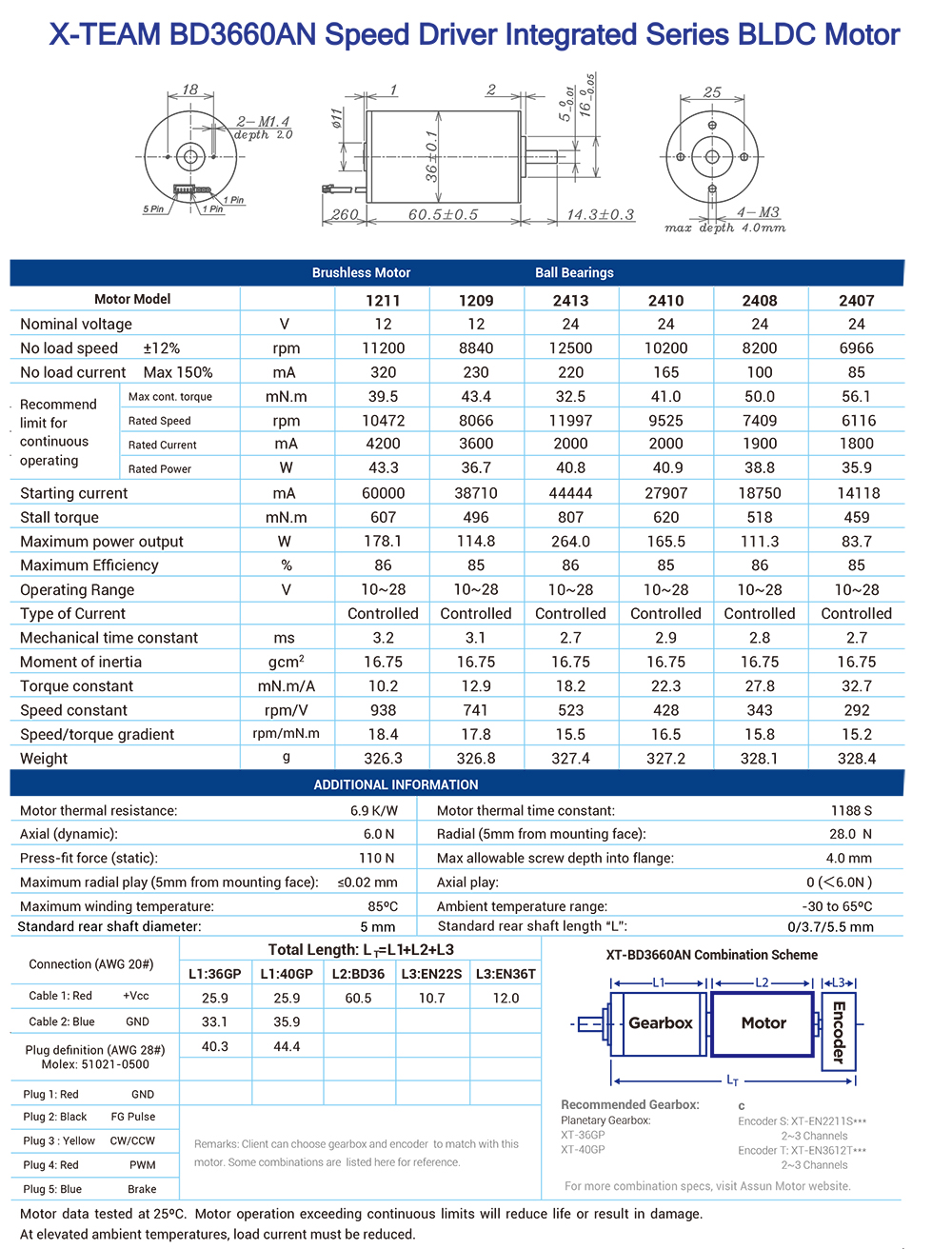

Performance Parameters
Motor Model: The BD3660AN series includes multiple sub-models such as 1211, 1209, 2413, etc., to meet the needs of different application scenarios.
Rated Voltage: Multiple voltage options such as 12V and 24V are available, making it convenient for users to select according to system requirements.
No-load Speed: The speed range of each sub-model is between 6966 rpm and 12500 rpm, meeting different speed requirements.
No-load Current: The maximum current does not exceed 320 mA (specifically depending on the sub-model and voltage), ensuring low-energy consumption operation.
Recommended/Maximum Continuous Torque: It ranges from 32.5 mN·m to 56.1 mN·m, providing strong load capacity.
Starting Current: Up to 60000 mA (for specific sub-models), ensuring the motor can start quickly.
Locked-rotor Torque: Ranging from 459 mN·m to 807 mN·m, indicating the motor’s stability under extreme conditions.
Maximum Output Power and Highest Efficiency: They vary among different sub-models but all perform excellently, ensuring high-efficiency operation.
Operating Range: The ambient temperature is between -30°C and 65°C, suitable for a variety of environmental conditions.
Structural Features
Integrated Design: The motor, driver, and control circuit are integrated into one, greatly simplifying the system design and reducing space occupation.
Ball Bearings: High-precision ball bearings are used to improve the motor’s rotation accuracy and service life.
Multiple Installation Methods: Multiple mounting hole positions and shaft length options are provided, allowing users to select and install according to actual needs.
Encoder Interface: Encoders such as XT-EN2211S or XT-EN3612T can be optionally configured to achieve precise position feedback and control.
Application Areas
The X-TEAM BD3660AN series integrated BLDC motors are widely used in various occasions that require precise control and stable power. For example:
Automation Equipment: Such as CNC machine tools and 3D printers, which require motors with high precision and high stability for driving.
Robotics: Provide power for robot joints to achieve flexible and precise motion control.
High-end Toys: Such as remote-controlled cars and aircraft, which need high-performance motors to provide sufficient power and stable speed control.
Precautions
Safe Operation: Before operation, ensure that you are familiar with the motor’s instruction manual and follow all safety regulations. Avoid using the motor in humid, high-temperature, or flammable environments.
Voltage Matching: Ensure that the input voltage matches the motor’s rated voltage to prevent the motor from overheating or being damaged.
Load Control: Do not exceed the motor’s maximum load capacity to avoid excessive wear or damage to the motor.
Ambient Temperature: When using the motor in a high-temperature environment, appropriately reduce the load current to ensure the normal operation and service life of the motor.
Regular Inspection: Regularly check the motor’s installation and connection status to ensure that the motor is in good working condition.
Professional Maintenance: If maintenance or replacement of motor components is required, it must be operated by professional personnel to ensure the motor’s performance and safety.
If you are interested in theBL3660BF high power series coreless BLDC motor or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:
Telephone: +86-769-85228181
Email: chris@x-teamrc.com
