Description
The BL3660AN standard series coreless BLDC motor, with its high-efficiency performance and durability, has become the preferred choice for numerous automation applications. This motor integrates advanced technology and design, ensuring long-term stable operation and excellent performance. Equipped with standard Hall sensors, it can provide precise speed and position feedback, thus meeting various high-precision control requirements. Whether it is used in robots, power tools, 3D printers, or other automated control devices, the BL3660AN standard series coreless BLDC motor can provide reliable power support.

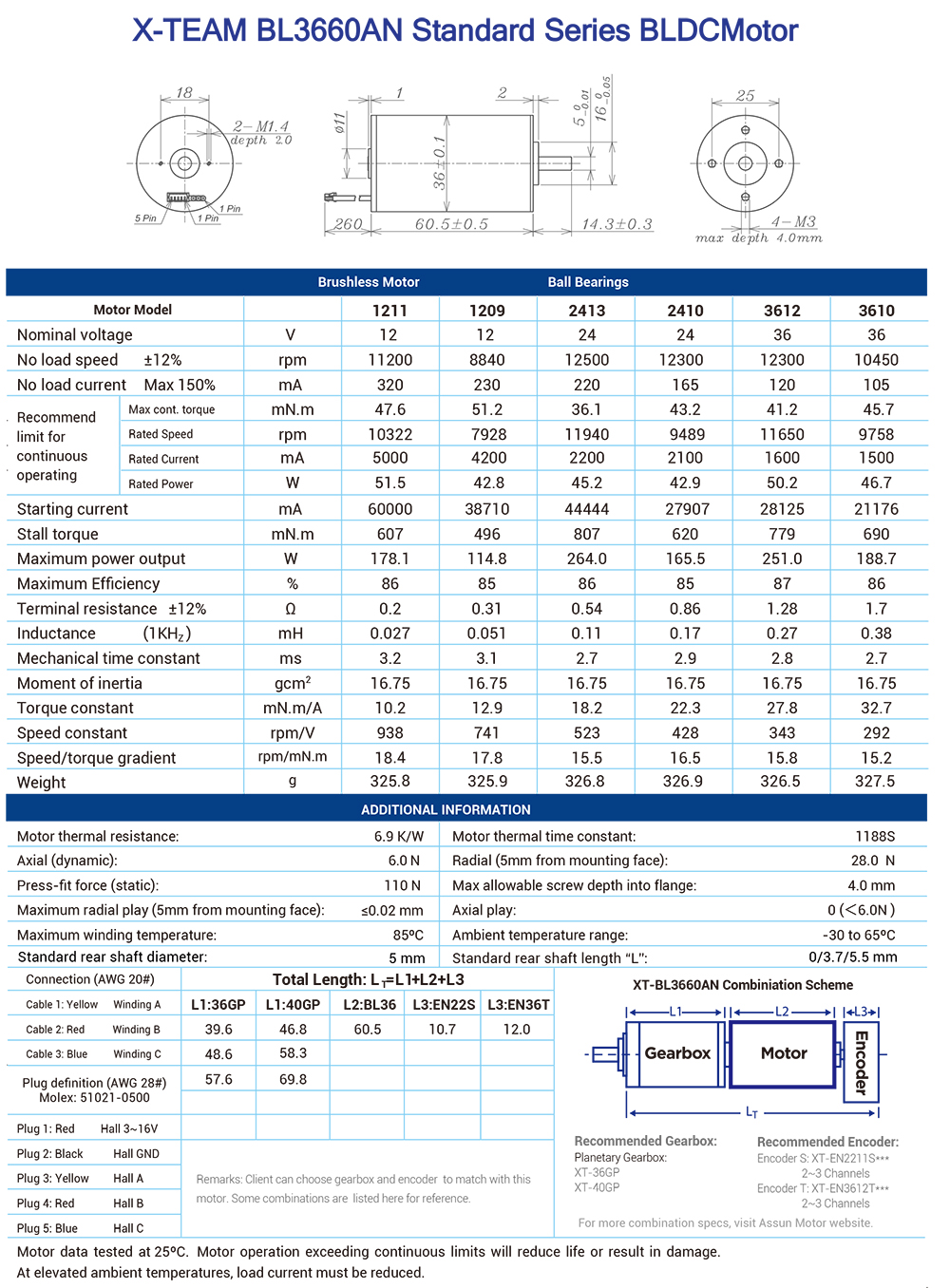

Motor Model and Specifications
A variety of model options are provided, including 1211, 1209, 2413, 2410, 3612, and 3610, to meet the specific needs of different application scenarios.
Performance Parameters
Rated Voltage: The motor can operate at rated voltages of 12V, 24V, and 36V, flexibly adapting to various power supply conditions.
No-load Speed: In the no-load state, the motor speed can reach as high as 11200 to 12500 rpm (varying according to different models), ensuring a quick response and efficient operation.
No-load Current: Even in the no-load situation, the current consumption of the motor is extremely low, which helps to extend the battery life and improve the overall energy efficiency.
Recommended Maximum Torque: When the motor operates at the recommended maximum torque, it can provide stable output and excellent performance.
Rated Speed and Current: Under the rated load, the motor can maintain a stable speed output, and at the same time, the rated current is also kept within a reasonable range, ensuring the stability and reliability of long-term operation.
Structural Features
Compact Design: The motor adopts a compact structural design, occupying a small space and facilitating installation and integration into various devices.
High-quality Materials: High-quality materials are selected for manufacturing to ensure the durability and stability of the motor, enabling it to operate for a long time in harsh environments.
Standard Hall Sensors: Equipped with standard Hall sensors, it provides accurate speed and position feedback to achieve high-precision control.
Application Areas
Consumer Electronics: Drone gimbals, camera autofocus systems.
Industrial Automation: Small conveyor belts, drives for precision instruments.
Medical Equipment: Portable pumps, micro detection instruments.
Smart Home: High-speed fans, drives for smart curtains.
Robotics: Light-duty robotic arm joints, educational robot chassis.
Precautions
Operating Environment: The motor data is tested in an environment of 25°C. Operating beyond the continuous working limit will reduce the service life of the motor or cause damage. In the case of a higher ambient temperature, the load current must be reduced.
Electrical Connection: Use appropriate cables and connectors to ensure the safety and reliability of the electrical connection.
Mechanical Installation: Ensure the correct installation of the motor and avoid exceeding the recommended values for axial and radial loads.
Maintenance: Regularly inspect the motor and related components to ensure their normal operation.
Safe Operation: Follow all relevant safety standards and operating procedures to ensure the safety of personnel and equipment.
The BL45100AN standard series coreless BLDC motor, with its excellent performance and wide applicability, has become an ideal choice for drive technology. Whether in automation, robotics, or other occasions with high-efficiency requirements, X-TEAM motors can provide stable and reliable power output. For more information or to order BLDC motors, you can contact us in the following ways:
Tel: +86-769-85228181
Email: chris@x-teamrc.com
