Description
The BL3660AE high temperature series coreless BLDC motor is a high-performance motor specifically designed for harsh environments. This motor not only possesses all the advantages of traditional brushless DC motors, such as high efficiency, long lifespan, and low noise, but also particularly enhances its working capability in high-temperature environments, enabling it to maintain stable performance under extreme conditions. This series of motors offers a variety of model options to meet different power and performance requirements, and is widely used in multiple fields such as industrial automation, aerospace, and the automotive industry.

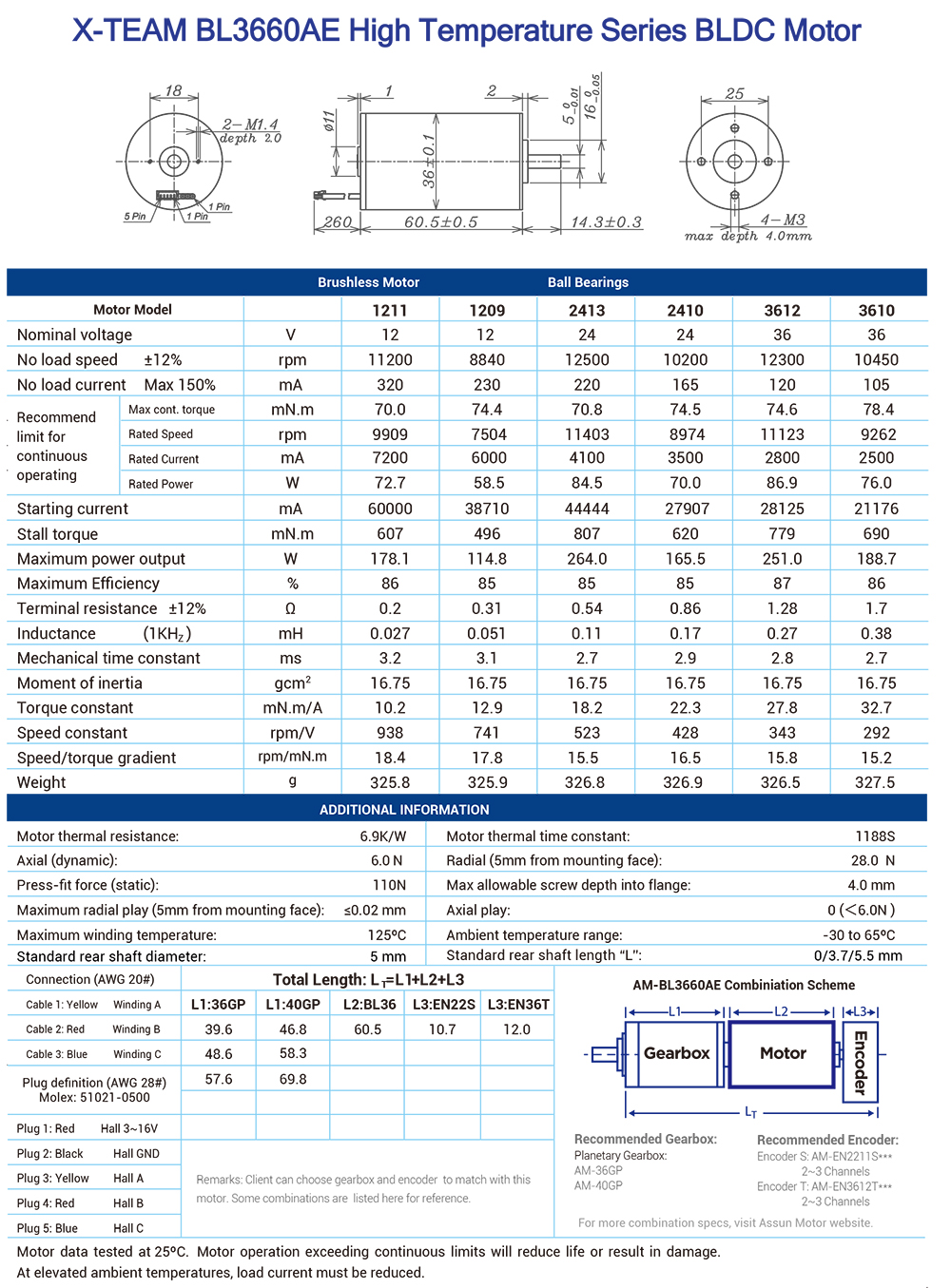

Motor Model and Specifications
The BL3660AE high temperature series coreless BLDC motor includes multiple models, such as 1211, 1209, 2413, 2410, 3612, and 3610, etc. Motors of different models vary in nominal voltage, no-load current, maximum no-load current, recommended connection wires, rated speed, and rated power, etc.
Performance Parameters
Nominal Voltage: 24V. This is the recommended voltage value for the normal operation of the motor, ensuring that the motor can perform at its best under this voltage.
No-load Current: Within a maximum range of 112%, the specific value is 12600mA (with a certain tolerance range). The no-load current refers to the current consumed by the motor when it is in an unloaded state, and this parameter reflects the no-load loss of the motor.
Maximum No-load Current: 220mA. This is the maximum current that the motor may consume when it is in an unloaded state, providing an important reference basis for the design and selection of the motor.
Rated Speed: 11400 rpm. The rated speed refers to the stable speed achieved by the motor under the rated voltage and rated load, and this parameter determines the output speed and power of the motor.
Rated Power: 287W. The rated power refers to the maximum power that the motor can output during long-term operation under the rated voltage and rated load, and it is an important indicator for evaluating the performance of the motor.
Structural Features
High Temperature Resistance: The BL3660AE high temperature series coreless BLDC motor is made of high-temperature resistant materials, enabling it to work stably for a long time in a high-temperature environment, and the maximum working temperature can reach a certain limit.
High Efficiency: The motor adopts advanced brushless DC technology and has the characteristics of high efficiency and low energy consumption. Under rated conditions, the motor can output stable power to meet various application requirements.
Low Noise: The motor operates smoothly with low noise, making it suitable for use in occasions with strict noise requirements.
Sturdy and Durable: The motor has a compact structure and is made of high-quality materials, with strong anti-vibration and anti-impact capabilities, making it suitable for use in harsh environments.
Flexible and Easy to Integrate: The motor provides a variety of wiring solutions and is easy to integrate into various electrical systems. At the same time, the size and installation method of the motor are compatible with industry standards, facilitating replacement and upgrading.
Applications and Precautions
Application Fields

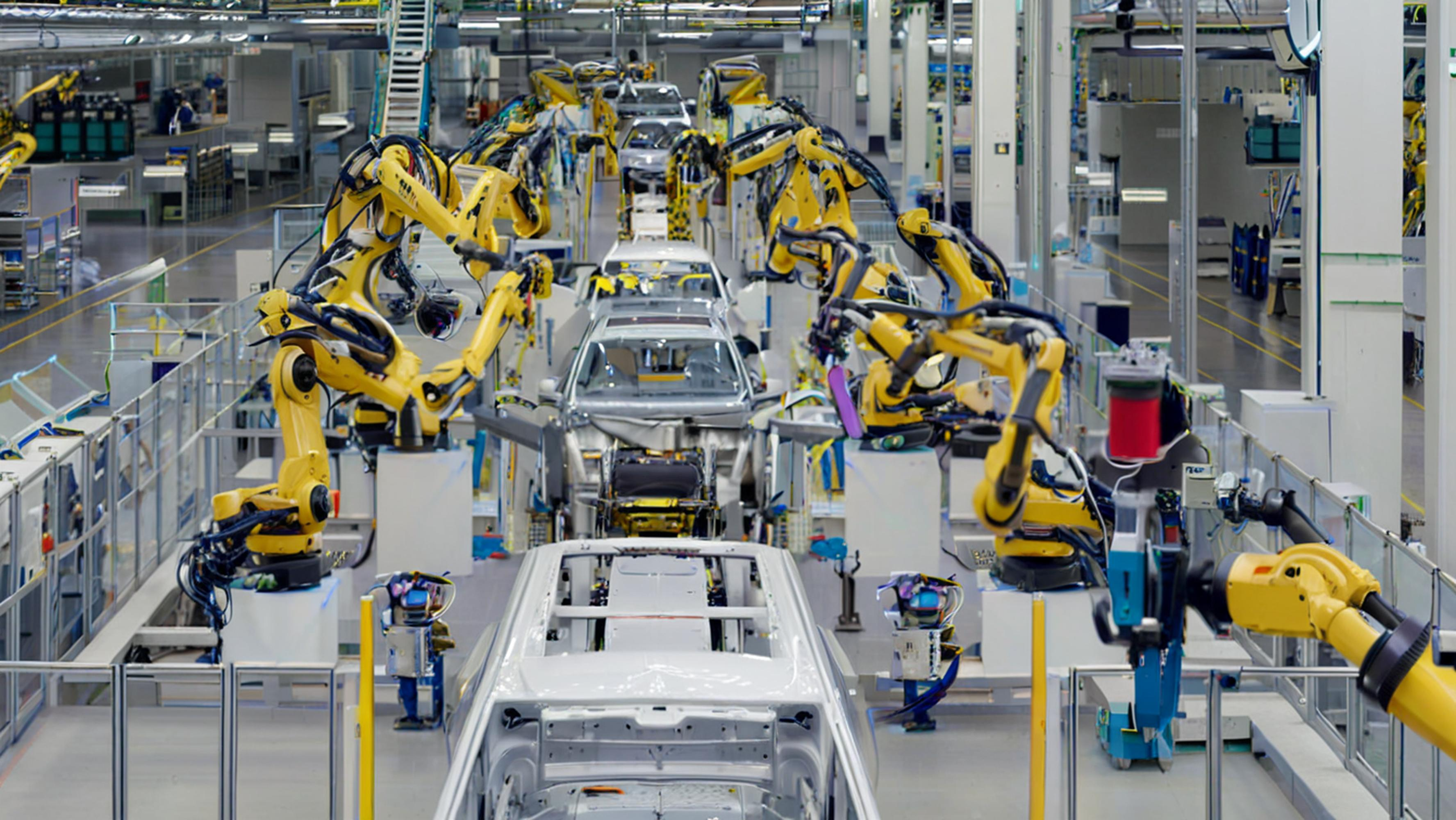

Industrial Automation: The motor can be used in various mechanical equipment on the production line, such as conveyor belts, robots, and automatic assembly lines.
Aerospace: The motor can be used in the control systems and transmission systems of aircraft, rockets, and other aerospace vehicles.
Automotive Industry: The motor can be used in the drive systems and auxiliary systems of electric vehicles and hybrid vehicles.
In addition, the motor can also be used in fields such as medical equipment, oil drilling, mining, and marine engineering.
Precautions
Power Supply Voltage Matching: Ensure that the power supply voltage is consistent with the rated voltage of the motor. If the power supply voltage is too high, it may cause damage to the power devices inside the motor; if the voltage is too low, the motor may not be able to start or run normally, affecting the system performance.
Correct Power Supply Polarity: When connecting the power supply, be sure to confirm the positive and negative polarities of the power supply to avoid reverse connection. Once the power supply is reversely connected, it will damage the internal circuit of the motor and may even cause irreparable damage.
Motor Parameter Setting: Before using the motor, it is necessary to accurately input the parameters of the motor, such as rated power, rated current, rated speed, etc. These parameters are the basis for the precise control of the motor. If the settings are incorrect, it may lead to poor motor operation performance or damage.
Load Control: Avoid running the motor under overload for a long time to prevent the motor from overheating, being damaged, or having its service life shortened.
Heat Dissipation and Ventilation: The motor will generate heat during operation, and it is necessary to ensure that there is enough heat dissipation space around the motor to avoid overheating of the motor.
The BL3660AE high temperature series coreless BLDC motor, with its excellent performance and wide applicability, has become an ideal choice for drive technology. Whether in automation, robotics, or other scenarios with high-efficiency requirements, X-TEAM motors can provide stable and reliable power output. If you need more information or want to order a BLDC motor, you can contact us in the following ways:
Tel: +86-769-85228181
E-mail: chris@x-teamrc.com
