BL3270BF high power series coreless BLDC motor

Description

The BL3270BF high power series coreless BLDC motor represents the advanced level of current motor technology. This motor integrates advanced electronic commutation technology and precise mechanical structure, enabling brushless operation. It not only significantly improves the operation efficiency and reliability of the motor but also remarkably reduces noise and vibration, extending its service life. Its original design intention is to meet the industrial applications with extremely high requirements for power performance, energy efficiency, and reliability, such as automated production lines, high-end power tools, precision medical equipment, aerospace systems, and new energy vehicles.

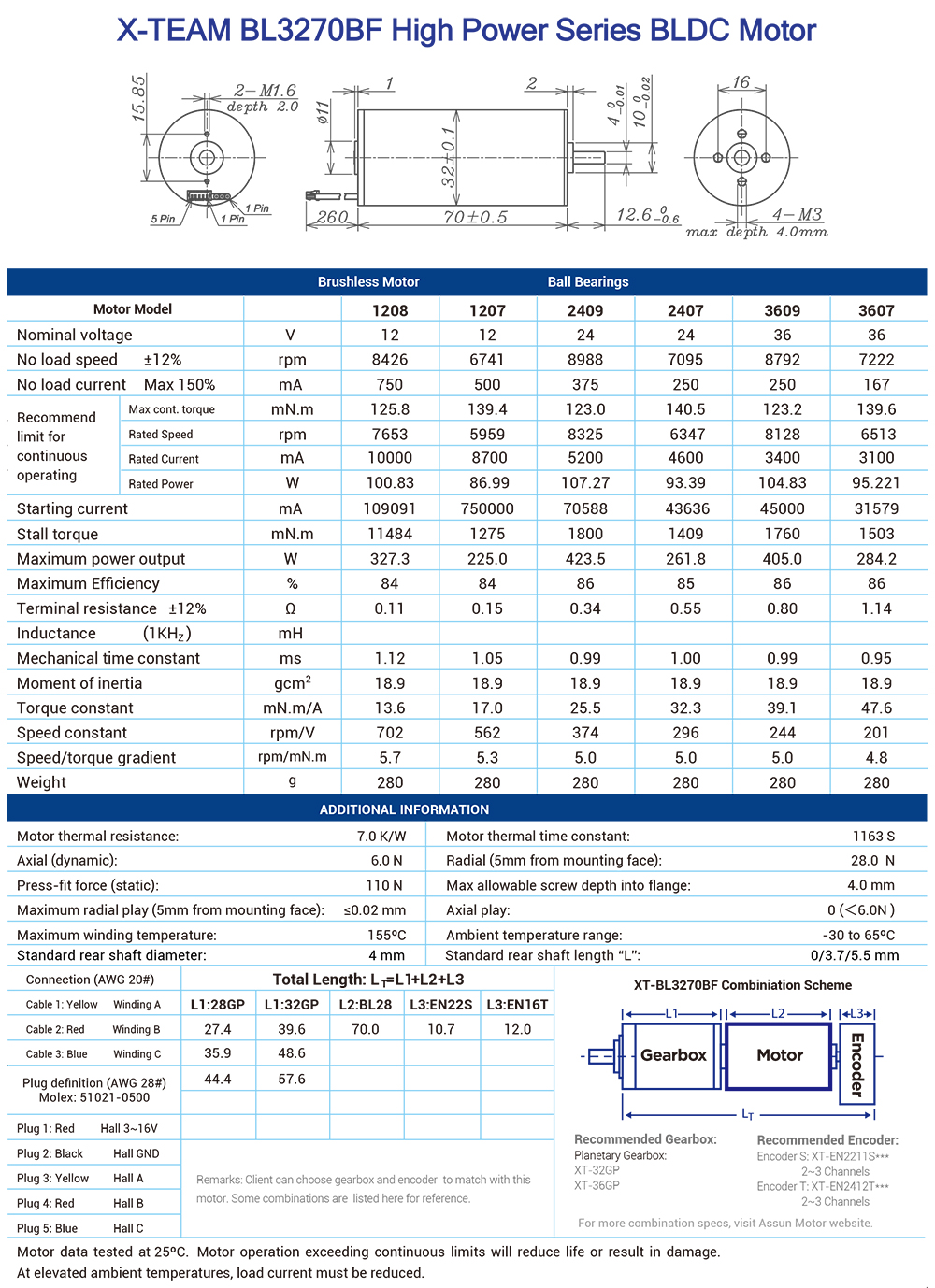

Motor Models and Specifications
It includes various specifications such as 1208, 1207, 2409, 2407, 3609, and 3607. Users can select the appropriate model according to different installation spaces and power requirements.

Performance Parameters
Input Power: The power of motors of different models varies slightly, ranging from 108.8 to 104.83 watts (W), providing a reference for users when choosing a motor.
Maximum Power Output: The maximum power output of the motor is 327.5 to 426.8 watts (W), enabling it to perform excellently in high-load applications.
Highest Efficiency: The highest efficiency reaches 84 to 86 percent (%), indicating that the motor has high efficiency in the energy conversion process.
Rated Speed: The rated speed of this series of motors is between 8420 and 8761 revolutions per minute (rpm), ensuring stable performance when the motor runs at high speed.
No-load Current: The current consumption of the motor under no-load conditions is 750 to 500 milliamps (mA), reflecting the high-efficiency design of the motor.
No-load Speed: The no-load speed is as high as 7653 to 8700 revolutions per minute (rpm), demonstrating the theoretical highest speed of the motor when there is no load.
Rated Current: Under normal operating conditions, the current consumption of the motor is 10000 to 5200 milliamps (mA), and users can evaluate the energy consumption of the motor according to this parameter.

Applications and Precautions
Application Fields
Industrial Automation: The BL3270BF high power series coreless BLDC motor can precisely control motion and is suitable for automated equipment such as industrial robots and CNC machine tools, improving production efficiency and product quality.
Power Tools: It provides high torque output and high speed, meeting the requirements of tools such as electric drills, angle grinders, and impact drills. Moreover, it has a long service life and low maintenance costs.
Medical Equipment: For medical equipment such as medical centrifuges, X-ray machines, and surgical instruments, the high-precision speed control and stability of the BLDC motor ensure the reliability and safety of the medical equipment.
Aerospace: In the environmental control system of aircraft, the auxiliary system of aircraft engines, and the flight control system, the BLDC motor is widely used due to its high reliability and precise control performance.
New Energy Vehicles: As one of the core components of electric vehicles, the BLDC motor has the advantages of high efficiency, energy conservation, and high power density, providing good power performance and endurance for electric vehicles.

Precautions
Drive Power Supply Voltage: It should be maintained within the specified range, usually 9 to 36V, to avoid burning out the driver due to overvoltage.
Control Signal Line Protection: The control signal lines are fragile and should not be connected to the wiring of the power supply or the motor interface to prevent burning out the driver.
Load Matching: Ensure that the power and torque of the selected motor meet the load requirements to avoid affecting the service life of the motor due to long-term overload operation.
Heat Dissipation and Cooling: When the motor runs under high load for a long time, pay attention to heat dissipation and cooling to prevent damage caused by overheating.

The BL3270BF high power series coreless BLDC motor, with its excellent performance and wide applicability, has become an ideal choice for drive technology. Whether in automation, robotics, or other scenarios with high-performance requirements, the X-TEAM motor can provide stable and reliable power output. For more information or to order a BLDC motor, you can contact us in the following ways:
