Description
The BL3270AN standard series coreless BLDC motor is a high-efficiency and energy-saving brushless DC motor (BLDC). It adopts a ball bearing design and high-precision manufacturing process, featuring both high dynamic response and compact lightweight characteristics. It is suitable for light-duty automated equipment, consumer electronics, and precision control fields, and supports flexible combinations of gearboxes and encoders to meet diverse application requirements.

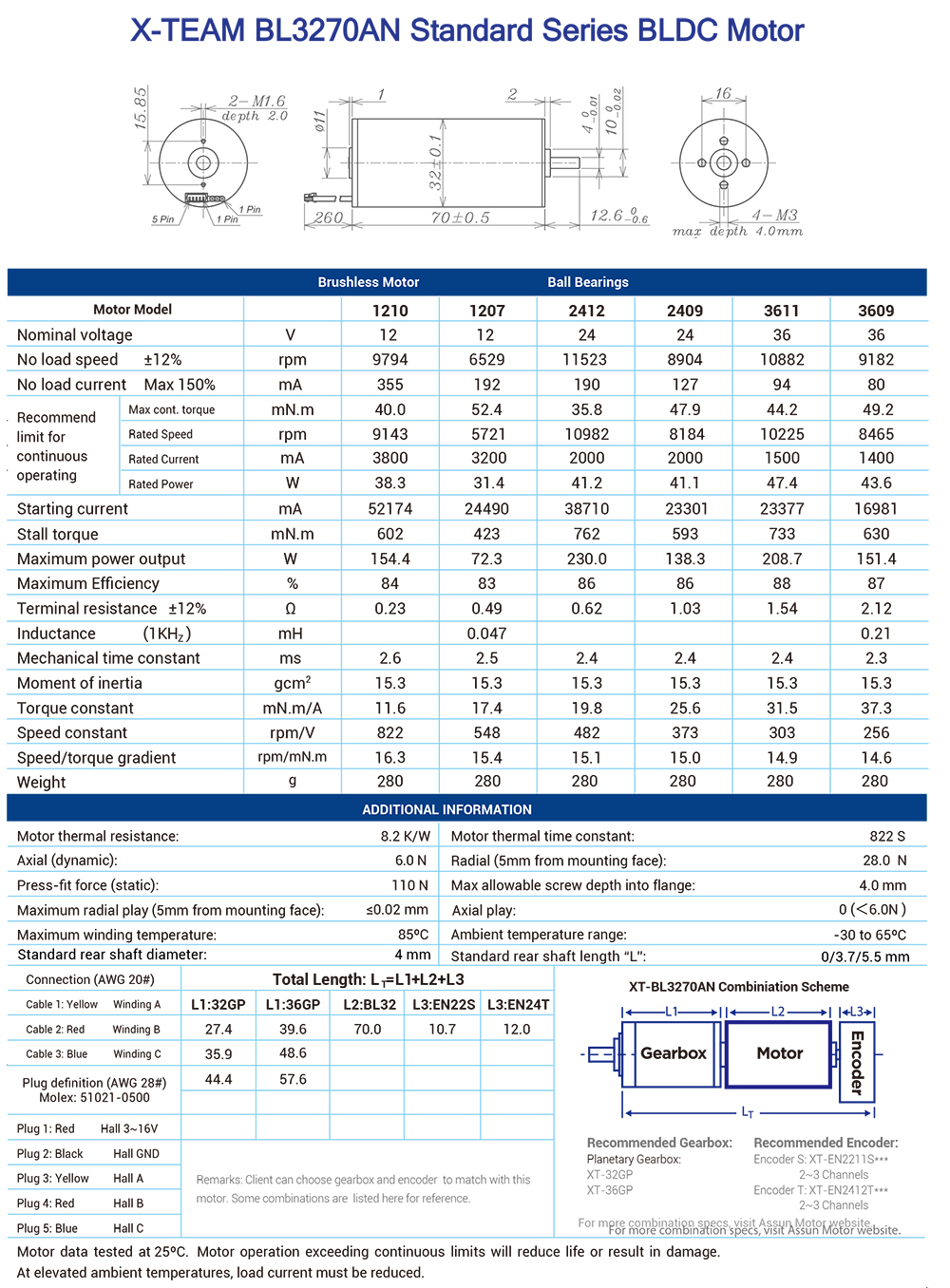

Motor Model and Specifications
X-TEAM provides a variety of models of the BL3270AN standard series coreless BLDC motor, including 1210, 1207, 2412, 2409, 3611, and 3609. These models differ in terms of voltage, speed, torque, etc., to meet different application needs.
Performance Parameters
Nominal Voltage: The motor offers three nominal voltage options of 12V, 24V, and 36V to meet different power supply and application requirements.
No-load Speed: In the no-load state, the motor speed can reach a very high level, ensuring a rapid response and efficient working ability.
Recommended Maximum Continuous Torque: The maximum torque that the motor can withstand during continuous operation ensures the durability and stable output of the motor.
Rated Speed and Current: Under rated operating conditions, the motor can maintain stable speed and current output, thus ensuring the reliability and efficiency of long-term operation.
Structural Features
Motor Structure: Adopting a brushless DC design, it provides higher efficiency and a longer service life.
Bearing Type: According to different models, 2 to 5 ball bearings are equipped to ensure smooth operation and low noise.
Thermal Resistance and Thermal Time Constant: The axial thermal resistance is 6.9 K/W, and the thermal time constant is 1188 seconds, ensuring the stable operation of the motor under high loads.
Mechanical Strength: The axial and radial load capacities are 6.0 N and 28.0 N respectively, making it suitable for a variety of mechanical applications.
Application Areas
Industrial Automation: It is used to drive various automated equipment and production lines, improving production efficiency and product quality.
Robotics: It provides precise and reliable power support for robots, enabling complex movements and tasks.
Medical Equipment: It plays a key role in medical equipment and instruments, ensuring the precise operation of the equipment and patient safety.
Precautions
Operating Environment: The motor data is tested in an environment of 25°C. Operating beyond the continuous working limit will reduce the service life of the motor or cause damage. In the case of a higher ambient temperature, the load current must be reduced.
Electrical Connection: Use appropriate cables and connectors to ensure the safety and reliability of the electrical connection.
Mechanical Installation: Ensure the correct installation of the motor and avoid exceeding the recommended values for axial and radial loads.
Maintenance: Regularly inspect the motor and related components to ensure their normal operation.
Safe Operation: Follow all relevant safety standards and operating procedures to ensure the safety of personnel and equipment.
The BL3270AN standard series coreless BLDC motor, with its excellent performance and wide applicability, has become an ideal choice for drive technology. Whether in automation, robotics, or other occasions with high-efficiency requirements, X-TEAM motors can provide stable and reliable power output. For more information or to order BLDC motors, you can contact us in the following ways:
Tel: +86-769-85228181
Email: chris@x-teamrc.com
