Description
The BL3260BF high power series coreless BLDC motor is a flagship product carefully developed by X-TEAM in response to the urgent needs of modern industries and high-tech fields for high-performance and high-reliability motors. This series of motors integrates the latest brushless DC technology, permanent magnet materials, and advanced control algorithms, aiming to provide users with unprecedented power performance, energy efficiency, and operational stability. Its excellent performance and broad application potential make the BL3260BF series of motors an important driving force for the development of modern industries and high-tech fields.
Motor Model and Specifications
The BL3260BF high power series coreless BLDC motor offers a variety of model options to meet different voltage and power requirements. The main models include 1208, 1207, 2409, 2407, 3609, and 3607, etc. These models are suitable for different voltage ranges, such as 12V, 24V, and 36V respectively.

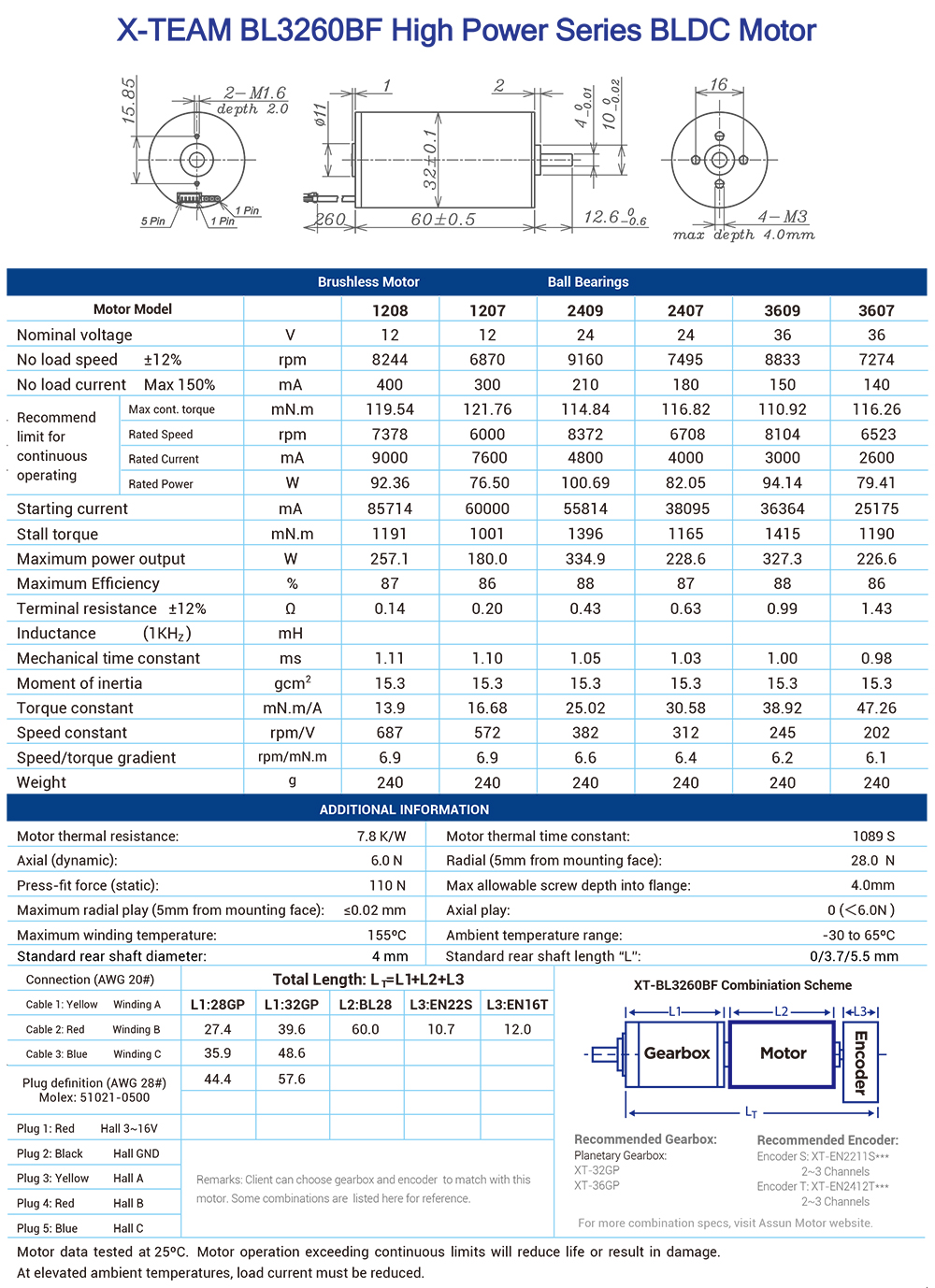

Performance Parameters
Rated Voltage: Ranging from 12V to 36V, with multiple options to meet different voltage needs.
No-load Speed: The no-load speeds of different models vary, ranging from 6870 RPM to 9160 RPM.
No-load Current: It can reach up to 150% of the rated current, and the current values of different models also vary, with a maximum of up to 400mA.
Maximum Output Power: The maximum output powers of different models vary, with a maximum of up to 334.9 W.
Highest Efficiency: It can reach up to 88%.
Resistance and Inductance: The terminal resistance is between 0.14Ω and 0.20Ω, and the inductance value is between 1.10 mH and 1.11 mH.
Structural Features
High Torque Density: The BL3260BF high power series coreless BLDC motor has an extremely high torque density, making it suitable for applications that require high starting and operating torque.
High Efficiency: The highest efficiency can reach 88%, with low energy loss during operation.
Low Noise: High-quality materials and precision manufacturing processes are adopted to ensure low-noise operation.
Durability: The high starting current and stall torque capabilities enhance the durability of the motor, making it suitable for various harsh working conditions.
Applications and Precautions
Application Areas
Logistics Sorting System: The high efficiency, high-precision speed control, and long service life characteristics of the BL3260BF high power series coreless BLDC motor make it an ideal choice for driving equipment such as conveyor belts and sorting robotic arms in logistics sorting systems. This helps to improve sorting efficiency and reduce operating costs.
Underwater Thruster: Due to the excellent waterproof performance and corrosion resistance of the BL3260BF series motors, they are very suitable for use in underwater thrusters, providing power support for underwater vehicles, submersibles, and other equipment.
Automotive Auxiliary Equipment: In the automotive industry, the BL3260BF series motors can be used in auxiliary equipment such as window lifters, seat adjusters, and sunroofs, providing smooth and reliable power output.
Precautions
Power Supply Voltage Matching: Ensure that the power supply voltage is consistent with the rated voltage of the motor. If the power supply voltage is too high or too low, it may cause the motor to fail to operate properly or be damaged.
Heat Dissipation and Protection: The motor will generate heat during operation. Therefore, users need to ensure that the motor has good heat dissipation conditions to avoid performance degradation or damage caused by overheating. At the same time, users also need to pay attention to the protection level of the motor to ensure that the motor can operate stably in harsh environments.
Electromagnetic Interference: When using the motor, pay attention to avoiding the impact of electromagnetic interference on the motor control system. If it needs to be connected and used with other electronic devices, ensure that appropriate shielding measures and grounding methods are adopted.
The BL3260BF high power series coreless BLDC motor, with its excellent performance and wide applicability, has become an ideal choice for drive technology. Whether in automation, robotics, or other occasions with high-efficiency requirements, X-TEAM motors can provide stable and reliable power output. For more information or to order BLDC motors, you can contact us in the following ways:
Tel: +86-769-85228181
Email: chris@x-teamrc.com
