Description
The BL3260AN standard series coreless BLDC motor is a high-performance brushless DC motor specifically designed for various applications. With its outstanding performance parameters and structural features, this motor can meet the needs of a wide range of fields such as industrial automation, robotics, and smart homes. The BL3260AN standard series coreless BLDC motor is like an “all-rounder” in the motor industry, capable of adapting to different working scenarios and providing stable and efficient power support.

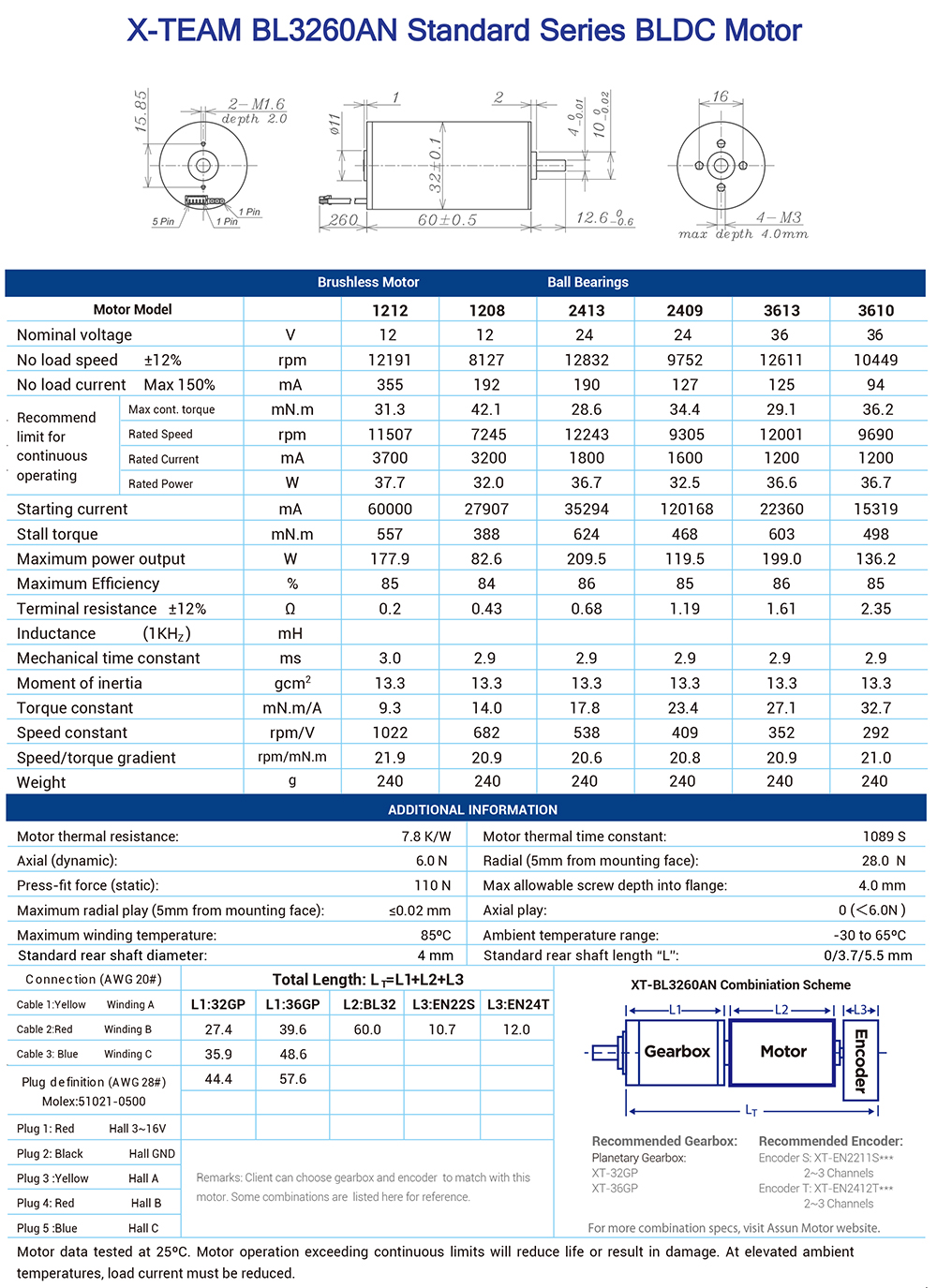

Motor Model and Specifications
X-TEAM offers various models of the BL3260AN standard series coreless BLDC motor, including 1212, 1208, 2413, 2409, 3613, and 3610. These models vary in terms of voltage, speed, torque, etc., to meet different application requirements.
Performance Parameters
Rated Voltage: Three voltage levels of 12V, 24V, and 36V are provided to meet different voltage needs.
No-load Speed: Under the rated voltage, the no-load speeds reach 12191 rpm, 12832 rpm, and 12611 rpm respectively, demonstrating efficient power output.
No-load Current: The no-load current at each voltage level is relatively low, which helps to reduce energy consumption.
Maximum Continuous Torque: Under the rated load, the maximum continuous torque ranges from 31.3 mN.m to 36.2 mN.m, providing strong output torque.
Starting Current: The starting current is relatively large, but it can quickly stabilize to the operating current, ensuring that the motor starts quickly and operates stably.
Maximum Output Power and Maximum Efficiency: Both reach relatively high levels, ensuring the efficient operation of the motor.
Structural Features
Brushless Design: The brushless structure is adopted, reducing the maintenance cost and improving the reliability and service life of the motor.
Ball Bearings: Ball bearings are used, improving the rotation accuracy and load-bearing capacity of the motor.
Multiple Motor Models: A variety of motor models such as 1212, 1208, 2413, 2409, 3613, and 3610 are provided to meet the needs of different application scenarios.
Standard Rear Shaft Diameter and Length: The standard rear shaft diameter is 4 mm, and the length options are 0/3.7/5.5 mm, facilitating installation and connection.
Combination Solutions: A variety of cable and plug combination solutions are provided, allowing users to choose according to their actual needs.
Application Fields
The BL3260AN standard series coreless BLDC motor is widely used in fields such as industrial automation, robotics, smart homes, and medical equipment. Its high performance, reliability, and flexible configuration make it an ideal choice for various complex application scenarios.
Precautions
Safe Operation: When using the motor, please ensure that relevant safety regulations are followed to avoid dangerous situations such as electric shock and short circuits.
Correct Connection: Please connect the cables and plugs correctly according to the wiring diagram in the product manual to avoid damaging the motor due to incorrect connections.
Load Limit: Do not exceed the rated load and continuous working time of the motor to avoid reducing the motor’s service life or causing damage.
Ambient Temperature: The motor should operate in an ambient temperature range of -30°C to 65°C to avoid the impact of excessively high or low temperatures on the motor’s performance.
Maintenance: Regularly check the operating status of the motor and the connecting components to ensure that the motor is in good working condition.
The BL3260AN standard series coreless BLDC motor, with its excellent performance and wide applicability, has become an ideal choice for drive technology. Whether in automation, robotics, or other scenarios with high-efficiency requirements, X-TEAM motors can provide stable and reliable power output. If you need more information or want to order a BLDC motor, you can contact us in the following ways:
