Description
The X-TEAM BL3260AE High Temperature Series BLDC Motor is a high-performance brushless direct current (BLDC) motor specifically designed for high-temperature environments. With its outstanding performance and reliable quality, it is widely applied in fields such as industrial automation, aerospace, and medical equipment. This article will provide a detailed introduction to the motor’s model, performance parameters, structural features, applications, and also offer relevant precautions.

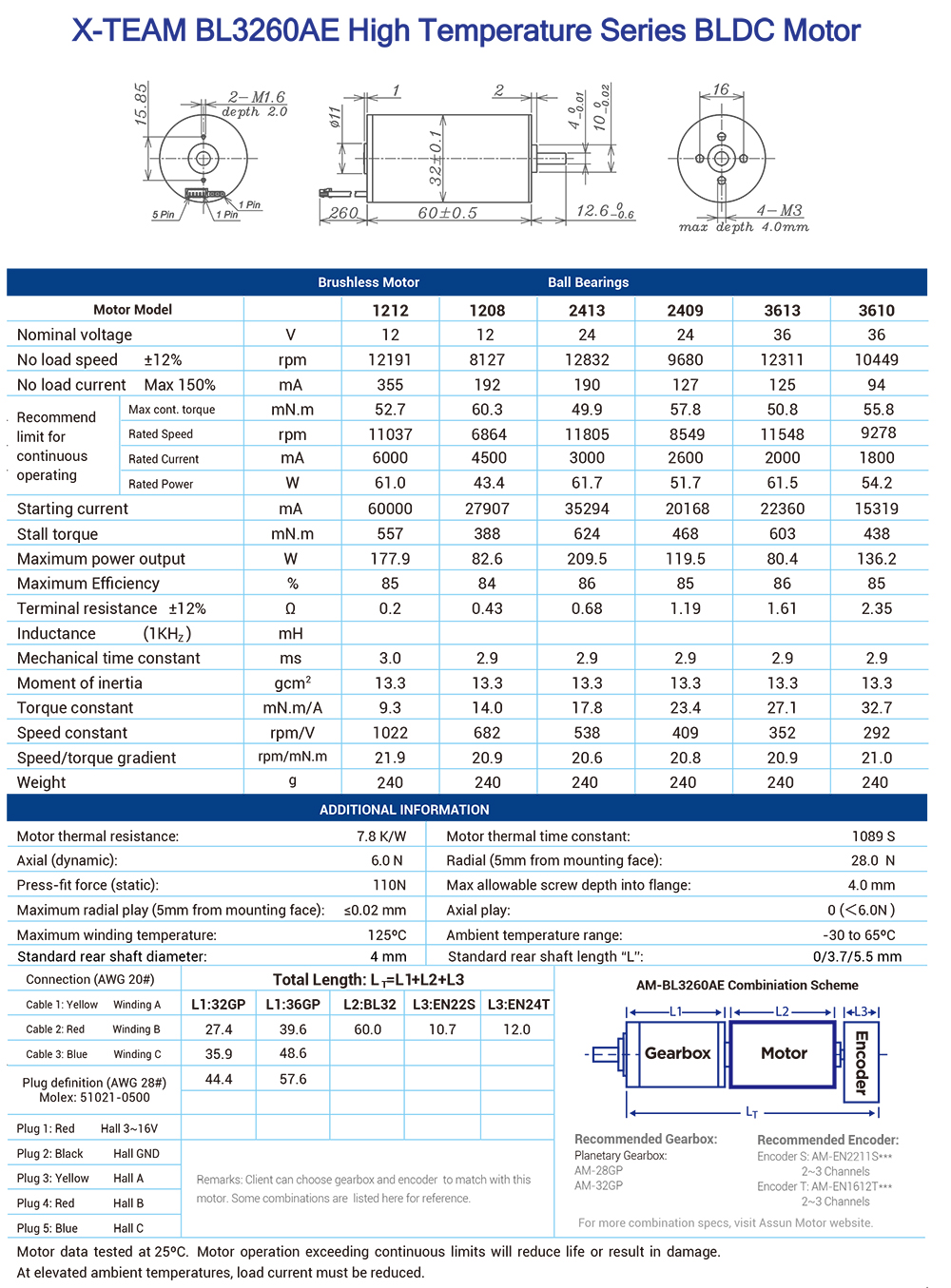

Motor Model and Specifications
A variety of motor models are provided to meet different needs, including 1212, 1208, 2413, 2409, 3613, 3610, etc.
Each model has different rated voltages and performance parameters to meet the requirements of different application scenarios. The rated voltage ranges from 12V to 36V, covering a wide range of applications.
Performance Parameters
Rated Voltage: Multiple voltage options such as 12V, 24V, and 36V are provided to meet the needs of different application scenarios.
Rated Speed: The no-load speed can reach as high as 12,191 – 12,832 rpm (varying depending on the voltage), ensuring the efficient operation of the motor.
Current: The maximum no-load current is 355 – 600 mA (varying depending on the voltage and model), and the rated current is 6000 – 1800 mA, guaranteeing the stable operation of the motor.
Torque: The maximum continuous torque is 52.7 – 55.8 mN·m, and the starting torque can reach as high as 557 – 624 mN·m, meeting high-load requirements.
Power: The rated power is 61.0 – 61.7W, and the maximum output power can reach 177.9 – 209.5W, providing strong power support.
Structural Features
Brushless Design: By adopting brushless DC technology, friction and wear are reduced, and the efficiency and lifespan of the motor are improved.
Ball Bearings: Built-in ball bearings ensure the stability and durability of the motor at high speeds.
Multiple Model Options: A variety of motor models are provided, such as 1212, 1208, 2413, etc., to meet different size and performance requirements.
Compact Structure: The motor features a compact structure, is lightweight, and is easy to install and maintain.
Application Areas
Industrial Automation: It is used in the driving devices of automation equipment to improve production efficiency and precision.
Aerospace: It is applied in the propulsion systems of aircraft to provide stable and reliable power support.
Medical Equipment: It is used in the driving devices of medical equipment to ensure the accuracy and safety of the equipment.
Precautions
Safe Operation: When operating the motor, make sure that the power supply is correctly connected and grounded to avoid the risk of electric shock.
Proper Installation: Please install the motor correctly according to the steps in the product manual to avoid malfunctions or damage caused by improper installation.
Load Limit: Do not exceed the rated load and continuous working time of the motor to avoid damaging the motor or shortening its service life.
Ambient Temperature: When using the motor in a high-temperature environment, please pay attention to reducing the load current to avoid overheating of the motor.
Maintenance: Regularly check the running status and wear condition of the motor, and replace the damaged components in a timely manner to ensure the long-term stable operation of the motor.
The X-TEAM BL3260AE High Temperature Series BLDC Motor, with its excellent performance and wide applicability, has become an ideal choice for drive technology. Whether in automation, robotics, or other scenarios with high-efficiency requirements, X-TEAM motors can provide stable and reliable power output. If you need more information or want to order a BLDC motor, you can contact us in the following ways:
Tel: +86-769-85228181
E-mail: chris@x-teamrc.com
