Description

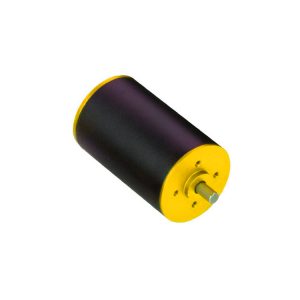

The X – TEAM BL2845BF High – Power Series BLDC Motor is a high – performance brushless DC motor designed specifically for high – power output and stable operation. This series of motors offers a variety of model options, such as 1210, 1208, 1810, 1808, 2410, and 2408, to meet the needs of different application scenarios. Whether it’s in automation equipment, the robotics field, or high – performance power tools, the BL2845BF series motors can provide reliable power support.

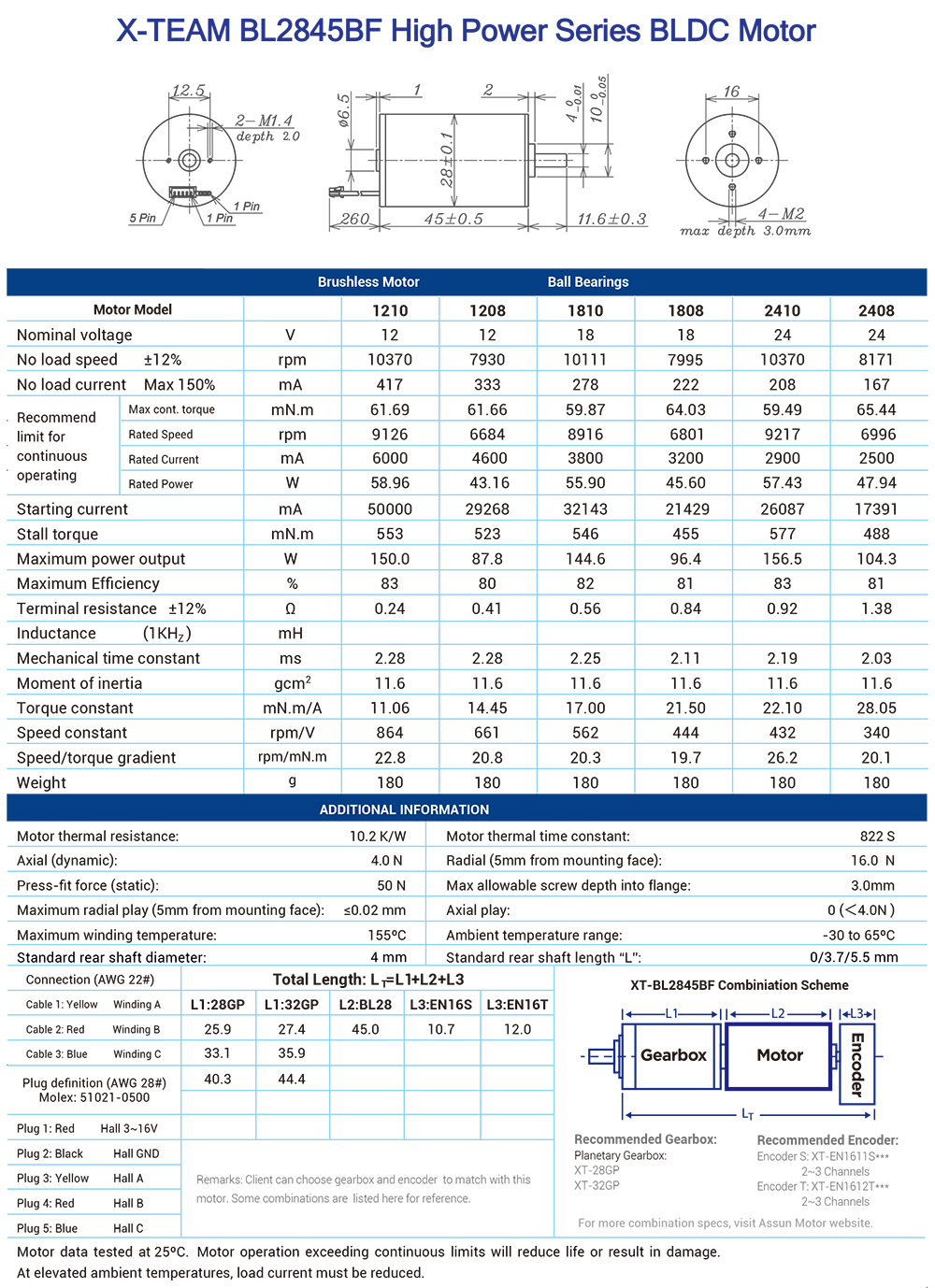

Performance Parameters
Rated Voltage: Three voltage options of 12V, 18V, and 24V are available, making it convenient for users to select according to system requirements.
No – Load Speed: The speed ranges from 7930 rpm to 10370 rpm (depending on the model and voltage), ensuring stable operation of the motor under different loads.
No – Load Current: The maximum current does not exceed 417 mA (specifically depending on the model and voltage), guaranteeing low – energy consumption operation.
Continuous Torque: At the rated speed, the continuous torque ranges from 59.49 mN·m to 65.44 mN·m, providing strong load – carrying capacity.
Starting Current: Up to 50000 mA (for specific models), ensuring the motor can start quickly.
Locked – Rotor Torque: Ranging from 455 mN·m to 577 mN·m, indicating the motor’s stability under extreme conditions.
Maximum Power Output: Varies from 87.8 W to 156.5 W, ensuring the motor’s efficient operation under high loads.
Highest Efficiency: Up to 83%, improving energy utilization and reducing energy consumption.
Structural Features
Compact Design: The BL2845BF series motors adopt a compact structural design, reducing space occupation and facilitating integration into various devices.
Ball Bearings: High – precision ball bearings are used to improve the motor’s rotation accuracy and service life.
Multiple Installation Methods: Multiple mounting hole positions and shaft length options are provided, allowing users to select and install according to actual needs.
Encoder Interface: Encoders such as XT – EN1611S or XT – EN1612T can be optionally configured to achieve precise position feedback and control.
Thermal Management: The motor has excellent thermal management performance, including thermal resistance temperature control and maximum winding temperature limitation, ensuring stable operation in high – temperature environments.
Application Areas
The X – TEAM BL2845BF High – Power Series BLDC Motor is widely used in various occasions that require high – power output and precise control. For example:
Automation Equipment: Such as CNC machine tools and 3D printers, which require motors with high precision and high stability for driving.
Robotics: Provide power for robot joints to achieve flexible and precise motion control.
High – Performance Power Tools: Such as electric drills and angle grinders, which need high – performance motors to provide sufficient power and stable speed control.
Precautions
Safe Operation: Before operation, ensure that you are familiar with the motor’s instruction manual and follow all safety regulations. Avoid using the motor in humid, high – temperature, or flammable environments.
Voltage Matching: Ensure that the input voltage matches the motor’s rated voltage to prevent the motor from overheating or being damaged.
Load Control: Do not exceed the motor’s maximum load capacity to avoid excessive wear or damage to the motor. When using the motor in a high – temperature environment, the load current should be appropriately reduced.
Regular Inspection: Regularly check the motor’s installation and connection status to ensure that the motor is in good working condition.
Professional Maintenance: If maintenance or replacement of motor components is required, it must be operated by professional personnel to ensure the motor’s performance and safety.
If you are interested in the X-TEAM BL2845BF High Power Series BLDC Motor or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:
Telephone: +86-769-85228181
Email: chris@x-teamrc.com
