Description
The BL2845AN standard series coreless BLDC motor (BLDC) is a high-performance motor specifically designed for application scenarios that require precise control and efficient energy conversion. With its excellent performance and reliable quality, it has become an ideal choice for robots, power tools, medical devices, and other automated equipment.

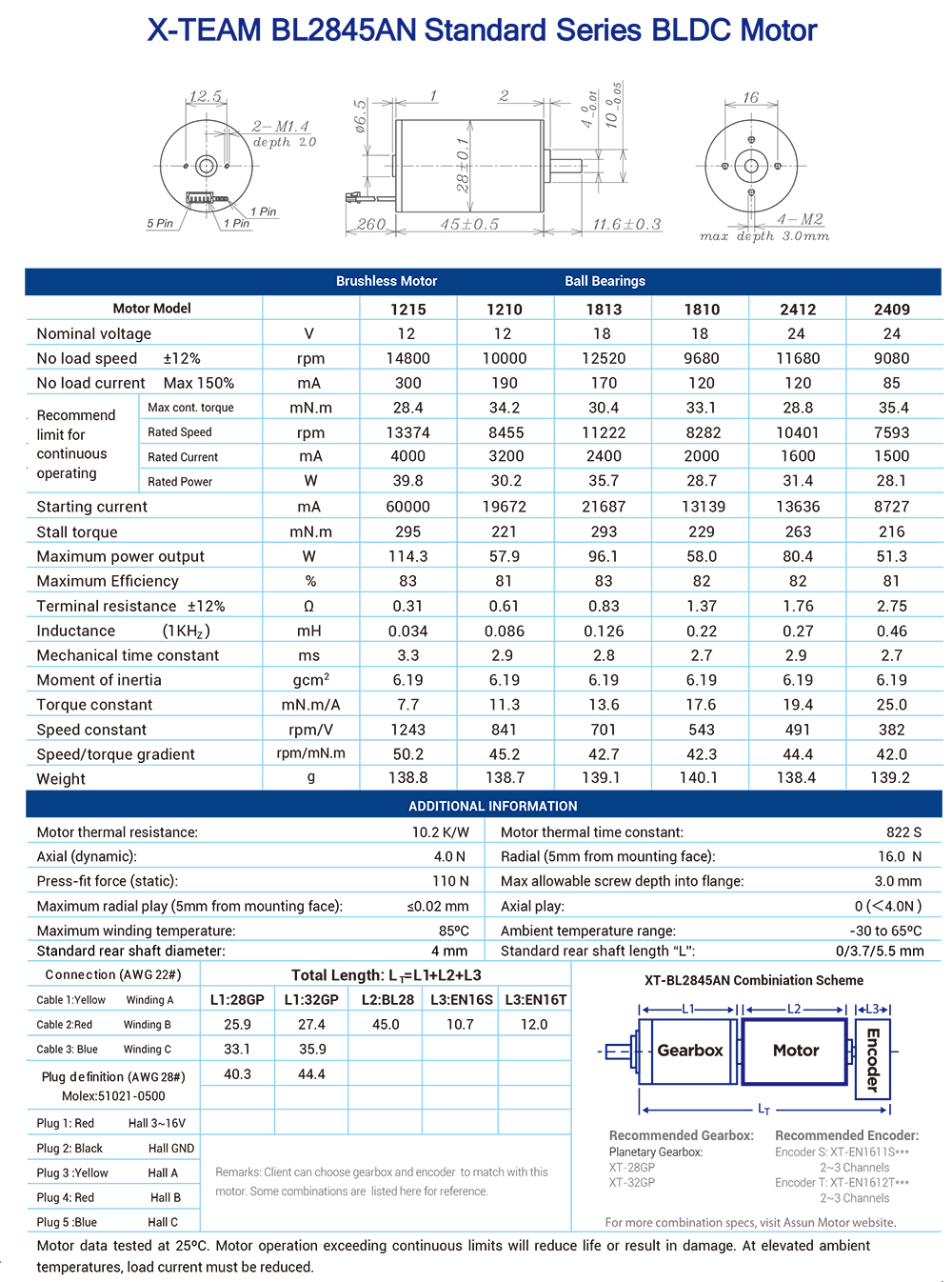

Motor Models and Specifications
X-TEAM offers various models of the BL2845AN standard series coreless BLDC motor, including 1215, 1210, 1813, 1810, 2412, and 2409. There are slight differences in voltage, rotational speed, torque, etc., which can meet different application requirements.
Performance Parameters
Rated Voltage: 12V, 18V, and 24V, suitable for different power supply configurations.
No-load Rotational Speed: The no-load rotational speed of each model ranges from 9080 rpm to 14800 rpm, providing high-speed operation capabilities.
No-load Current: The no-load current is relatively low, ranging from 85 mA to 300 mA, which helps reduce energy consumption.
Recommended Maximum Continuous Torque: The maximum continuous torque of each model is between 28.4 mN.m and 35.4 mN.m, ensuring a strong output capacity.
Rated Current and Power: The rated current ranges from 1500 mA to 4000 mA, and the rated power ranges from 28.1 W to 39.8 W, providing stable operation performance.
Starting Current: The starting current is relatively high, but there are significant differences among models, ranging from 8727 mA to 60000 mA. The appropriate model should be selected according to specific applications.
Locked-rotor Torque: The locked-rotor torque is strong, ranging from 216 mN.m to 295 mN.m, ensuring stable operation under extreme conditions.
Maximum Output Power and Efficiency: The maximum output power ranges from 51.3 W to 114.3 W, and the maximum efficiency is between 81% and 83%, achieving efficient energy conversion.
Structural Features
Brushless DC Design: Adopting brushless DC technology reduces maintenance requirements and improves operation reliability.
Multiple Models Available: Multiple models are provided to meet the needs of different application scenarios.
High-performance Materials: Manufactured using high-performance materials to ensure the durability and stability of the motor.
Compact Structure: The compact design makes the motor easy to install and suitable for application scenarios with limited space.
Thermal Resistance and Thermal Time Constant: The axial thermal resistance is 10.2 K/W, and the thermal time constant is 822 seconds, ensuring the stable operation of the motor under high loads.
Mechanical Strength: The axial and radial load capacities are 4.0 N and 16.0 N respectively, suitable for a variety of mechanical applications.
Application Fields
The BL2845AN standard series coreless BLDC motor is widely used in fields such as drones, robots, automated equipment, and power tools. Its high efficiency, high torque, and high rotational speed characteristics make it an ideal choice for high-performance applications.
Precautions
Operation Safety: When operating the motor, please ensure that all safety regulations and operating procedures are followed to prevent accidents.
Proper Model Selection: Select the appropriate motor model according to specific application requirements to ensure optimal performance and operation effects.
Regular Maintenance: Regularly maintain and inspect the motor to ensure its long-term stable operation.
Environmental Adaptability: Please note the environmental temperature range of the motor and avoid using it in an environment beyond the specified range to prevent affecting the motor’s performance and service life.
The BL2845AN standard series coreless BLDC motor, with its excellent performance and wide applicability, has become an ideal choice for drive technology. Whether in automation, robotics, or other occasions with high-performance requirements, X-TEAM motors can provide stable and reliable power output. If you need more information or want to order a BLDC motor, you can contact us in the following ways:
