Description
The BL2845AE high temperature series coreless BLDC motor is the latest motor product launched by X-TEAM, specifically designed for high-performance applications. This motor integrates advanced brushless DC technology and precise manufacturing processes, aiming to provide stable, efficient, and reliable power support for various fields such as medical equipment, automation equipment, aeromodels, power tools, and new energy vehicles.

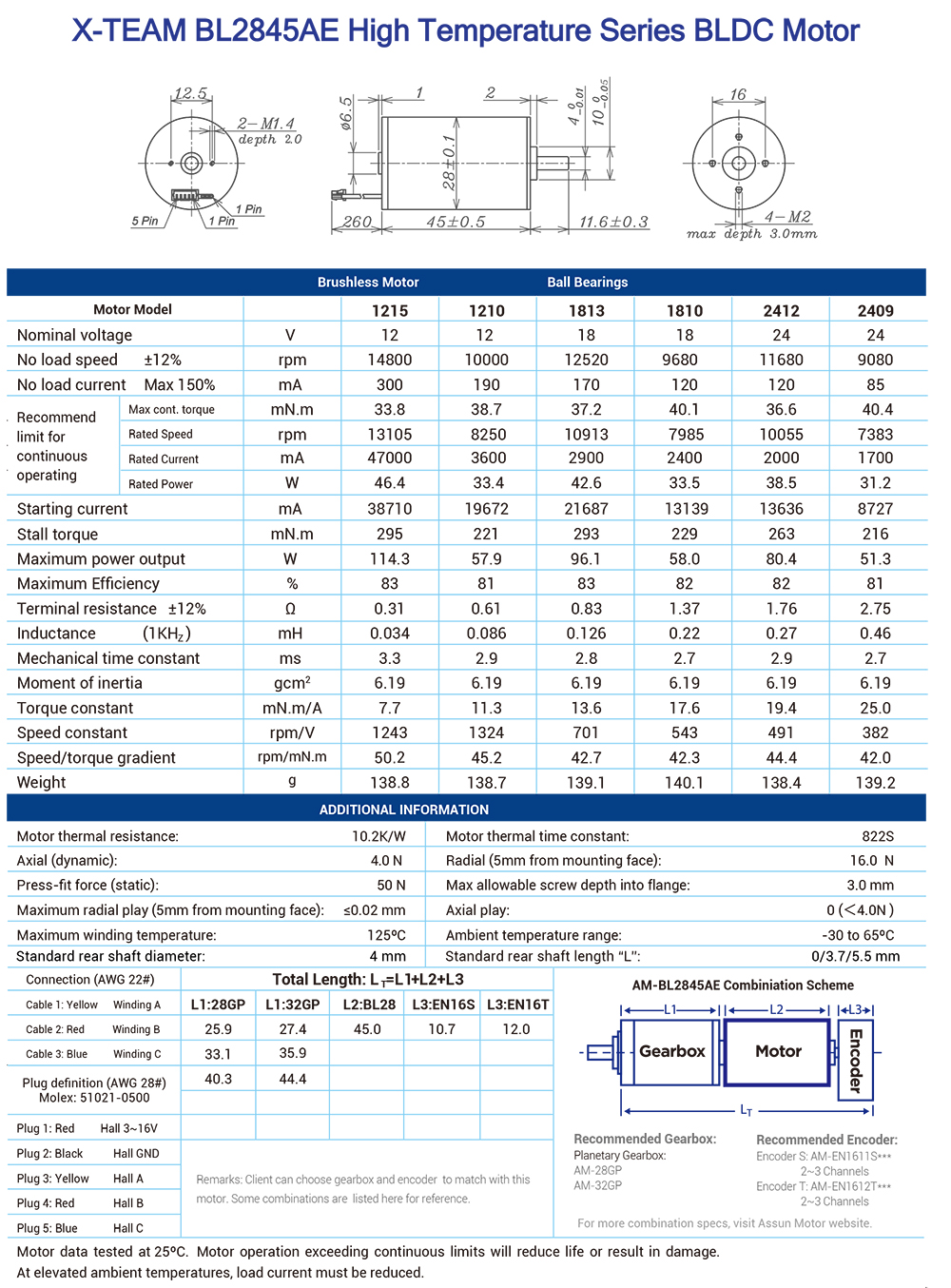

Motor Model and Specifications
The BL2845AE high temperature series coreless BLDC motor, a high-performance brushless DC motor, offers a variety of specifications to meet different needs, including but not limited to 1215, 1210, 1813, 1810, 2412, 2409, etc. Each model corresponds to different rated voltages and performance characteristics.
Performance Parameters
Rated Voltage: Supports multiple voltage levels such as 12V, 18V, or 24V to adapt to different power supply environments.
No-load Speed: Under the rated voltage, the no-load speed can reach as high as 9680-14800 rpm, with an allowable deviation of ±12%, ensuring stable output of the motor under different load conditions.
No-load Current: The maximum no-load current is 150% of the recommended value, and the specific value depends on the motor model and rated voltage to provide sufficient current margin.
Recommended Maximum Continuous Torque: Under the rated current, the recommended maximum continuous torque ranges from 33.8 to 40.4 mN.m, meeting the requirements of various high-load applications.
Rated Speed and Current: The rated speed ranges from 7383 to 13105 rpm, and the rated current ranges from 1700 to 4700 mA, ensuring the stable performance of the motor during continuous operation.
Rated Power: The rated power ranges from 31.2 to 46.4W, providing stable and efficient power support.
Maximum Power Output and Efficiency: Under allowable conditions, the maximum power output of the motor ranges from 51.3 to 114.3W, and the maximum efficiency ranges from 81% to 83%, ensuring the efficient operation of the motor.
Structural Features
Brushless Design: Adopts advanced brushless DC technology, reducing friction and wear, and improving the efficiency and lifespan of the motor. At the same time, the brushless design also reduces noise and vibration, enhancing the overall performance.
Ball Bearings: High-quality ball bearings are built-in to ensure smooth operation and low noise of the motor at high speeds. Ball bearings have excellent wear resistance and load-bearing capacity, making them suitable for various high-load applications.
Multiple Installation Options: Provides multiple installation hole positions and depth options, such as 4-M2 installation holes with a maximum depth of 3.0mm, facilitating integration with various devices. In addition, standard rear shaft diameter and length options are also provided to meet different application requirements.
Compact Structure: The motor is designed to be compact, with a small size and light weight, making it easy to install and maintain. At the same time, the compact structure also helps to improve the heat dissipation performance of the motor, ensuring stable operation in high-temperature environments.
Application Fields
Medical Equipment: This motor can be used in key parts of surgical instruments, rehabilitation equipment, etc., providing stable and precise power support.
Automation Equipment: This motor can be used in various automated assembly, transmission, and detection equipment, etc., improving production efficiency and quality.
Aeromodels: With its high performance and compact structure, this motor has become an ideal power source for aircraft models.
Power Tools and New Energy Vehicles: This motor also demonstrates excellent performance and reliability.
Precautions
Load Limit: Do not exceed the rated load and continuous working time of the motor to avoid damaging the motor or shortening its service life. When selecting a motor, please ensure that the performance parameters of the selected model can meet your application requirements.
Ambient Temperature: Although this motor is specifically designed for high-temperature environments, it is still necessary to pay attention to reducing the load current to avoid overheating of the motor when used under extremely high-temperature conditions. When working in a high-temperature environment, ensure that the temperature of the motor does not exceed the maximum winding temperature limit (usually 125°C).
Maintenance: Regularly check the running status and wear condition of the motor, and replace damaged components in a timely manner to ensure the long-term stable operation of the motor.
Electrical Connection: When connecting the motor, ensure that the electrical connection is correct, firm, and reliable. Avoid malfunctions or damage caused by poor electrical connections.
The BL2845AE high temperature series coreless BLDC motor, with its excellent performance and wide applicability, has become an ideal choice for drive technology. Whether in automation, robotics, or other scenarios with high-efficiency requirements, X-TEAM motors can provide stable and reliable power output. If you need more information or want to order a BLDC motor, you can contact us in the following ways:
Tel: +86-769-85228181
E-mail: chris@x-teamrc.com
