BL2453BF high power series coreless BLDC motor

Description

The BL2453BF high power series coreless BLDC motor is a high-performance motor specifically designed for complex working conditions. It integrates advanced motor technology and high-quality materials, ensuring excellent power performance and efficiency. This series of motors offers a variety of specifications to meet the needs of different application scenarios.

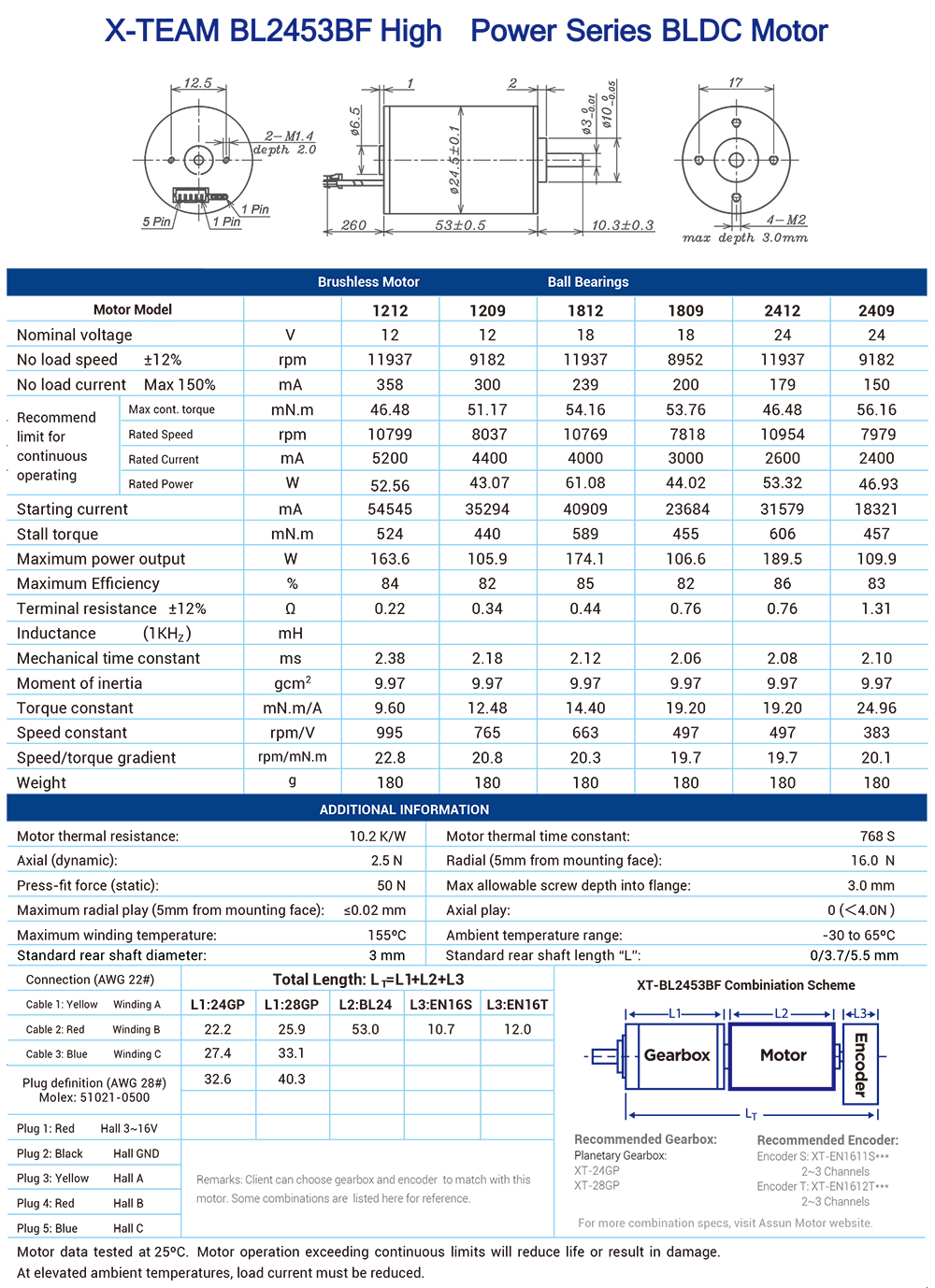

Motor Models and Specifications
12V Series
Model 1210: The rated rotational speed is as high as 10890 rpm, the rated current is 417 mA, it can generate a linear fitting torque of up to 9152 mN.m, the rated power is 55.80 W, and the maximum efficiency can reach 83%.
Model 1208: The rated rotational speed is 7930 rpm, the rated current is 333 mA, the linear fitting torque is 8915 mN.m, the rated power is 43.16 W, and the maximum efficiency is 80%.
18V Series
Model 1810: It rotates at a high speed of 29855 rpm, and with a rated current of only 278 mA, it can generate a linear fitting torque of 9315 mN.m, the rated power is 55.67 W, and the maximum efficiency is 82%.
Model 1808: The rated rotational speed is as high as 29965 rpm, the rated current is 222 mA, the linear fitting torque is 9337 mN.m, the rated power is 45.60 W, and the maximum efficiency is 81%.
24V Series
Model 2410: Under a voltage of 24V, the rated rotational speed is 10370 rpm, the rated current is 208 mA, it can generate a linear fitting torque of 9317 mN.m, the rated power is 57.43 W, and the maximum efficiency is as high as 83%.
Model 2408: The rated rotational speed is 8171 rpm, the rated current is 167 mA, the linear fitting torque is 6690 mN.m, the rated power is 47.94 W, and the maximum efficiency is 81%.

Rated Voltage: The rated voltages of different models are 12V, 12V, 18V, 18V, 24V, and 24V respectively.
Rated Rotational Speed: The rated rotational speed varies depending on the model, ranging from the lowest 7930 rpm (Model 1208) to the highest 29965 rpm (Model 1808). The high rotational speed enables the BL2453BF high power series coreless BLDC motor to respond quickly and provide a strong power output.
Rated Current: The rated current ranges from the lowest 222 mA (Model 1808) to the highest 417 mA (Model 1210).
Rated Power: The rated power is the power that the motor can continuously output under the rated load. The rated power of different models ranges from the lowest 43.16 W (Model 1208) to the highest 57.43 W (Model 2410). The high power enables the BL2845BF motor to provide a continuous and stable power output.
Maximum Efficiency: The maximum efficiency of the BL2453BF high power series coreless BLDC motor is all above 80%, among which the highest can reach 83% (Models 1210 and 2410). The high efficiency helps to reduce energy consumption and improve the overall performance of the system.

Structural Features
This series of motors adopts advanced brushless DC technology, with a compact structure, light weight, and excellent heat dissipation performance. Its internal design is reasonable, ensuring the reliability of long-term stable operation. In addition, the brushless DC motor has excellent speed regulation performance and can easily cope with various load changes.

Applications and Precautions
Application Fields

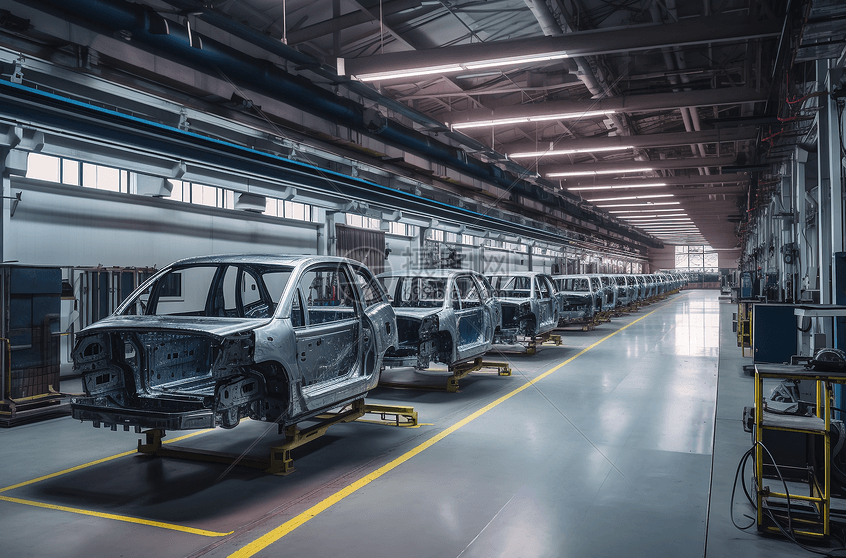

The BL2453BF high power series coreless BLDC motor is widely used in fields such as industrial automation, aerospace, medical equipment, and electric vehicles. Its high performance and reliability make it an ideal choice for various high-precision and high-demand application scenarios. Whether in automated production lines that require high-speed rotation or in medical equipment that requires low noise and low vibration, this series of motors can perform excellently.

Precautions
Ensure Stable Power Supply Voltage: The power supply voltage should be consistent with the rated voltage of the motor to avoid damage to the motor caused by too high or too low voltage. Too high voltage may lead to damage to the internal components of the motor, while too low voltage may prevent the motor from working properly or reduce its performance.
Pay Attention to Current Limitation: When the motor is working, its current should not exceed the rated current to prevent the motor from overheating or being damaged. If it needs to work for a long time, please ensure that the motor operates within the rated load range.
Pay Attention to Electromagnetic Interference: When using the motor, attention should be paid to avoiding the influence of electromagnetic interference on the motor control system. If it needs to be connected and used with other electronic devices, please ensure that appropriate shielding measures and grounding methods are adopted.
Good Grounding: The grounding of the motor should be ensured to be good to reduce the impact of electromagnetic interference on the system. At the same time, grounding also helps to protect the motor and the safety of personnel.

The BL2453BF high power series coreless BLDC motor, with its excellent performance and wide applicability, has become an ideal choice for drive technology. Whether in automation, robotics, or other scenarios with high-performance requirements, the X-TEAM motor can provide stable and reliable power output. For more information or to order a BLDC motor, you can contact us in the following ways:
