Description
The BL2453AN standard series coreless BLDC motor is a motor with excellent performance and strong adaptability, suitable for a variety of application scenarios. Its multiple models and high-performance parameters ensure that it can easily handle various tasks, and its robust structure and easy installation features make it an ideal choice for you.

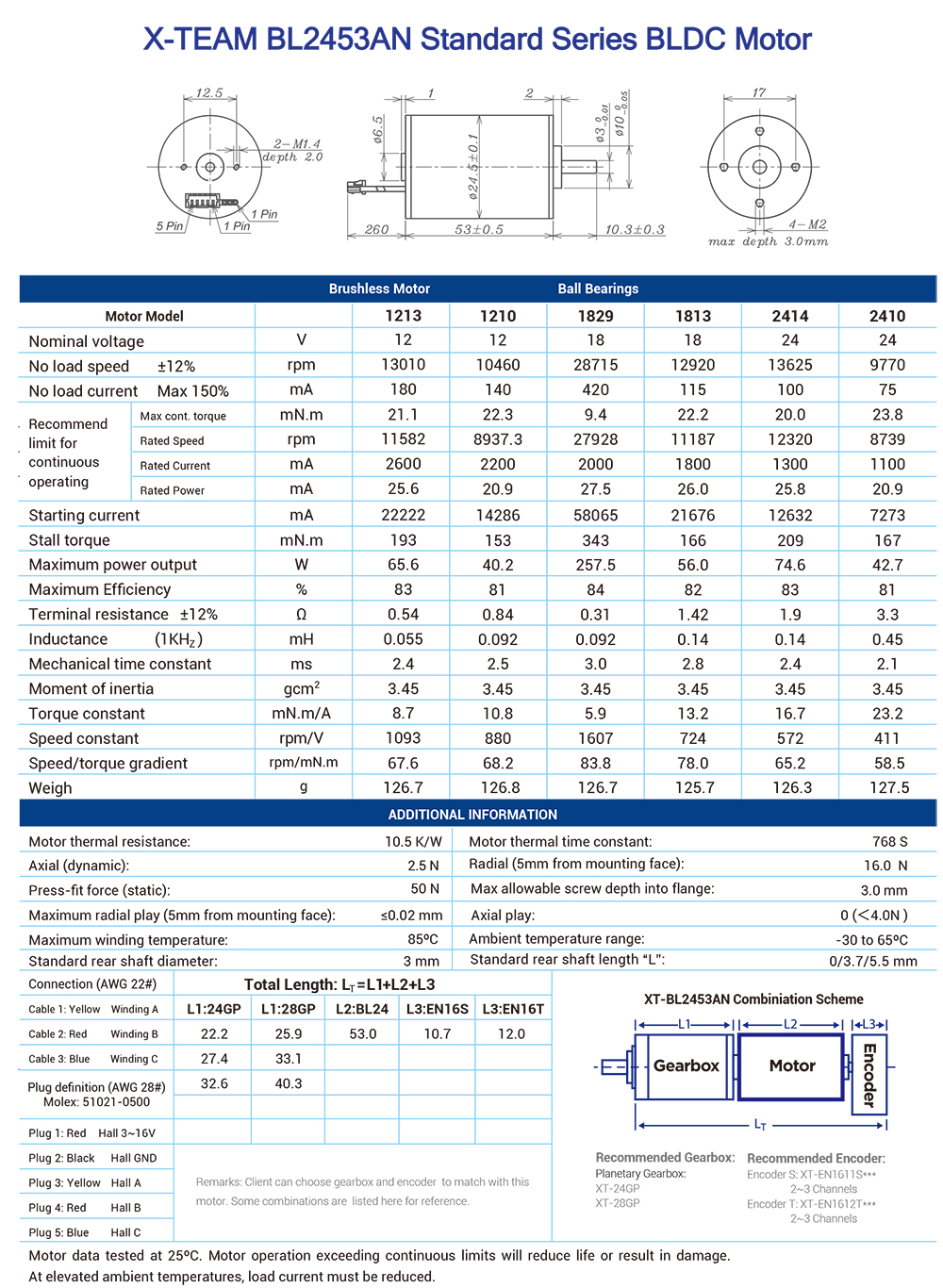

Motor Models and Specifications
X-TEAM offers various models of the BL2453AN standard series coreless BLDC motor, including 1213, 1210, 1829, 1813, 2414, and 2410. These models differ in aspects such as voltage, rotational speed, and torque to meet different application requirements.
Performance Parameters
Rated Voltage: The rated voltage varies according to the model, mainly being 12V, 18V, and 24V. Users can select the appropriate model according to their power supply capacity.
No-load Rotational Speed: The no-load rotational speed ranges from 13810 rpm (model 1212) to 13625 rpm (model 2414).
No-load Current: The maximum is 130% of the rated current, with the value ranging from 180 mA to 420 mA, ensuring efficient operation even under rated load conditions.
Maximum Efficiency: It is between 81% and 84%, with good energy utilization efficiency.
Torque Constant: The range is from 5.9 mN.m/A to 23.2 mN.m/A.
Speed Constant: The range is from 411 rpm/V to 1093 rpm/V.
Speed/Torque Gradient: The range is from 58.5 rpm/mN.m to 83.8 rpm/mN.m.
Structural Features
Motor Structure: The BL2453AN standard series coreless BLDC motor adopts a brushless DC design, providing higher efficiency and a longer service life.
Bearing Type: Depending on different models, it is equipped with 2 to 5 ball bearings to ensure smooth operation and low noise.
Thermal Resistance and Thermal Time Constant: The axial thermal resistance is 10.5 K/W, and the thermal time constant is 768 seconds, ensuring the stable operation of the motor under high loads.
Mechanical Strength: The axial and radial load capacities are 2.5 N and 16.0 N respectively, suitable for a variety of mechanical applications.
Applications
The BL2453AN standard series coreless BLDC motor is widely used in fields such as drones, robots, automated equipment, and power tools. Its high efficiency, high torque, and high rotational speed characteristics make it an ideal choice for high-performance applications.
Precautions
Operating Environment: The motor data is tested in an environment of 25℃. Operating beyond the continuous working limit will reduce the motor’s service life or cause damage. In cases of a higher environmental temperature, the load current must be reduced.
Electrical Connection: Use appropriate cables and connectors to ensure the safety and reliability of the electrical connection.
Mechanical Installation: Ensure the correct installation of the motor and avoid the axial and radial loads exceeding the recommended values.
Maintenance: Regularly inspect the motor and related components to ensure their normal operation.
Safe Operation: Follow all relevant safety standards and operating procedures to ensure the safety of personnel and equipment.
The BL2453AN standard series coreless BLDC motor, with its excellent performance and wide applicability, has become an ideal choice for drive technology. Whether in automation, robotics, or other occasions with high-performance requirements, X-TEAM motors can provide stable and reliable power output. If you need more information or want to order a BLDC motor, you can contact us in the following ways:
Telephone: +86-769-85228181
Email: chris@x-teamrc.com
