Description
The BL2453AE high temperature series coreless BLDC motor is a motor product specifically designed for high-temperature environments and high-performance applications. This motor combines advanced brushless DC technology with precise manufacturing processes to provide stable, efficient, and reliable power output. Its compact structure and excellent performance make it an ideal choice for various fields such as medical equipment, automation equipment, and aerospace.

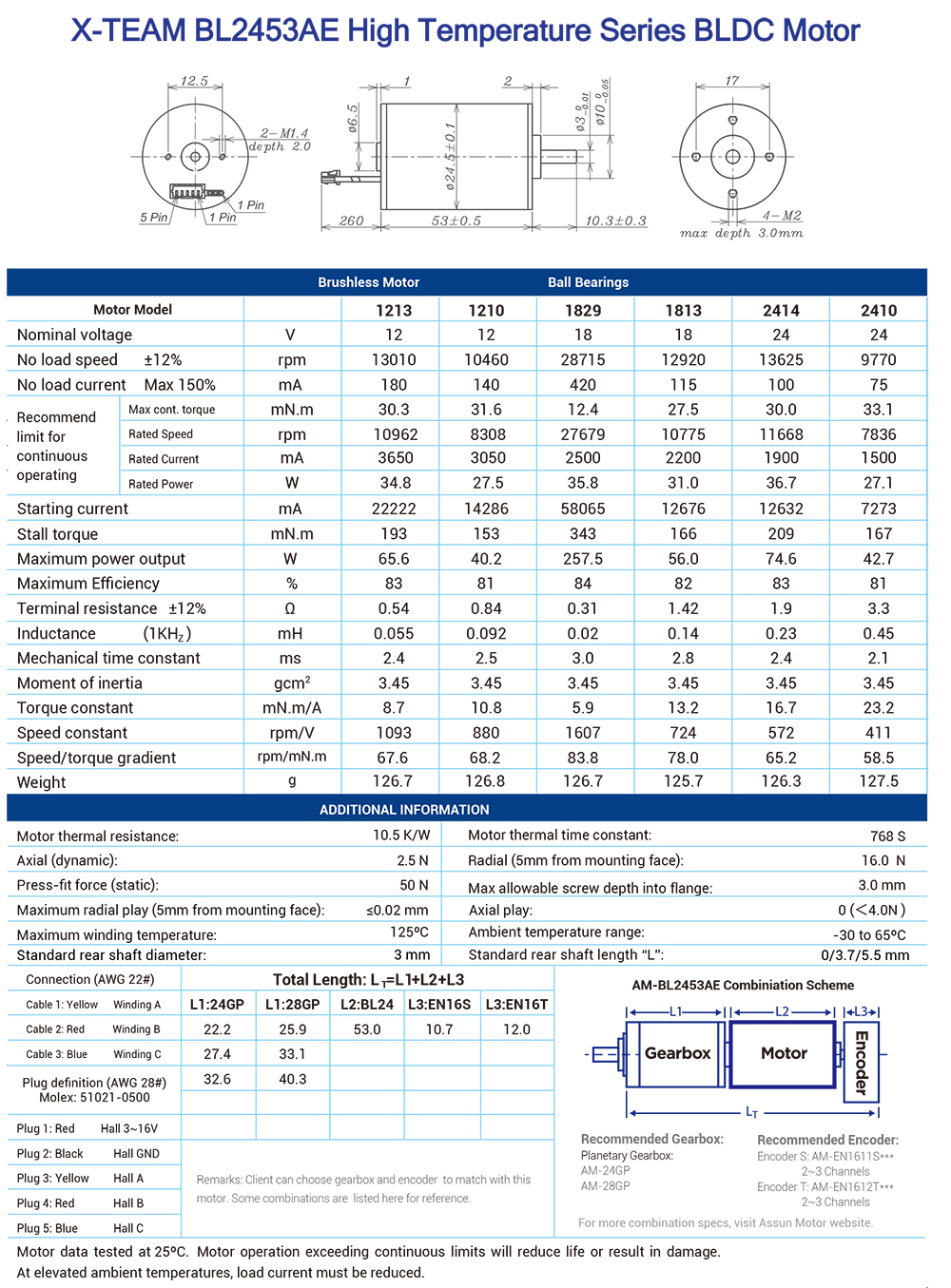

Motor Model and Specifications
A variety of specifications are available to meet different needs, including 1213, 1210, 1829, 1813, 2414, 2410, etc.
Performance Parameters
Motor Model: Rated Voltage: Supports multiple voltage levels such as 12V, 18V, or 24V to adapt to different power supply environments.
No-load Speed: Under the rated voltage, the no-load speed ranges from 9770 to 28715 rpm, with an allowable deviation of ±12%, ensuring stable output of the motor under different load conditions.
No-load Current: The maximum no-load current is 150% of the recommended value, and the specific value depends on the motor model and rated voltage to provide sufficient current margin.
Recommended Maximum Continuous Torque: Under the rated current, the recommended maximum continuous torque ranges from 12.4 to 33.1 mN.m, meeting the requirements of various high-load applications.
Rated Speed and Current: The rated speed ranges from 7836 to 27679 rpm, and the rated current ranges from 1500 to 3650 mA, ensuring the stable performance of the motor during continuous operation.
Rated Power: The rated power ranges from 27.1 to 36.7W, providing stable and efficient power support.
Maximum Power Output and Efficiency: Under allowable conditions, the maximum power output of the motor ranges from 40.2 to 257.5W, and the maximum efficiency ranges from 81% to 84%, ensuring the efficient operation of the motor.
Structural Features
Brushless Design: Adopts advanced brushless DC technology, reducing friction and wear, and improving the efficiency and lifespan of the motor. At the same time, the brushless design also reduces noise and vibration, enhancing the overall performance.
Ball Bearings: High-quality ball bearings are built-in to ensure smooth operation and low noise of the motor at high speeds. Ball bearings have excellent wear resistance and load-bearing capacity, making them suitable for various high-load applications.
Compact Structure: The motor is designed to be compact, with a small size and light weight, making it easy to install and maintain. At the same time, the compact structure also helps to improve the heat dissipation performance of the motor, ensuring stable operation in high-temperature environments.
High-precision Control: Through advanced control algorithms and sensor technology, the BL2453AE high temperature series coreless BLDC motor can achieve high-precision position, speed, and torque control.
Application Fields
Medical Equipment: This motor can be used in key parts of surgical instruments, rehabilitation equipment, etc., providing stable and precise power support.
Automation Equipment: This motor can be used in various automated assembly, transmission, and detection equipment, etc., improving production efficiency and quality.
Aerospace Field: With its high performance and compact structure, this motor has become an ideal power source for aircraft.
Precautions
Safe Operation: When operating the motor, ensure that the power supply is correctly connected and grounded to avoid the risk of electric shock. At the same time, please follow the safe operation specifications in the product manual to avoid malfunctions or damage caused by incorrect operation.
Correct Installation: Please install the motor correctly according to the steps in the product manual, and ensure that all fasteners are tightened in place. Avoid malfunctions or damage caused by improper installation.
Load Limit: Do not exceed the rated load and continuous working time of the motor to avoid damaging the motor or shortening its service life.
Ambient Temperature: Although this motor is specifically designed for high-temperature environments, it is still necessary to pay attention to reducing the load current to avoid overheating of the motor when used under extremely high-temperature conditions. When working in a high-temperature environment, ensure that the temperature of the motor does not exceed the maximum winding temperature limit (usually 125°C).
Maintenance: Regularly check the running status and wear condition of the motor, and replace damaged components in a timely manner to ensure the long-term stable operation of the motor. Also, pay attention to keeping the motor clean and dry to avoid corrosion and damage.
The BL2453AE high temperature series coreless BLDC motor, with its excellent performance and wide applicability, has become an ideal choice for drive technology. Whether in automation, robotics, or other high-performance demanding scenarios, X-TEAM motors can provide stable and reliable power output. If you need more information or want to order a BLDC motor, you can contact us in the following ways:
Tel: +86-769-85228181
E-mail: chris@x-teamrc.com
