Description
The BL2051AN standard series coreless BLDC motor (BLDC) is an efficient and reliable motor suitable for various automation and power transmission systems. Its excellent performance and design make it an ideal choice for applications such as robots, power tools, and those that require precise control and miniaturized design.

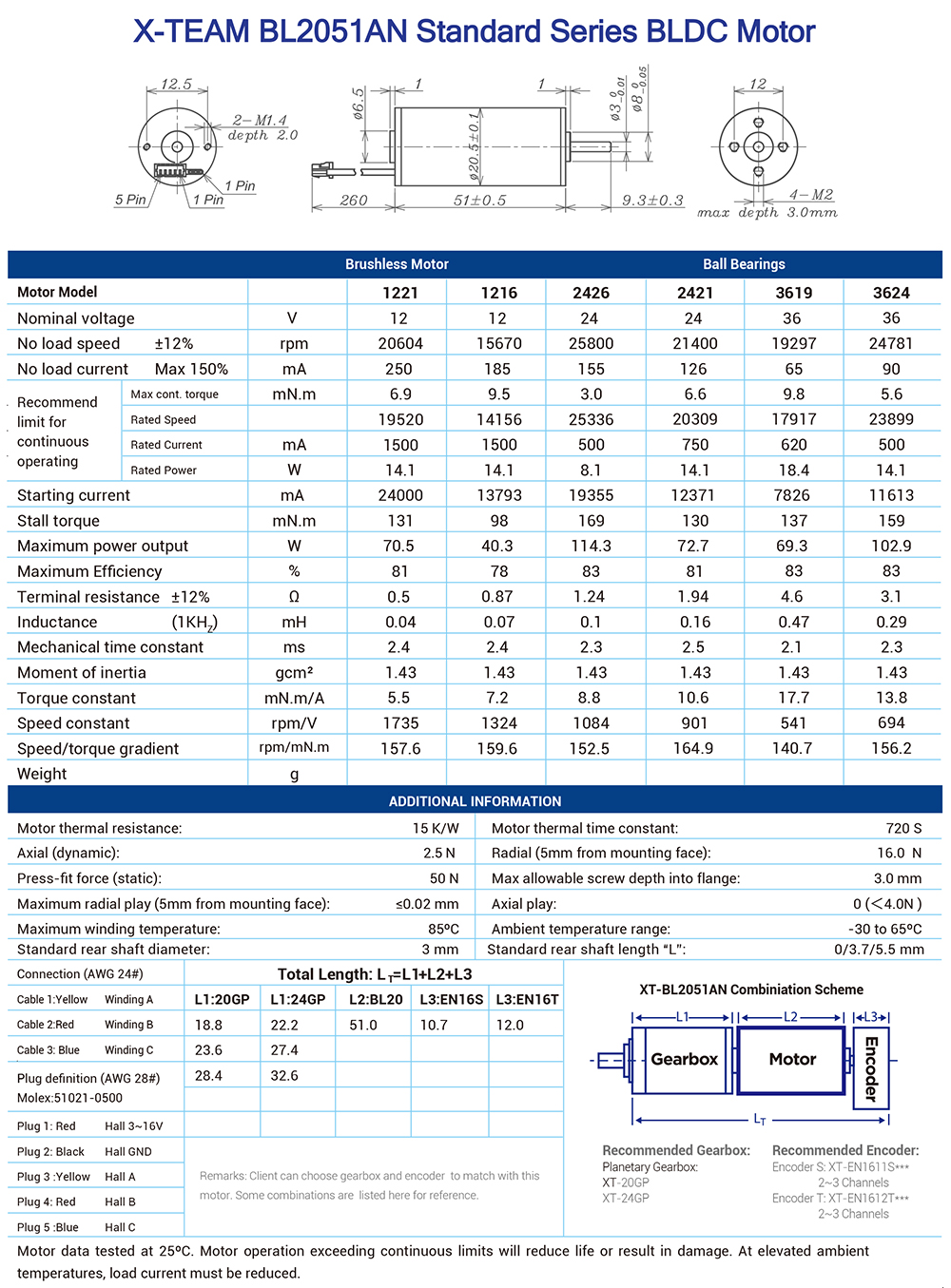

Motor Models and Specifications
X-TEAM offers various models of the BL2051AN standard series coreless BLDC motor, including 1221, 1216, 2426, 2421, 3619, and 3624. These models vary in aspects such as voltage, rotational speed, and torque to meet different application requirements.
Performance Parameters
Rated Voltage: Three rated voltage options of 12V, 24V, and 36V are provided to adapt to systems with different voltage requirements.
No-load Rotational Speed: The no-load rotational speed of each model of the motor ranges from 15,670 rpm to 25,800 rpm, providing high-speed operation capabilities.
No-load Current: The no-load current ranges from 65 mA to 250 mA, ensuring the stable operation of the motor in the no-load state.
Recommended Maximum Torque: The recommended maximum torque ranges from 3.0 mN.m to 9.8 mN.m, meeting various load requirements.
Rated Rotational Speed: The rated rotational speed ranges from 14,156 rpm to 25,336 rpm, ensuring the stable operation of the motor under the rated load.
Rated Current: The rated current is between 500 mA and 1500 mA, providing a stable current output.
Structural Features
Brushless DC Design: Adopting brushless DC technology reduces friction and wear, and improves the service life and efficiency of the motor.
Ball Bearings: Ball bearings are used to ensure that the motor has low friction and noise during high-speed operation.
Multiple Connection Methods: Multiple cable and plug options are provided to facilitate users to make connections according to their actual needs.
Compact Design: The compact structural design makes the motor easy to install and integrate into various systems.
Application Fields
Industrial Automation: The high rotational speed, high torque, and good dynamic response characteristics of the BL2051AN standard series coreless BLDC motor series can meet the requirements of robotic arms. In conveyor belt systems, the motor also needs to operate stably for a long time. The brushless design and efficient performance ensure the stable operation of the conveyor belt and reduce maintenance costs at the same time.
Smart Home: In devices such as smart door locks and smart windows, the reliability and safety of the motor are also crucial. The high-quality design and strict testing standards of this series of motors can ensure the stable operation and safe use of these smart home devices.
Small-scale Intelligent Transportation Equipment: In the field of small-scale intelligent transportation equipment, such as self-balancing scooters and electric scooters, the performance of the motor directly affects the power and battery life of the equipment.
Precautions
Operation Safety: When operating the motor, please ensure that you follow the relevant safety regulations to avoid electric shock or mechanical injury.
Proper Installation: Please install the motor correctly according to the instructions in the product manual to ensure the stable operation of the motor.
Load Control: During the operation of the motor, please avoid exceeding its rated load to prevent damage to the motor or shortening its service life.
Temperature Control: Please ensure that the motor operates within the allowable temperature range to avoid performance degradation or damage caused by overheating.
The BL2051AN standard series coreless BLDC motor, with its excellent performance and wide applicability, has become an ideal choice for drive technology. Whether in automation, robotics, or other occasions with high-performance requirements, X-TEAM motors can provide stable and reliable power output. If you need more information or want to order a BLDC motor, you can contact us in the following ways:
Telephone: +86-769-85228181
Email: chris@x-teamrc.com
