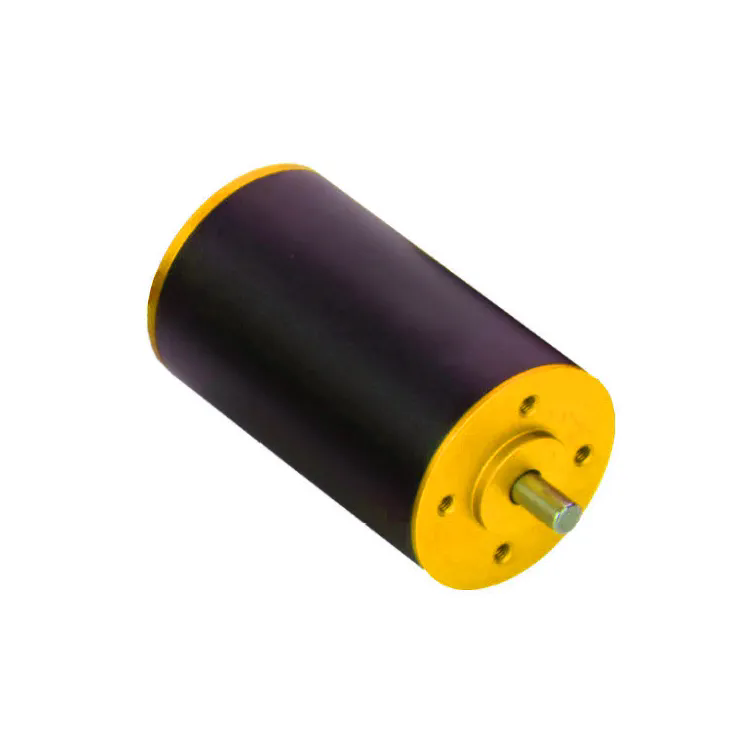

BD3270AN speed driver integrated series coreless BLDC motor

Stable high speed, low internal resistance, high speed hollow cup brushless DC motors for Communications, Precision Engineering, Industrial Automation, Environmental Surveillance, Medical Equipment, Robotics

Description

X-TEAM speed driver integrated series coreless BLDC motor, according to the size of the motor number, the weight also decreases from large to small, among which the BD3270AN model brushless motor ranks second in weight in this series of motors. With its excellent performance and diverse model selection, it has shown strong competitiveness in many application scenarios. This article will introduce the models, performance parameters, structural characteristics and applications of this series of motors in detail.

BD3270AN speed driver integrated series coreless BLDC motor

Model selection

X-TEAM BD3270AN series BLDC motors provide a variety of models for users to choose from, including 1210, 1207, 2412, 2409, 2407 and 2406. These models have their own characteristics in size, power and performance, and can meet the needs of different fields. Users can choose the appropriate model according to their actual application scenarios to achieve the best use effect.

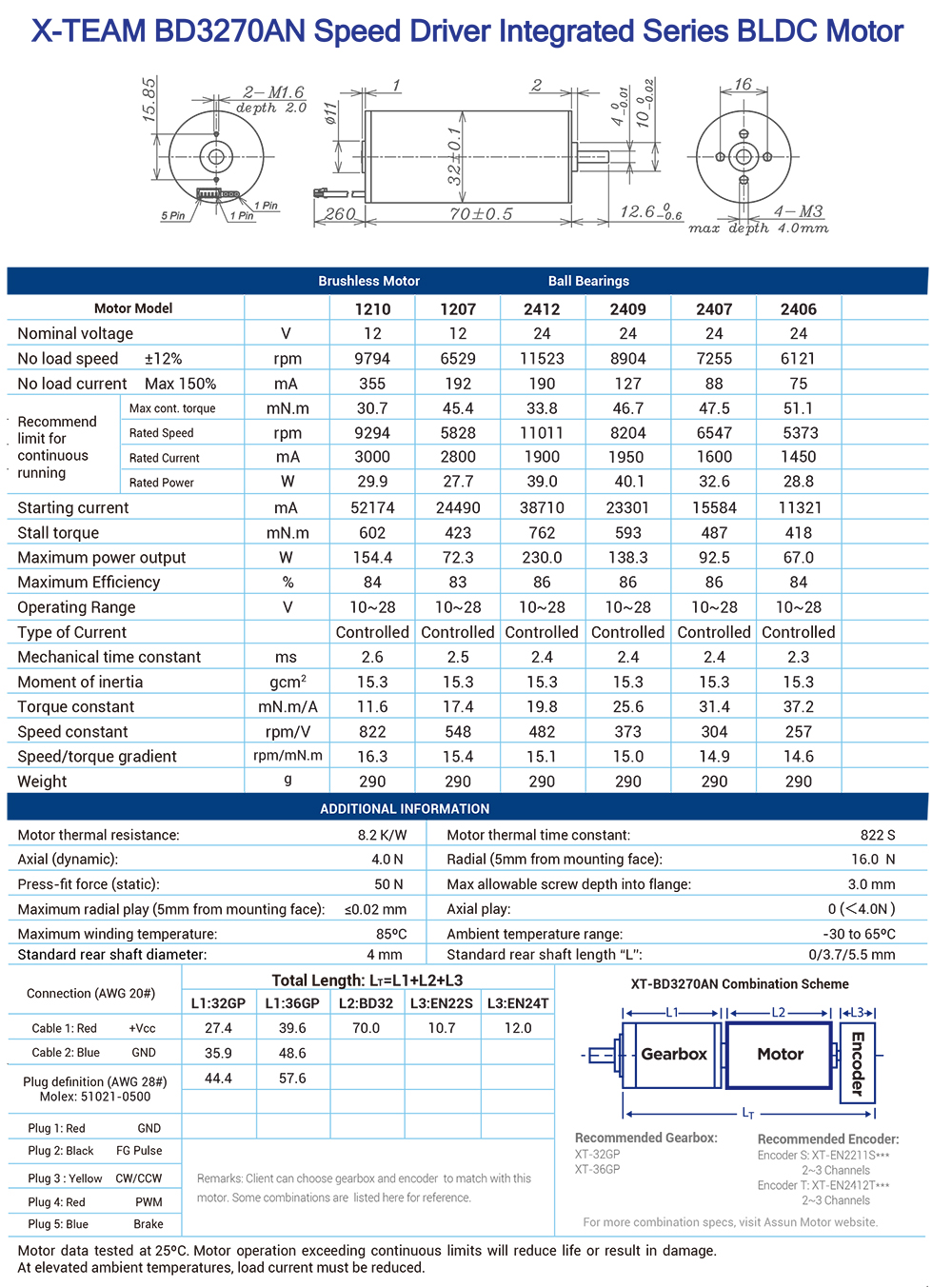

Performance parameters

Rated voltage: The rated voltage range of this series of motors is wide, including 12V and 24V, suitable for different power supply environments.

No-load speed: Under no-load conditions, the motor can reach a speed of 9794 to 11523 rpm (revolutions per minute), depending on the model. This high-speed performance makes the motor perform well in applications that require fast response.

Maximum continuous torque: The motor’s maximum continuous torque ranges from 30.7 to 51.1 mN.m, which can meet the needs of different load conditions.

Maximum power output: The motor’s maximum power output can reach 230.0W, ensuring stable operation of the motor under high load.

Maximum efficiency: The maximum efficiency of this series of motors can reach 86%, effectively reducing energy consumption and improving energy utilization.

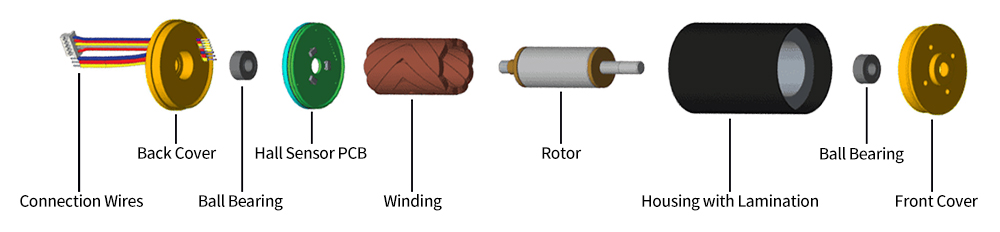

Structural features

Compact design: The X-TEAM BD3270AN series BLDC motor adopts a compact structural design with a small size, which is easy to install and carry. At the same time, its depth is only 2.0mm (some models may vary), which is suitable for applications with limited space.

Ball bearings: The motor adopts a ball bearing design, which improves the smoothness and durability of operation and reduces noise and vibration.

Diversified interfaces: The motor provides a variety of interface options, such as the XT-BD3270AN combination solution, Molex 51021-0500 and other plug definitions, which are convenient for users to choose and connect according to actual needs.

High-standard materials: The motor is made of high-standard materials to ensure its stable operation and long life in harsh environments.



Application areas

Automation equipment: On the automated production line, this series of motors is used as a driving element to provide a strong guarantee for the fast and accurate operation of the equipment.

Medical equipment: In medical equipment, this series of motors is used to drive surgical instruments, rehabilitation equipment, etc., ensuring the stability and safety of the equipment.

Aerospace: In the field of aerospace, this series of motors has become one of the ideal driving elements with its high performance and compact design.

Smart home: With the popularity of smart homes, this series of motors has also been widely used in smart curtains, smart door locks and other equipment, providing users with a convenient and comfortable life experience.

Speed driver integrated series coreless BLDC motor

Precautions

During use, the rated working conditions of the motor should be observed to avoid overload operation.

Regularly check the operating status of the motor to detect and handle abnormal conditions in a timely manner.

When used in a high temperature environment, the load current should be appropriately reduced to prevent the motor from overheating.



BD3270AN speed driver integrated series coreless BLDC motor has become one of the preferred choices in the industrial and automation fields due to its excellent performance, wide range of applications and flexible combination options. If you need more information about this series of motors, you can contact us through the following methods to obtain more details.

Tel: +86-769-85228181

Email: chris@x-teamrc.com
