BD2845AN speed driver integrated series coreless BLDC motor

Description

X-TEAM BD2845AN series integrated BLDC motor is a high-performance brushless DC motor designed for various application requirements. This series of motors integrates a speed driver and provides a variety of models and technical specifications to meet the needs of different users.

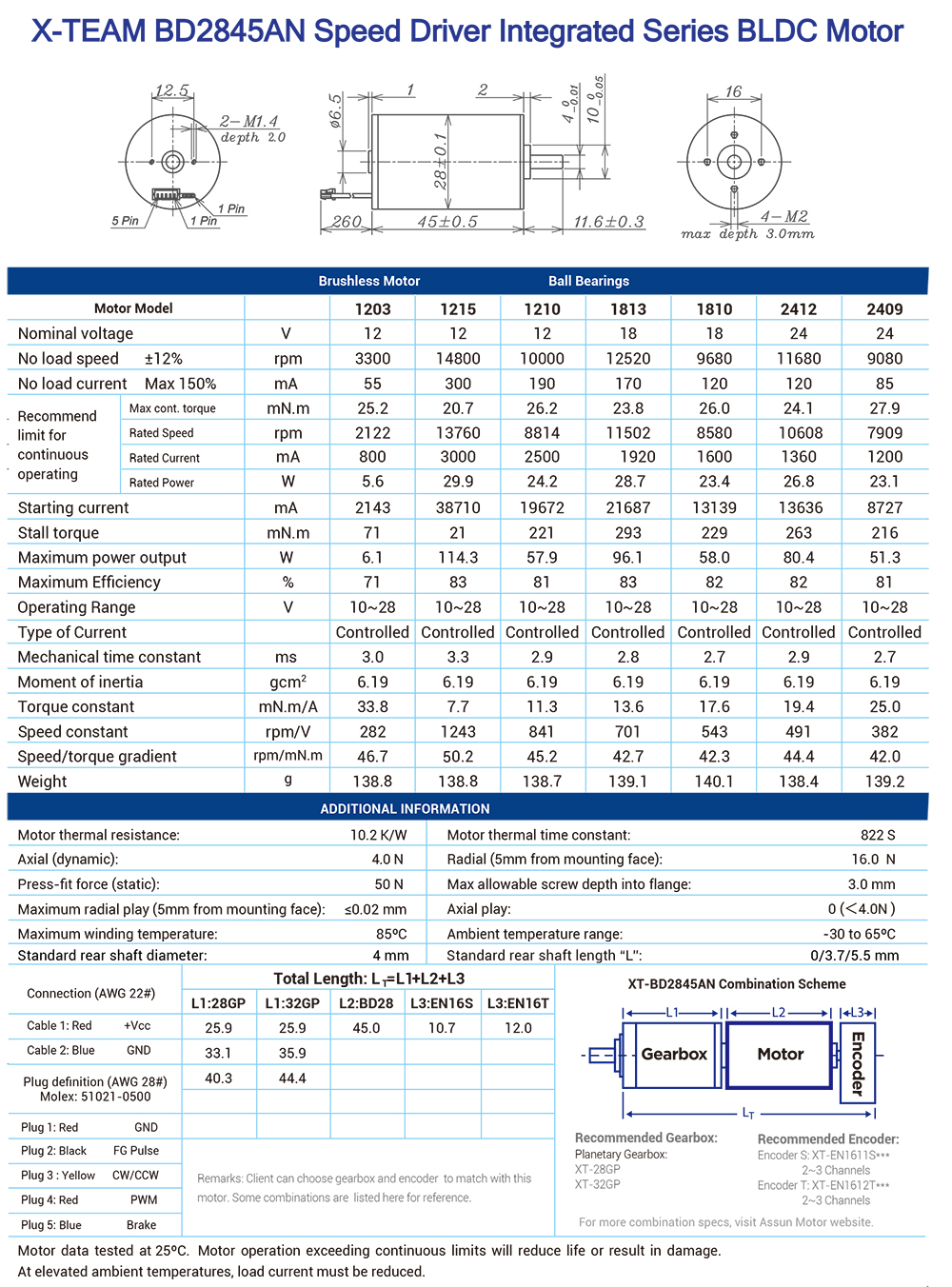

Motor Models and Technical Specifications

X-TEAM BD2845AN series motors provide a variety of models for users to choose from, including 1203, 1215, 1210, 1813, 1810, 2412 and 2409. These models have different characteristics in terms of rated voltage, no-load speed, no-load current, maximum continuous torque, etc. to meet the needs of different application scenarios.

In terms of technical specifications, the rated voltage of this series of motors ranges from 12V to 24V, the no-load speed can reach 3300rpm to 14800rpm, and the maximum continuous torque is between 20.7mN.m and 27.9mN.m. In addition, the motor also has a high efficiency, with a maximum efficiency of 83%, ensuring efficient and stable operation.

Structural features and performance advantages

Integrated design: X-TEAM BD2845AN series motors adopt an integrated design, which closely combines the speed drive with the motor, reduces the connection components and failure points, and improves the reliability and stability of the system.

Brushless DC technology: The brushless DC technology is adopted, which has the advantages of low noise, low vibration, and long life. At the same time, the brushless design also reduces maintenance costs and increases the service life of the motor.

Ball bearing: The motor adopts ball bearing design, which has the characteristics of smooth operation, high precision, and wear resistance. This ensures the stable operation and excellent performance of the motor under various load conditions.

Diverse interfaces and accessories: This series of motors provides a variety of interface and accessory options, such as XT-BD2845AN combination solution, Molex 51021-0500 plug definition, etc. Users can choose the appropriate interface and accessories according to their actual needs to meet specific application requirements.

Application field

X-TEAM BD2845AN series integrated BLDC motors are widely used in various fields, including but not limited to automation equipment, medical equipment, aerospace, smart home, etc. Its high performance, high reliability and diverse model selection make the motor an ideal choice for various applications.

Additional information and precautions

Thermal resistance and thermal time constant: The thermal resistance of the motor is 10.2K/W and the thermal time constant is 822S. These parameters help users understand the heat dissipation performance and temperature stability of the motor.

Mechanical properties: The axial force of the motor is 4.0N and the radial force (5mm from the mounting surface) is 16.0N. These mechanical performance parameters ensure the stability and reliability of the motor during installation and use.

Gearbox and encoder options: Users can choose matching gearboxes (such as XT-28GP, XT-32GP, etc.) and encoders (such as XT-EN1611S, XT-EN1612T, etc.) according to actual needs. These accessories further expand the application range and functions of the motor.

Precautions for use: During use, the rated working conditions of the motor should be observed to avoid overload operation. At the same time, please note that the motor data is tested at 25℃. Exceeding the continuous use limit will shorten the service life or cause damage. When used in a high temperature environment, the load current should be appropriately reduced to prevent the motor from overheating.

X-TEAMBD2845AN speed driver integrated series coreless BLDC motor has become one of the preferred choices in the industrial and automation fields due to its excellent performance, wide range of applications and flexible combination options. If you need more information about this series of motors, you can contact us through the following methods to obtain more details.
