BD2453AN speed driver integrated series coreless BLDC motor

Description

X-TEAM BD2453AN speed driver integrated series coreless BLDC motor is a brushless DC motor designed for high-performance applications. This series of motors integrates a speed driver and provides a variety of models and specifications to meet the needs of different users. The following is a detailed introduction to this series of motors.

Product Overview

The X-TEAM BD2453AN series motors use advanced brushless DC technology and have the advantages of high efficiency, low noise, and long life. The motor has a built-in speed driver, which reduces the complexity of the external control circuit and improves the stability and reliability of the system. At the same time, this series of motors also provides a variety of interface and accessory options for users to connect and configure.

Models and Specifications

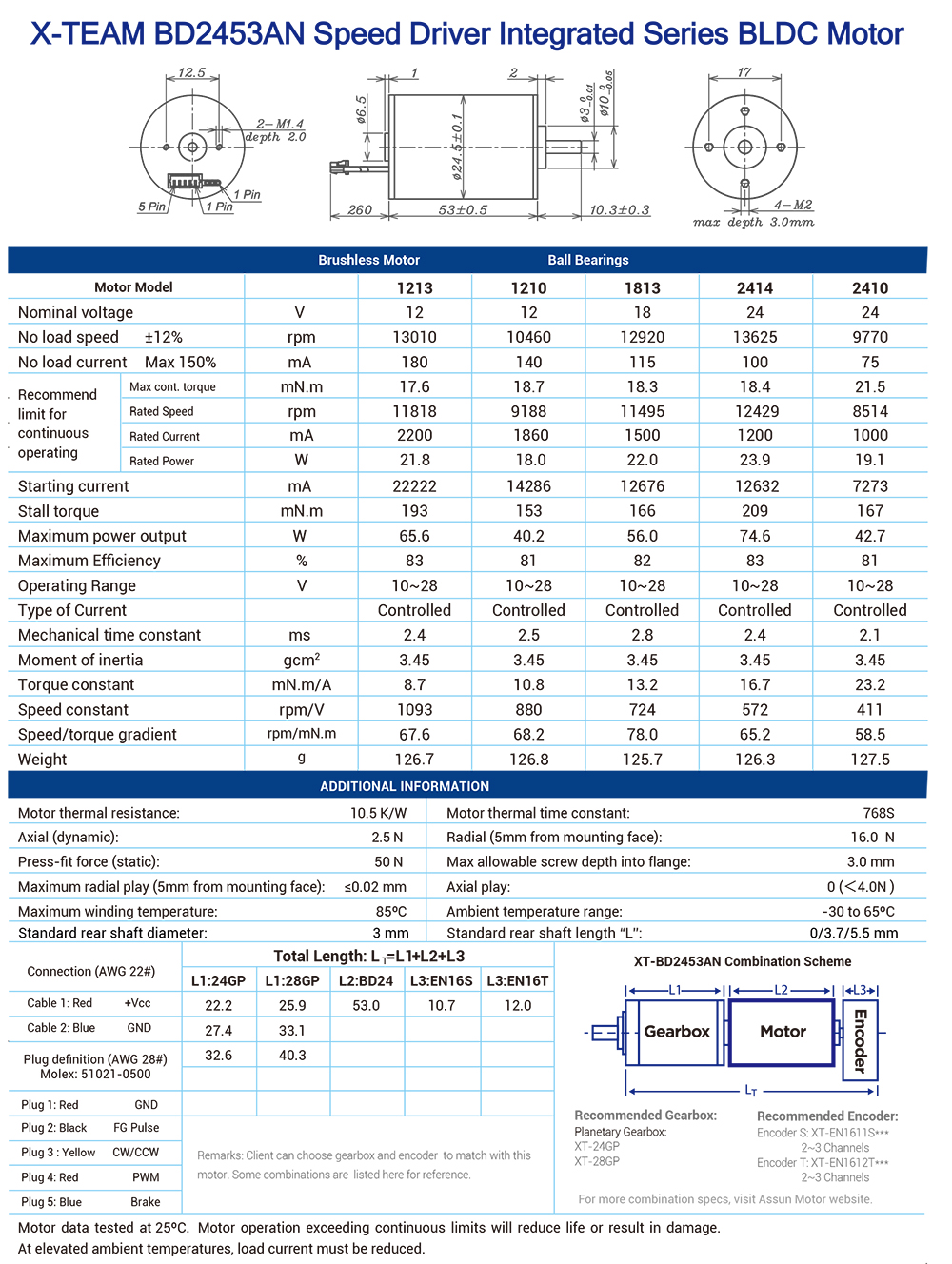

The X-TEAM BD2453AN series motors provide a variety of models for users to choose from, including 1213, 1210, 1813, 2414 and 2410. These models have different characteristics in terms of rated voltage, no-load speed, no-load current, maximum continuous torque, etc. to meet the needs of different application scenarios. For example, the 2414 model has a rated voltage of 24V, a no-load speed of up to 13625rpm, and a maximum continuous torque of 18.4mN.m, which is suitable for applications that require high speed and high torque.

Performance parameters

No-load speed: The no-load speed of each model of motor fluctuates within a certain range, depending on the rated voltage and motor type. Users can choose the appropriate motor model according to actual needs.

No-load current: Under no-load conditions, the current consumption of the motor is small, but it will increase slightly with the increase of the rated voltage.

Maximum continuous torque: The maximum torque that the motor can withstand under continuous working conditions is one of the important indicators for evaluating motor performance. The maximum continuous torque of the X-TEAM BD2453AN series motor is between 17.6mN.m and 21.5mN.m.

Efficiency: The efficiency of the motor is an important indicator to measure its energy conversion ability. The maximum efficiency of this series of motors can reach 83%, ensuring efficient and stable operation.

Operating range: The operating range of the motor includes rated voltage, operating temperature and ambient temperature. X-TEAM BD2453AN series motors have a wide range of operation and are suitable for a variety of application scenarios.

Structural features

Integrated design: The motor integrates a speed driver, reducing external connection components and failure points, and improving the stability and reliability of the system.

Brushless design: The brushless DC technology is used to reduce maintenance costs and increase the service life of the motor.

Ball bearing: The motor adopts a ball bearing design, which has the characteristics of smooth operation, high precision, and wear resistance.

Multiple interfaces and accessories: A variety of interface and accessory options are provided, such as the XT-BD2453AN combination solution, Molex 51021-0500 plug definition, etc., which are convenient for users to connect and configure.

Application field

X-TEAM BD2453AN series integrated BLDC motors are widely used in various fields, including but not limited to automation equipment, medical equipment, aerospace, smart home, etc. Its high performance, high reliability and diverse model selection make the motor an ideal choice in various applications.

Additional information

Thermal resistance and thermal time constant: The thermal resistance of the motor is 10.5K/W, and the thermal time constant is 768S. These parameters help users understand the heat dissipation performance and temperature stability of the motor.

Mechanical properties: The axial force of the motor is 2.5N, and the radial force (5mm from the mounting surface) is 16.0N. These mechanical performance parameters ensure the stability and reliability of the motor during installation and use.

Recommended gearbox and encoder: Users can choose matching gearboxes (such as XT-24GP, XT-28GP, etc.) and encoders (such as XT-EN1611S, XT-EN1612T, etc.) according to actual needs. These accessories further expand the application range and functions of the motor.

Precautions for use: During use, the rated operating conditions of the motor should be observed to avoid overload operation. At the same time, note that the motor data is tested at 25℃, and exceeding the continuous use limit will shorten the service life or cause damage. When used in a high temperature environment, the load current should be appropriately reduced to prevent the motor from overheating.

BD2453AN speed driver integrated series coreless BLDC motor has become one of the preferred choices in the industrial and automation fields due to its excellent performance, wide range of applications and flexible combination options. If you need more information about this series of motors, you can contact us through the following methods to obtain more details.
