8928 Brushless motor for agriculture drone

X-TEAM 8928 Brushless motor for agriculture drone

Description

The 8928 Brushless motor for agriculture drone is a high-performance permanent magnet brushless DC motor (BLDC), specifically designed for various high-performance applications. With its rated KV value of 100KV and strong compatibility with electronic speed controllers (ESC), it performs excellently in all scenarios that require efficient energy conversion and powerful power. Combining advanced technology and a robust and durable design, the 8928 Brushless motor for agriculture drone can provide reliable and continuous high-performance operation.

8928 Brushless motor for agriculture drone

Performance Parameters

Model: XTA8928

Voltage: Supports 10-12S LiPo batteries

KV Value: 100KV

No-load Current: 1.4A at a voltage of 7.4V

Maximum Power: Up to 3150W

Weight: 995g

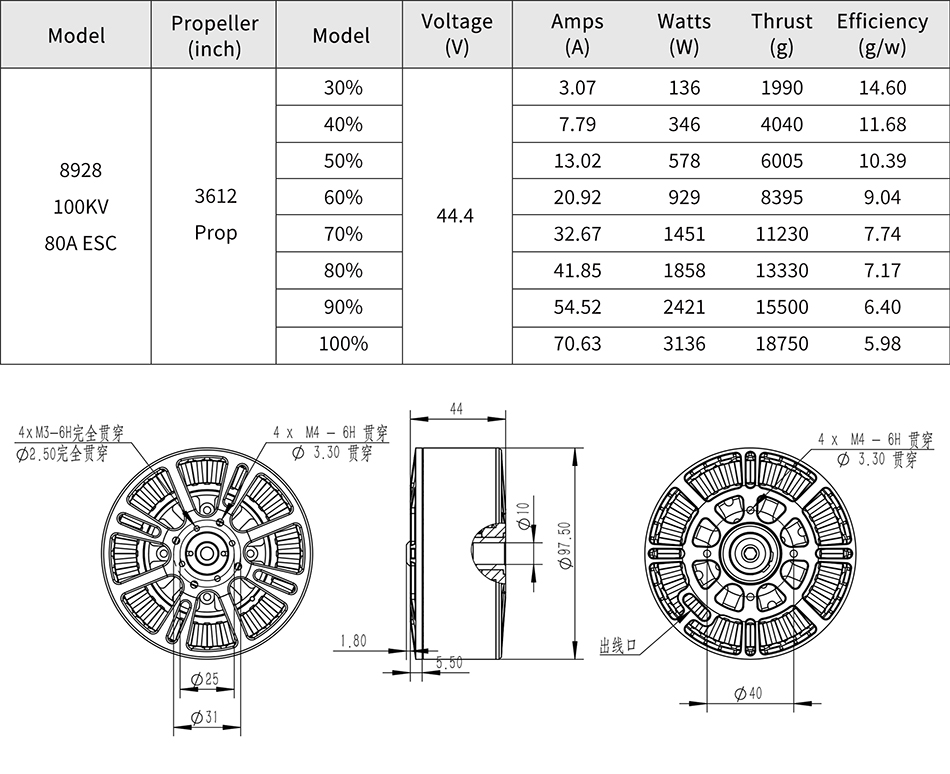

Dimensions: Φ97.5x44mm

Rotor End: 4×M3 threaded holes are distributed on the circumference with a diameter of Φ25mm.

Stator End: 4×M4 threaded holes are distributed on the circumference with a diameter of Φ40mm.



Structural Features

The 8928 Brushless motor for agriculture drone uses advanced permanent magnet materials and an optimized electromagnetic design to ensure efficient energy conversion and low losses. Its sturdy housing and precise manufacturing process enable it to maintain stable performance in various harsh environments. In addition, the motor is equipped with rotor and stator mounting holes that are easy to install and maintain, making it convenient for users to integrate and apply.

8928 Brushless motor for agriculture drone

Application Fields

Drone Propulsion Systems: Suitable for large multi-rotor drones and vertical takeoff and landing aircraft (VTOL), providing strong lifting force and rapid response.

Industrial Automation: Drives equipment such as robotic arm joints, high-speed spindles, and conveyor belts to meet the requirements of high-precision control.

Electric Vehicles: As the power core of electric scooters and AGVs (Automated Guided Vehicles), it balances battery life and power output.

Special Equipment: Adapted to customized scenarios such as underwater thrusters and agricultural plant protection drones.



Precautions

Power Supply Matching: Strictly use 10-12S lithium polymer batteries (37.0V-50.4V). Overvoltage may cause the motor to burn out.

Heat Dissipation Management: When operating continuously under high load, install a cooling fan or a water cooling system to ensure that the motor temperature is ≤80°C. Avoid long-term stalling (such as when the propeller is stuck), as it may trigger the overheat protection.

Operation Specifications: Check the insulation of the windings before the first power-on to prevent the risk of short circuits. Do not disassemble the internal structure of the motor. Maintenance by non-professionals may lead to demagnetization of the permanent magnets or damage to the coils.



If you are interested in the 8928 Brushless motor for agriculture drone or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us in the following ways:

Tel: +86-769-85228181

Email: chris@x-teamrc.com

Additional information

Product model

XTA8928

Voltage

10-12S liPo

KV

100KV

No Load Current

1.4A (7.4V)

Max Power

3150W

Weight

995g

Size

Φ97.5x44mm

Rotor mounting holes

Φ25mm 4xM3

Stator mounting holes

Φ40mm 4xM4
