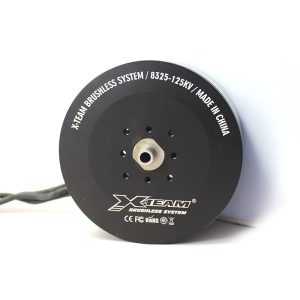

8325B Brushless motor for agriculture drone

X-TEAM 8325B Brushless motor for agriculture drone

Description

The 8325B Brushless motor for agriculture drone is a high – performance brushless DC motor, especially suitable for equipment that requires high efficiency and strong thrust. Whether it is a model aircraft, a multi – rotor drone, or other scenarios demanding powerful power, this motor can provide stable and strong power support. It can not only meet the demand for speed but also ensure long – term stable operation while guaranteeing efficiency. Whether users need flight control precision or higher power output, the 8325B Brushless motor for agriculture drone can achieve them well, making it suitable for various application scenarios that require high thrust and quick response.

8325B Brushless motor for agriculture drone

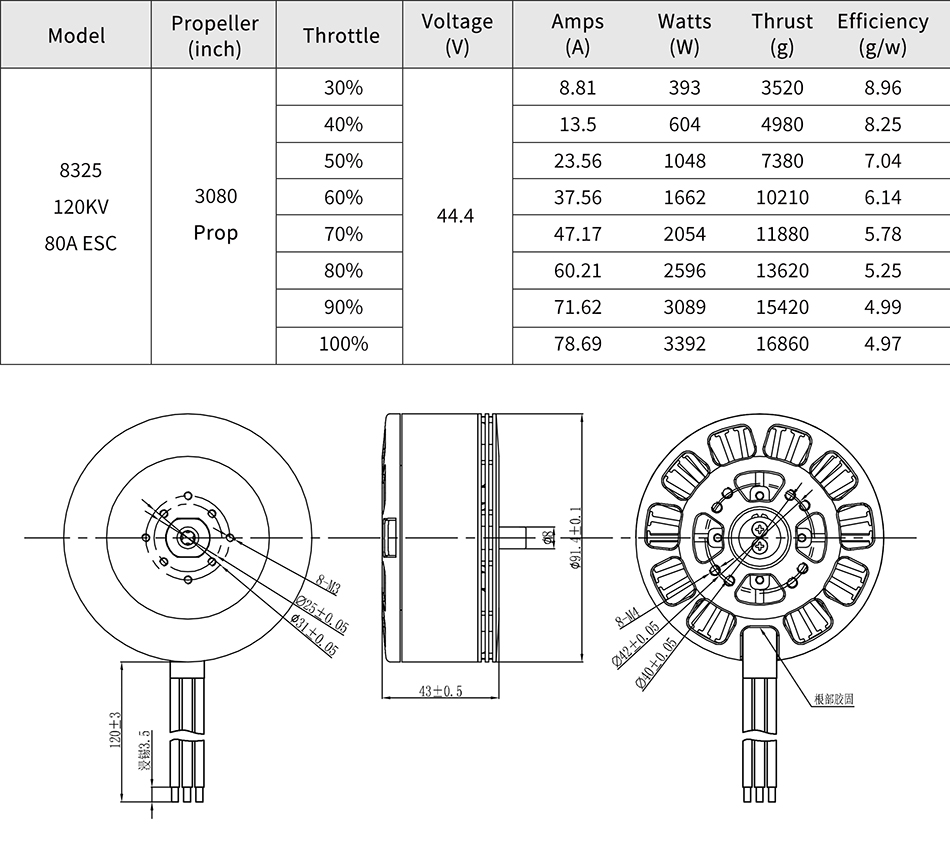

Performance Parameters

Model: XTA8325B

Voltage: 10 – 12S LiPo

Number of Windings per Phase (KV): 120KV

No – load Current: 1.6A

Maximum Power: 4300W (for 300S)

Weight: 830g

Dimensions: Φ91.4x43mm



Structural Features

Ultra – high Power Output: With a peak power of 4300W, it can meet the high – torque requirements of heavy – duty drones or industrial equipment.

Multi – interface Compatibility: The dual – rotor and dual – stator mounting holes support various mechanical connection methods such as gear transmission and direct drive.

Optimized Heat Dissipation: The aluminum alloy housing combined with the internal air duct design effectively controls the temperature rise, enabling long – term high – load operation.

8325B Brushless motor for agriculture drone

Application Fields

Model Aircraft and Drones: It provides strong power and efficient energy conversion, suitable for various high – performance model applications.

Power Tools: Such as brushless electric drills and cutters, which require high torque and efficiency.

Robots and Robotic Arms: It offers precise control and quick response.

Solar Tracking Systems: Utilize its high efficiency to quickly adjust the direction of solar panels when sunlight changes.



Precautions

Safe Use: Please ensure to use it within the specified voltage range and avoid over – voltage or under – voltage operations.

Heat Dissipation: During use, ensure good heat dissipation of the motor and avoid overheating caused by long – term high – load operation.

Installation: During installation, ensure that the rotor and stator are concentric to avoid vibration and noise caused by eccentricity.

Maintenance: Regularly check the operating status of the motor, clean the dust and debris on the windings to extend its service life.



If you are interested in the 8325B Brushless motor for agriculture drone or need more product information, please feel free to contact us. We are committed to providing you with high – quality products and services to meet your needs. Whether in automation, robotics, or other high – performance application scenarios, X – TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us in the following ways:

Tel: +86 – 769 – 85228181

Email: chris@x – teamrc.com

Additional information

Product model

XTA8325B

Voltage

10-12S liPo

KV

120KV

No Load Current

1.6A

Max Power

4300W (300S)

Weight

830g

Size

Φ91.4x43mm

Rotor mounting holes

Φ25mm 4xM3, Φ31mm 4xM3

Stator mounting holes

Φ40mm 4xM4, Φ42mm 4xM4
