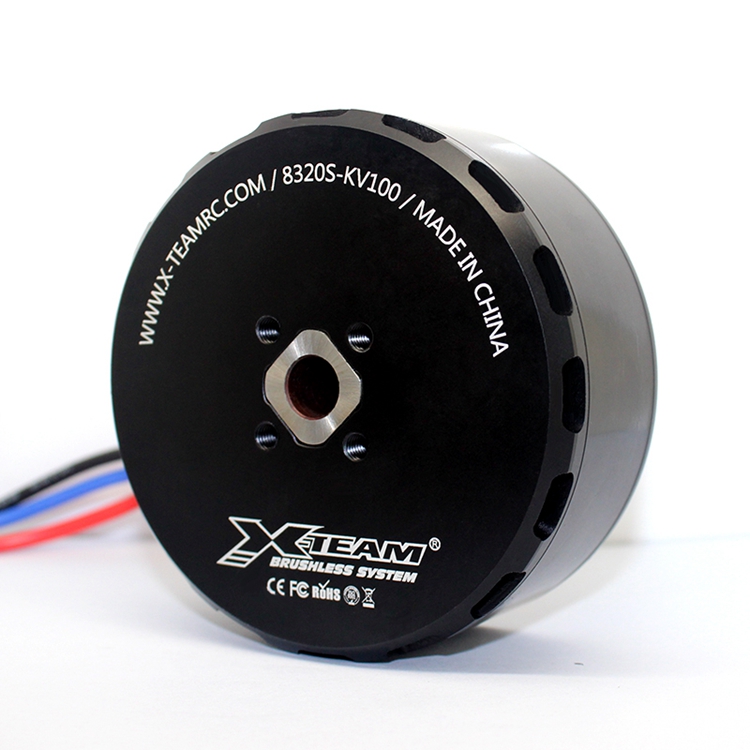

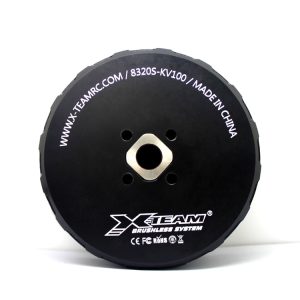

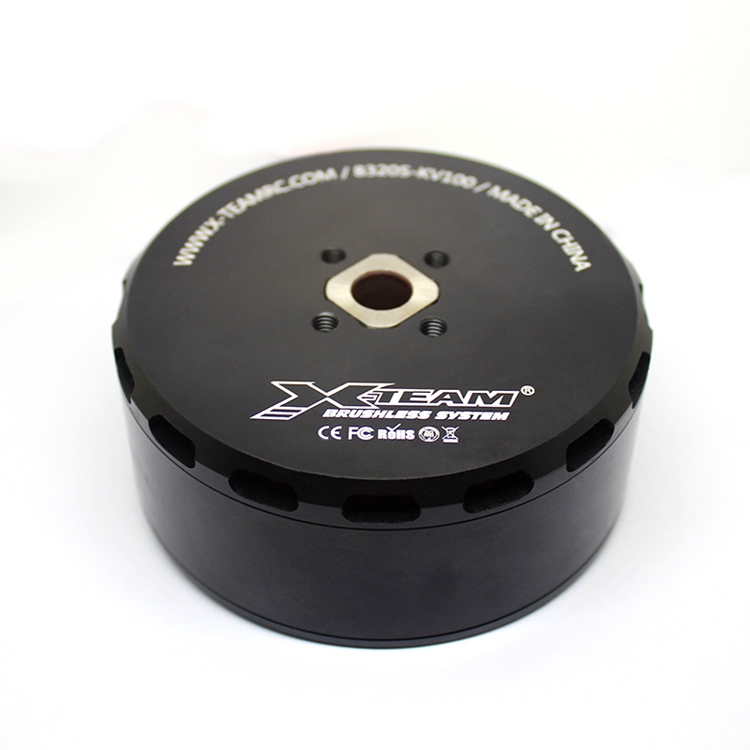

8320B Brushless motor for agriculture drone

X-TEAM 8320B Brushless motor for agriculture drone

Description

The 8320B Brushless motor for agriculture drone is a high-performance permanent magnet external rotor sensorless Brushless Direct Current (BLDC) motor, suitable for various professional applications. It comes in two versions with KV values of 100KV and 120KV, and is compatible with 10-12S LiPo batteries. The maximum output power can reach 3000W (lasting for 300 seconds). The motor is lightweight, weighing only 668g, and has a compact size (Φ91.4x38mm), making it suitable for use in environments with limited space.

8320B Brushless motor for agriculture drone

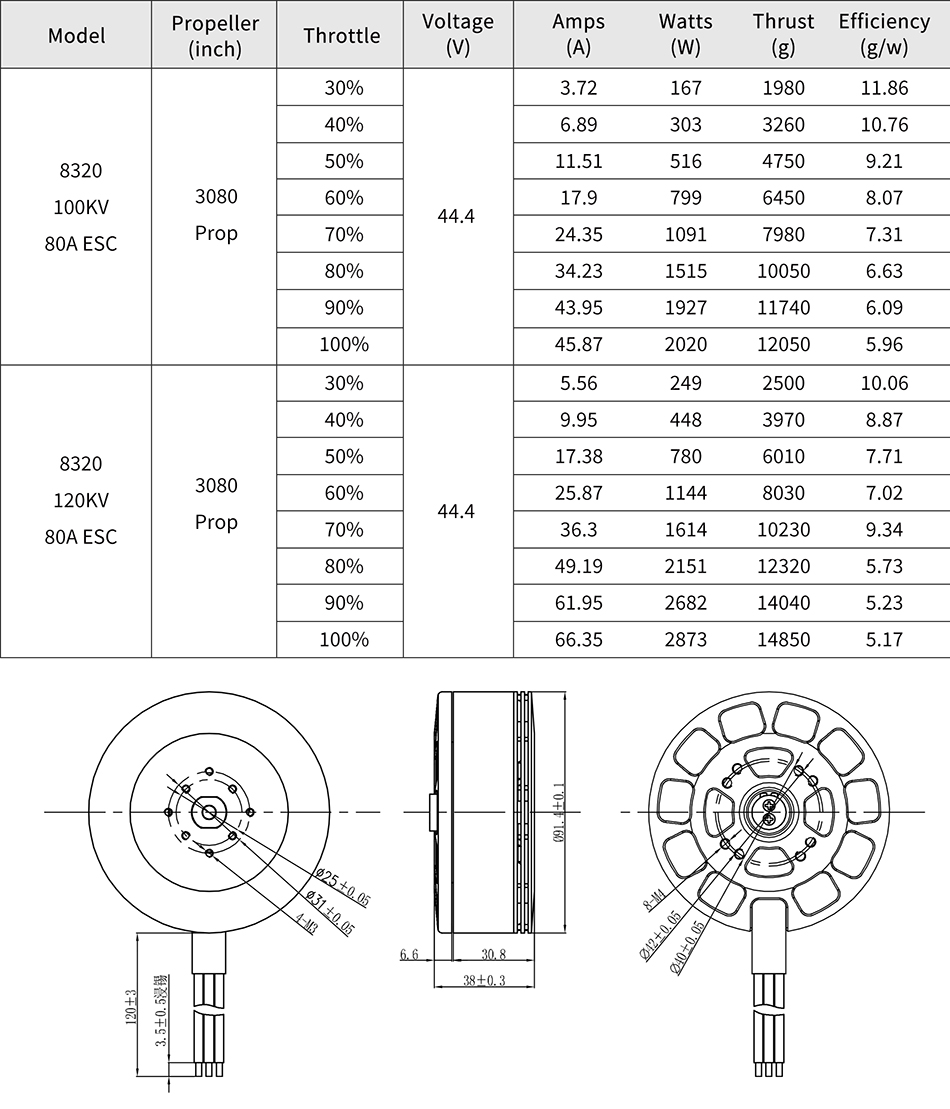

Performance Parameters

Model: XTA8320B

Voltage: 10-12S LiPo

KV Value: 100KV, 120KV

No-load Current: 0.9A (at 7.4V)

Maximum Power: 3000W (lasting for 300 seconds)

Weight: 668g

Dimensions: Φ91.4x38mm



Structural Features

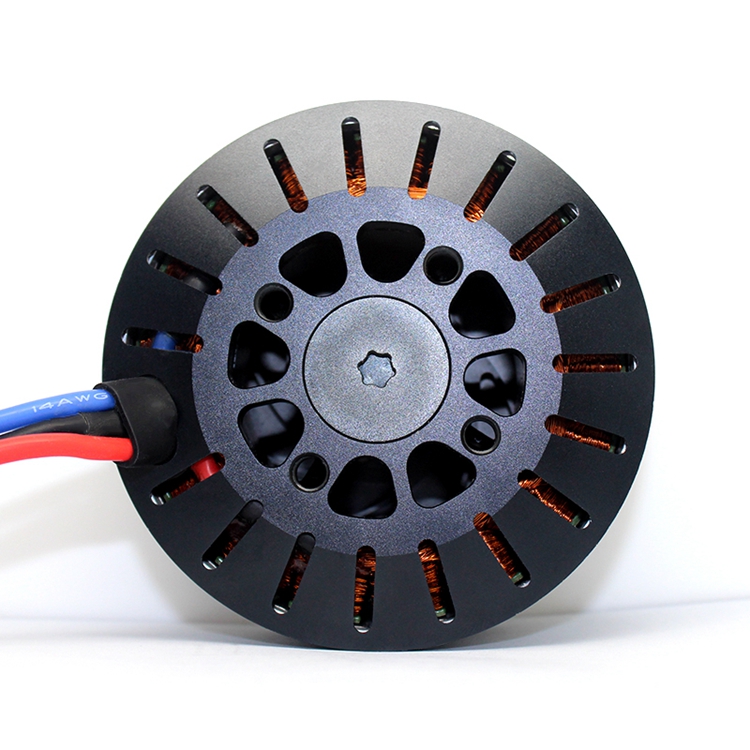

Stator Mounting Holes: Φ40mm 4xM4 to ensure a stable installation.

Rotor Mounting Holes: Φ25mm 4xM3, Φ31mm 4xM3, providing multiple installation options to meet different application requirements.

Compact Design: The motor is small in size and light in weight, making it easy to integrate into various devices.

High Efficiency: High-quality materials and advanced manufacturing processes are adopted to ensure the efficient operation of the motor.

8320B Brushless motor for agriculture drone

Application Fields

Drones: Provides strong power, supporting long-time flights and complex maneuvers.

Power Tools: Such as electric drills, cutting machines, etc., improving work efficiency and service life.

Robots: Serves as a power source that provides precise control and quick response for robots.

Other Professional Applications: Such as model aircraft, model ships, vehicle-mounted equipment, etc.



Precautions

Safe Use: Please ensure that the motor is used within the specified voltage range, and avoid overvoltage or undervoltage operations.

Heat Dissipation: During use, ensure that the motor has good heat dissipation conditions, and avoid overheating caused by long-term high-load operation.

Installation: When installing the motor, ensure that the stator and the rotor are concentric to avoid vibration and noise caused by eccentricity.

Maintenance: Regularly check the operating status of the motor, clean the dust and debris on the windings, keep the motor clean and dry, and extend its service life.



If you are interested in the 8320B Brushless motor for agriculture drone or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us in the following ways:

Tel: +86-769-85228181

Email: chris@x-teamrc.com

Additional information

Product model

XTA8320B

Voltage

10-12S liPo

KV

100KV, 120KV

No Load Current

0.9A (7.4V)

Max Power

3000W (300S)

Weight

668g

Size

Φ91.4x38mm

Stator mounting holes

Φ40mm 4xM4

Rotor mounting holes

Φ25mm 4xM3, Φ31mm 4xM3
