8320 Brushless motor for agriculture drone

X-TEAM 8320 Brushless motor for agriculture drone

Description

The 8320 Brushless motor for agriculture drone is a high-performance brushless DC (BLDC) motor, offering two versions with KV values of 100KV and 120KV to meet different application requirements. With an advanced design and a compact structure, it weighs only 620 grams and can achieve a maximum output power of 3000 watts, making it highly suitable for high-performance power systems.

8320 Brushless motor for agriculture drone

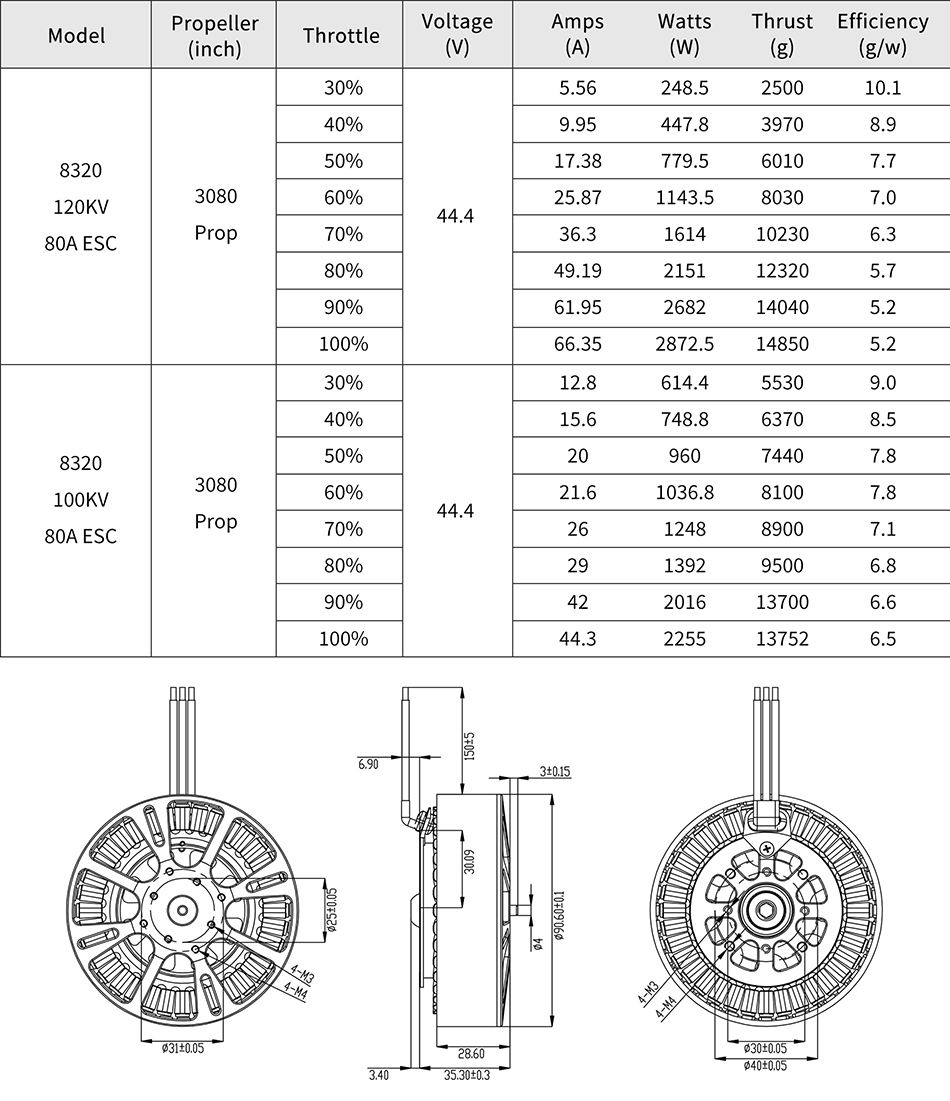

Performance Parameters

Product Model: XTA8320

Voltage Range: Supports 10-12S LiPo batteries

KV Value: Two options of 100KV and 120KV are provided to adapt to different rotational speed requirements.

No-load Current: 1.2A at a voltage of 7.4V

Maximum Power: 3000W (lasting for 300 seconds)

Weight: 620 grams

Dimensions: Φ90.6×35.3 mm

Rotor Mounting Holes: 30mm, with 4xM3 threads

Stator Mounting Holes: Φ40mm, with 4xM4 threads



Structural Features

The 8320 Brushless motor for agriculture drone, a brushless motor specifically designed for agricultural drones, adopts advanced permanent magnet materials and an optimized electromagnetic structure, ensuring efficient energy conversion and low losses. The motor’s housing is sturdy and durable, and the manufacturing process is sophisticated, enabling stable operation even in harsh environments. In addition, the design of the rotor and stator mounting holes of the motor is simple, making installation and maintenance very convenient, and facilitating users to quickly integrate it into the drone system. For the needs of agricultural drones, this motor is not only durable but also capable of providing reliable performance, contributing to more efficient agricultural operations.

8320 Brushless motor for agriculture drone

Application Fields

Model Aircraft and Drones: As a power source, it provides strong thrust for fixed-wing model aircraft, multi-rotor drones, etc., meeting the task requirements of long-duration flights, highly maneuverable flights, and heavy-load takeoffs. Whether it is aerial photography, logistics transportation, or acrobatic flights, it can operate stably and reliably.

Industrial Equipment: In some industrial automation equipment that requires high-precision speed control and high torque output, such as the auxiliary drives of CNC machine tools and the conveying devices of automated production lines, this motor can accurately complete the power transmission tasks, improving production efficiency and product quality.

Robots: It provides power support for various robots, including the walking drives of mobile robots and the joint rotations of robotic arms, ensuring the flexibility, accuracy, and stability of the robots’ movements and adapting to complex and changeable working environments.



Precautions

Power Supply Matching: Ensure the compatibility and correct connection between the motor and the electronic speed controller (ESC).

Heat Dissipation Management: Before operation, check the installation and fixing conditions of the motor to ensure there is no looseness or damage. Avoid using the motor under conditions that exceed its rated voltage and current range to prevent damage to the motor or the occurrence of safety accidents.

Heat Dissipation Management: During use, if abnormal heating, noise, or vibration of the motor is detected, stop using it immediately and check the cause.

Regular Maintenance: Regularly maintain and service the motor to extend its service life and maintain optimal performance.



If you are interested in the 8320 Brushless motor for agriculture drone or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us in the following ways:

Tel: +86-769-85228181

Email: chris@x-teamrc.com

Additional information

Product model

XTA8320

Voltage

10-12S liPo

KV

100KV, 120KV

No Load Current

1.2A (7.4V)

Max Power

3000W (300S)

Weight

620g

Size

Φ90.6×35.3mm

Rotor mounting holes

30mm 4xM3

Stator mounting holes

Φ40mm 4xM4
