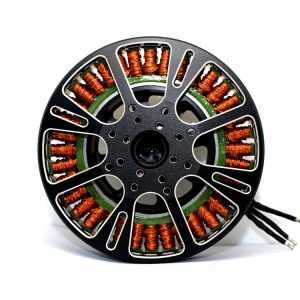

8312 Brushless motor for agriculture drone

X-TEAM 8312 Brushless motor for agriculture drone

Description

The 8312 Brushless motor for agriculture drone is a lightweight brushless DC motor specifically designed for high-dynamic environments, widely used in drones, electric light vehicles, and industrial automation equipment. Through careful optimization of the electromagnetic design and heat dissipation system, this motor can still provide a continuous power output of up to 2000W even when driven by a 10-12S lithium polymer battery, taking into account both high efficiency and low energy consumption. It not only responds quickly but also performs excellently in various applications, meeting the high requirements for efficiency, stability, and compact space. With a compact design and stable performance, this motor is very suitable for equipment that requires fast response and long-term continuous operation.

8312 Brushless motor for agriculture drone

Performance Parameters

Voltage Range: 10-12S LiPo

No-load Current: 0.75A (at 7.4V)

Maximum Output Power: 2000W (lasting for 300 seconds)

Thrust Range: Depending on the propeller size and throttle opening, the thrust can reach several kilograms.

High Efficiency: The motor demonstrates efficient energy conversion ability under different working conditions.

KV Value: 100KV is provided.



Structural Features

Compact Design: The motor has a small size, making it easy to integrate into various devices.

Lightweight: It weighs only 410g, which helps to reduce the burden on the overall system.

Sturdy and Durable: Manufactured with high-quality materials, it has good durability and reliability.

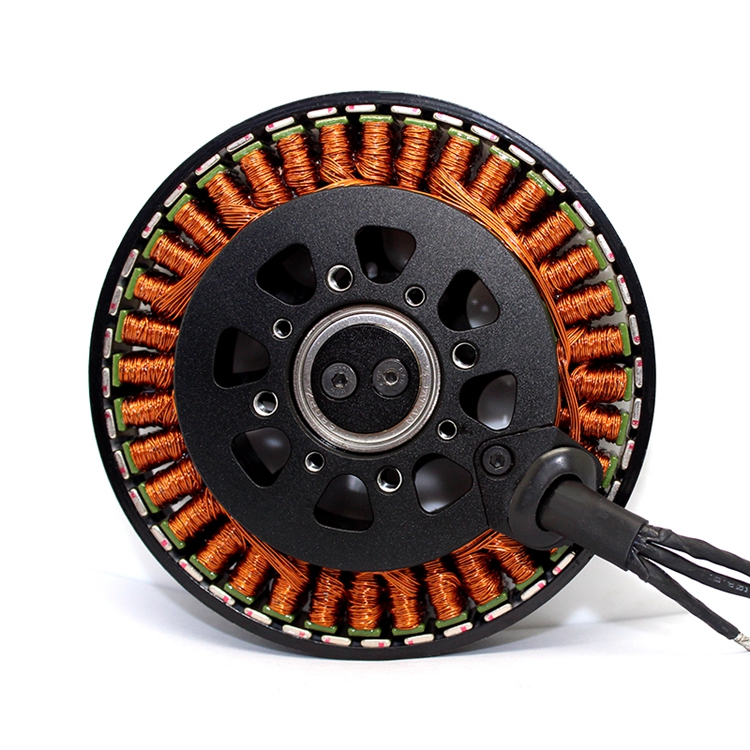

Easy Installation: The rotor mounting holes are 30mm with 4xM3 threads, and the stator mounting holes are Φ40mm with 4xM4 threads, facilitating connection with other components.

8312 Brushless motor for agriculture drone

Application Fields

Drones and Model Aircraft: It provides a full-throttle thrust of nearly 10kg for multi-rotor drones, supporting high-speed climbing and maneuvering flights.

Light Electric Vehicles: Drives electric scooters, self-balancing scooters, etc., balancing power output and battery life.

Industrial Automation: Integrated into small robotic arms and conveyor belt systems to achieve precise speed control.

Scientific Research Experiments: Serves as a power test platform for robots to verify algorithm and mechanical structure designs.



Precautions

Safe Operation: Before use, ensure that the voltage of the motor and the electronic speed controller (ESC) is matched. Avoid overvoltage or undervoltage operations to prevent damage to the equipment or safety accidents.

Cooling Measures: The motor will generate heat during operation. Please ensure there is enough heat dissipation space to avoid performance degradation or damage caused by overheating.

Correct Wiring: When wiring, ensure the correct phase to avoid damage or accidents caused by reverse rotation. Please carefully read the product manual and perform the wiring operation according to the instructions.

Load Matching: Select an appropriate propeller according to the actual thrust requirements. Avoid overloading operation to extend the motor’s service life and maintain optimal performance.

Regular Inspection: Check the motor and ESC for any damage before use, and listen for any abnormal noises during operation. If there is any abnormality, stop using it immediately and carry out maintenance to prevent the expansion of the fault or more serious consequences.



If you are interested in the 8312 Brushless motor for agriculture drone or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us in the following ways:

Tel: +86-769-85228181

Email: chris@x-teamrc.com

Additional information

Product model

XTA8312

Voltage

10-12S liPo

KV

100KV

No Load Current

0.75A (7.4V)

Max Power

2000W (300S)

Weight

410g

Size

Φ90.6×27.3mm

Rotor mounting holes

30mm 4xM3

Stator mounting holes

Φ40mm 4xM4
