Description

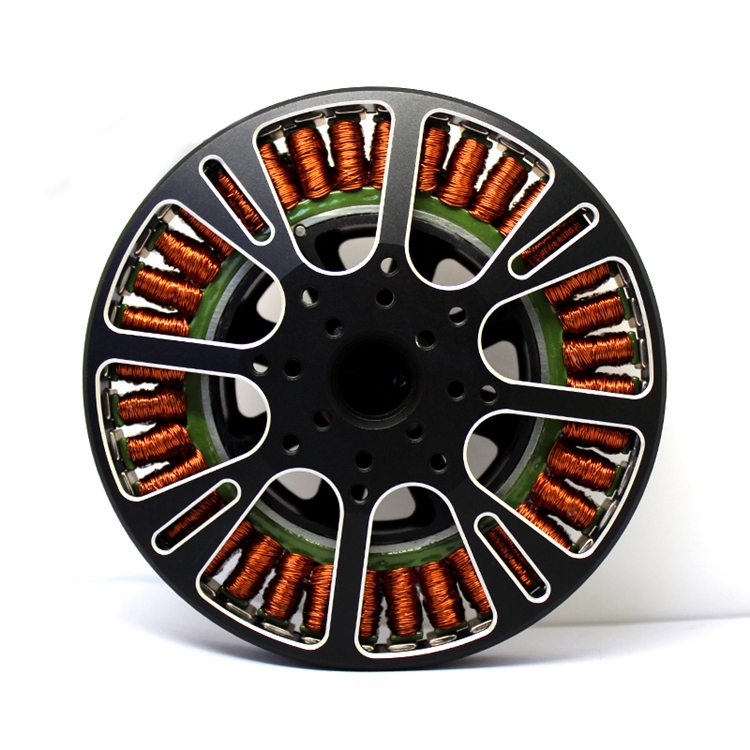

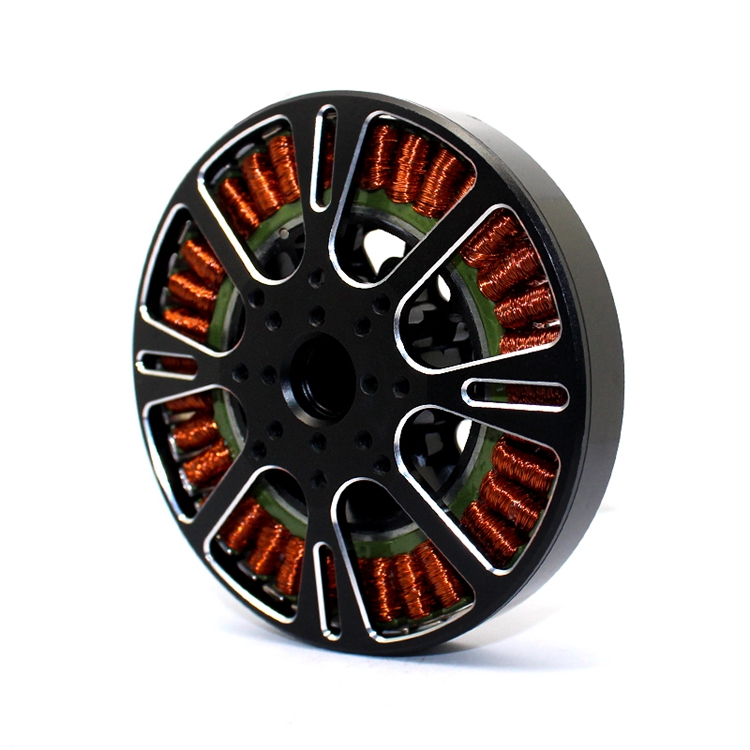

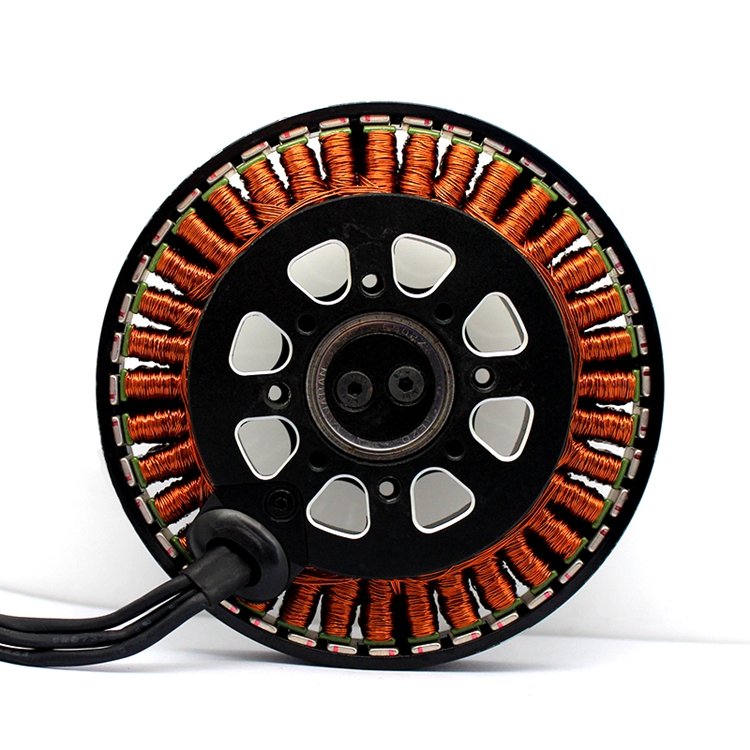

The 8308 Brushless motor for agriculture drone is a brushless DC motor (BLDC) specifically designed for lightweight and high-response scenarios. It is compatible with 6S lithium polymer batteries and features a high rotational speed of 135KV. Through a compact structural design and low-energy consumption optimization, this motor can provide stable power output in applications such as drones, lightweight robots, and model aircraft, while also taking into account efficiency and reliability. Weighing only 298g, it is an ideal choice for scenarios with limited space.
Performance Parameters
Model and Compatibility: XTA8308, supports 6S lithium polymer batteries, and is compatible with the rotational speed characteristic of 135KV.
Energy Efficiency Performance: The no-load current is only 0.7A (at 7.4V), the maximum power is 700W, and it has a strong continuous output capacity, making it suitable for short-term high-load requirements.

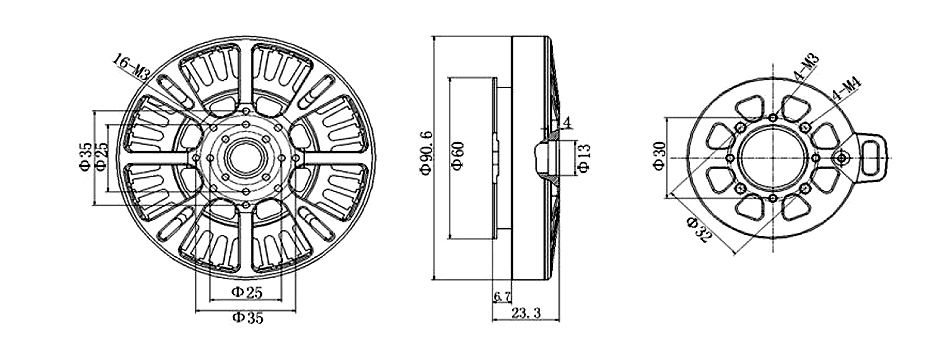

Mechanical Structure:
Dimensions: Diameter Φ90.6mm × Height 23.3mm
Mounting Interfaces: The rotor end adopts 4×M3 threaded holes distributed on the circumference with a diameter of Φ25mm, and the stator end is equipped with 4×M4 threaded holes distributed on the circumference with a diameter of Φ40mm, which is compatible with standard industrial flanges.
Structural Features
Compact Design: The motor has dimensions of Φ90.6×23.3mm and weighs only 298g, making it easy to install in various compact spaces.
Powerful Thrust: Under different voltage and throttle settings, the motor can provide stable thrust output to meet the needs of various application scenarios.
High Efficiency: The motor adopts advanced brushless DC technology, showing high efficiency, reducing energy consumption and improving performance at the same time.
Application Fields
Drones and Model Aircraft: Provides a thrust of up to 7.7kg for racing FPV drones and small multi-rotor drones, supporting high-speed maneuvering and stable hovering.
Lightweight Robots: Drives the joints or mobile chassis of service robots to achieve precise motion control.
Industrial Equipment: Integrated into automated sorting systems and small conveyor belts to improve the dynamic response capability of the equipment.
Education and Scientific Research: Serves as a power experiment platform to verify drone flight control algorithms or mechanical design theories.
Precautions
Power Supply and Equipment Matching: Strictly use 6S lithium batteries. Overvoltage or reverse connection of the power supply is prohibited. An electronic speed controller (ESC) of 80A or above must be used, and overcurrent protection should be set to prevent winding overload.
Heat Dissipation and Load Management: When running at a continuously high throttle, install heat sinks or use forced air cooling to ensure the normal surface temperature of the motor. Avoid propeller collisions or foreign objects jamming to prevent the motor from stalling and causing instantaneous current overload.
Maintenance and Storage: Regularly clean the dust on the motor surface and check whether the insulation layer of the wires is damaged (it is recommended to perform maintenance every 80 hours). Disconnect the battery during long-term disuse and store it in a dry environment to avoid the performance degradation of the permanent magnets.
If you are interested in the 8308 Brushless motor for agriculture drone or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us in the following ways:
