8115 Gimbal brushless motor

X-TEAM 8115 Gimbal brushless motor

Category: Tag:

Description

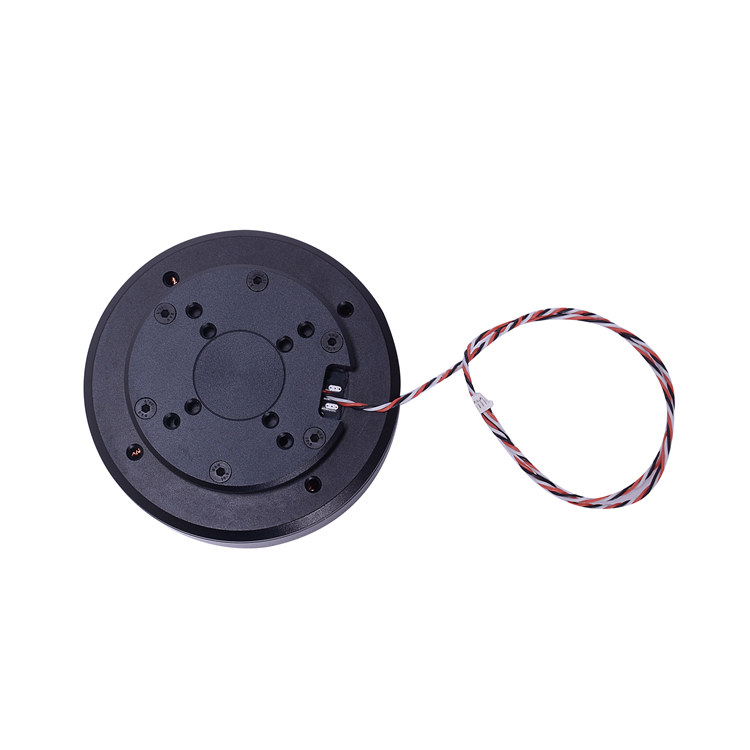

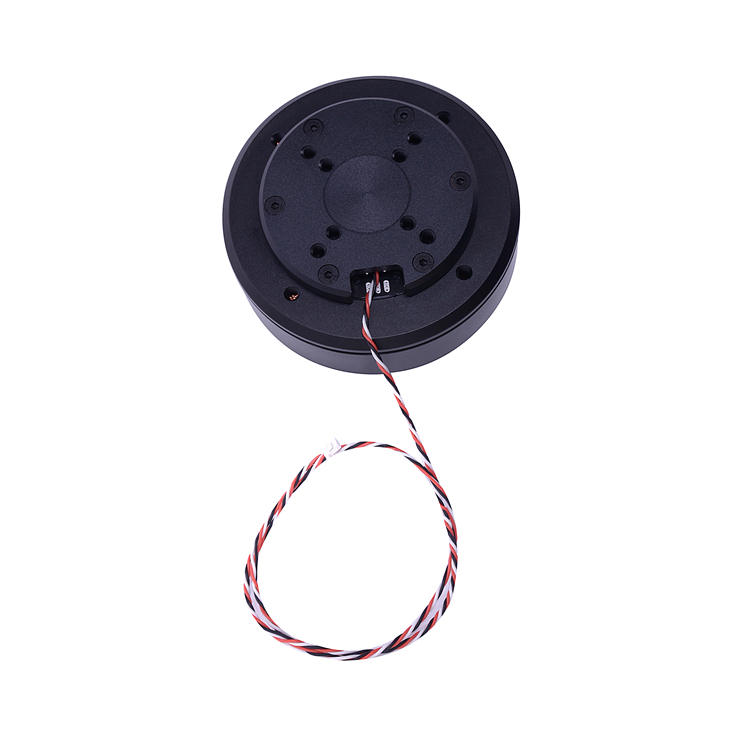

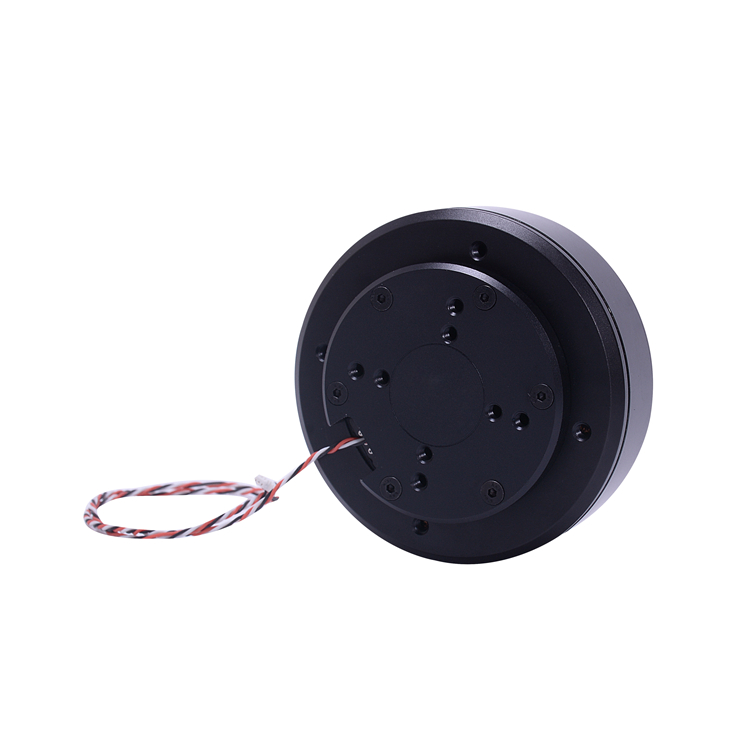

The 8115 Gimbal brushless motor is a high-performance brushless DC (BLDC) motor specifically designed for applications requiring high torque and high precision. Whether it’s industrial automation equipment, robotic joint drives, or other devices that demand precise control of torque and speed, this motor can, with its excellent performance, provide stable and reliable power support, meeting users’ dual pursuit of power and precision.

8115 Gimbal brushless motor

Performance Parameters

Model: XTG8115

Weight: 448.9 grams

Stator Size (Diameter x Length): Φ81x15mm

Configuration: 36N40P (36 magnetic poles, 40 pole pairs)

Number of Turns: 90 turns

Operating Voltage Range: 12~24V

Torque: 3.0N.m @ 14.8V

Resistance: 14Ω

Stator Mounting Holes: Φ53.5mm, 6 M3 threaded holes

Rotor Mounting Holes: Φ30mm with 4 M4 threaded holes, Φ44mm with 4 M4 threaded holes

Maximum Load (Gimbal/Camera): 10,000 grams

Encoder: AS5048A

Slip Ring: 12.5mm/22mm



Structural Features

Compact Design: With a compact stator and rotor design, the diameter is only 81mm and the length is 15mm, making it very suitable for applications with limited space.

High Torque Output: Under a voltage of 14.8V, this motor can provide a torque of 3.0N.m, easily handling heavy load requirements and ensuring the stable operation of the gimbal or camera.

Flexible Installation: The stator and rotor are respectively designed with multiple mounting hole positions, facilitating users to install flexibly according to actual needs and improving the integration convenience of the system.

High Precision Encoder: The built-in AS5048A encoder provides accurate position feedback, suitable for applications requiring high precision control, such as the drone gimbal stabilization system.

Durable Slip Ring: The design of 12.5mm/22mm slip ring ensures the reliability of signal and power transmission and extends the service life of the motor.

8115 Gimbal brushless motor

Application Areas

Drone Gimbals: Provide a stable image shooting platform, maintaining a smooth picture even during high-speed flight.

High Precision Photography Equipment: Suitable for professional photography sliding rails, jibs and other equipment, ensuring smooth and jitter-free shooting images.

Industrial Automation Systems: In occasions such as automated assembly lines and robotic joints, provide precise power control.



Precautions

Voltage Matching: Please ensure that the input voltage is within the range of 12~24V to avoid exceeding the motor’s design specifications, which may affect performance or cause damage.

Heat Dissipation Management: When operating under high load, pay attention to the heat dissipation of the motor and avoid overheating caused by continuous operation for a long time.

Proper Installation: Use appropriate tools and the correct installation method to ensure that the stator and rotor are firmly installed to avoid loosening during operation.

Regular Inspection: Regularly inspect the motor and its connecting components to ensure there is no wear, looseness or damage, and replace aging components in a timely manner.

Safety Protection: When operating the motor, please wear necessary personal protective equipment, such as safety goggles and insulated gloves, to ensure personal safety.



If you are interested in the 8115 Gimbal brushless motor or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:

Telephone: +86-769-85228181

Email: chris@x-teamrc.com

Additional information

Product model

XTG8115

Weight

448.9g

Stator dimension(DxL)

Φ81x15mm

Configuration

36N40P

Turns

90T

Voltage

12~24V

Torque

3.0N.m@14.8v

Resistance

14Ω

Stator mounting holes

Φ53.5mm 6xM3

Rotor mounting holes

Φ30mm 4xM4,Φ44mm 4xM4

Max weight of gimbal/camera

10000g

Encoder

AS5048A

Slipring
