Description

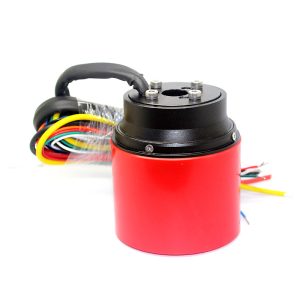

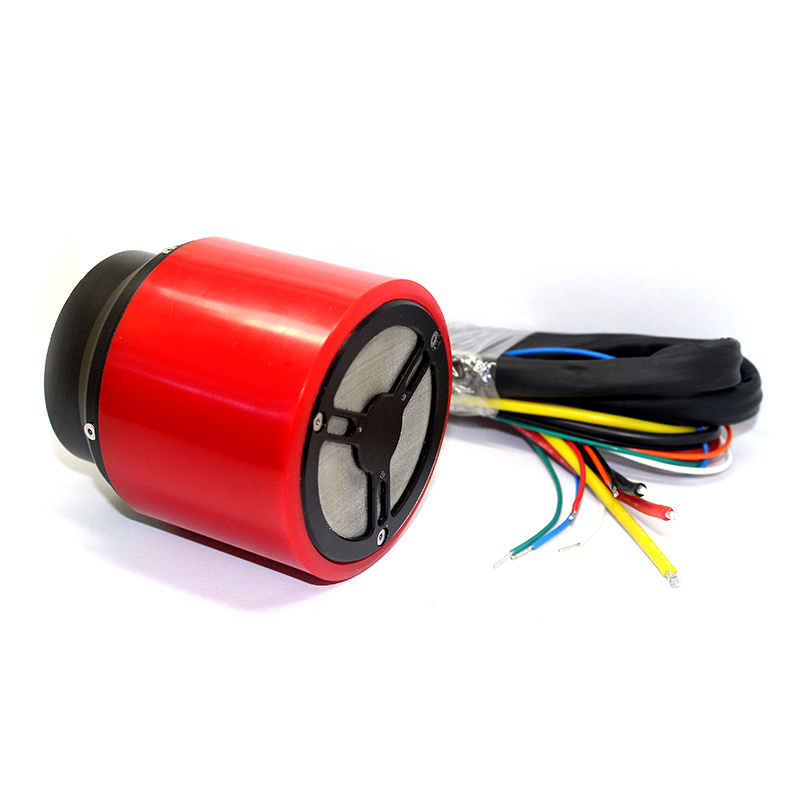

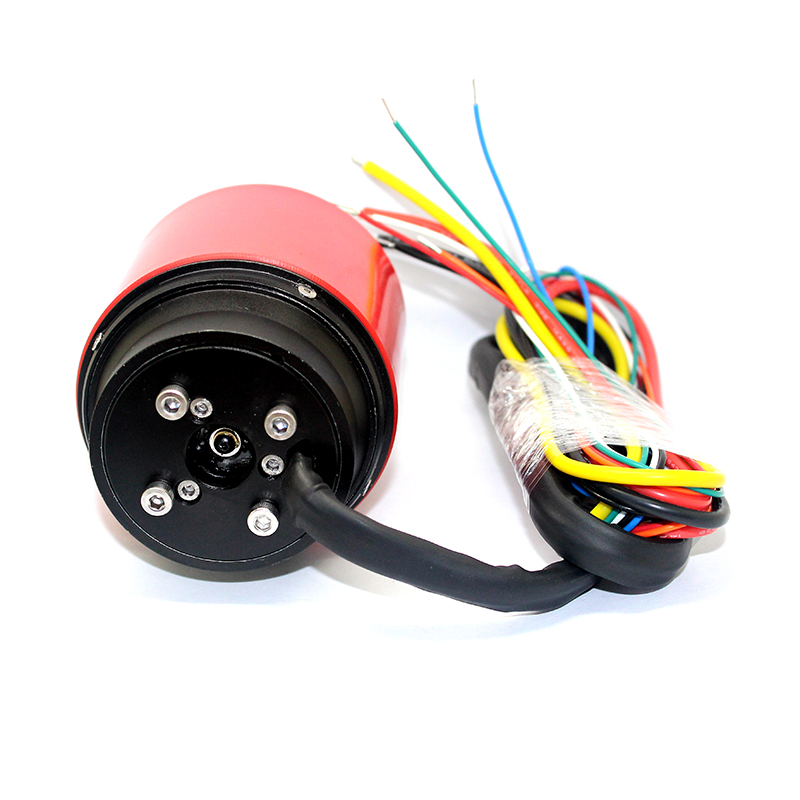

The 7583S brushless motor for electric scooter is a high-performance brushless DC motor. It features a vibrant red appearance, which not only makes it visually recognizable but also easy to identify and maintain in industrial applications. The stator size of the motor is Φ75x83mm. This compact design enables it to deliver powerful performance even in limited spaces, making it suitable for various devices that require high power output but have restricted space.
Performance Parameters
Product Model: 7583S
Color: Vibrant Red

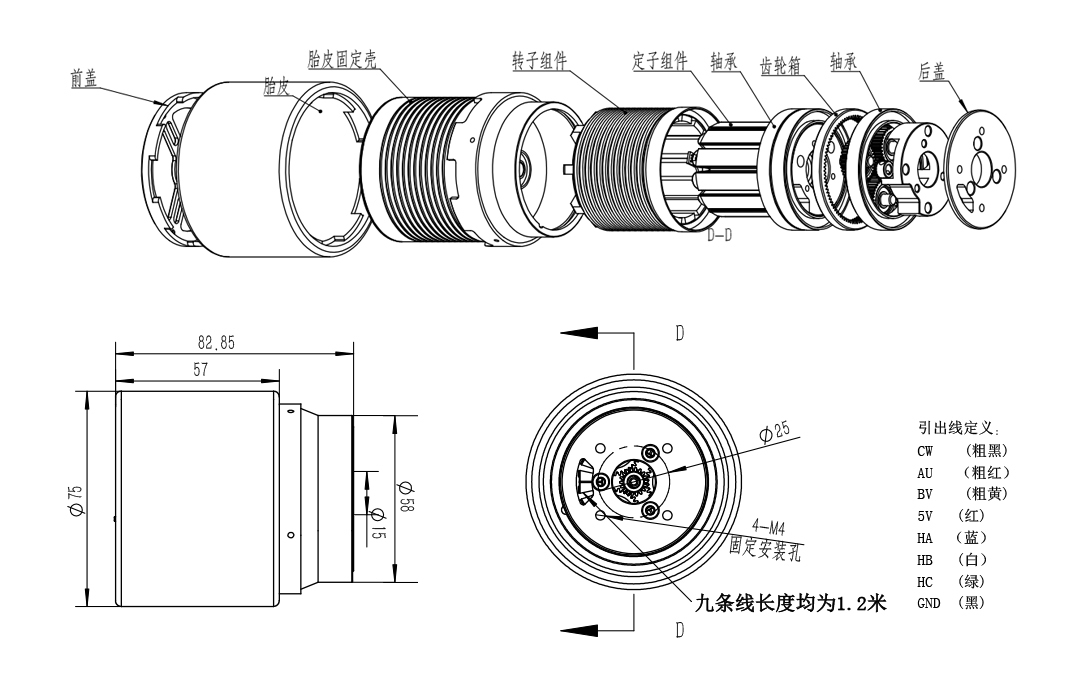

Stator Size (Diameter x Length): Φ75x83mm
Configuration: 12N14P (12 slots, 14 poles)
Rated Voltage: 24V~32V
Rated KV Value: 200KV
Gear Ratio: 6:1
Rated Current: 27A
Rated Power: 650W
Rated Torque: 5.0N.m
Rated Speed: 630 rpm/min
Maximum Current: 60A
Maximum Torque: 10N.m
Weight: 1028g
Structural Features
Compact Design: The 7583S brushless motor for electric scooter adopts a compact stator size (Φ75x83mm), which is highly suitable for application scenarios with limited space while ensuring high-efficiency output.
High-performance Materials: High-quality materials are used inside the motor to ensure its stability and reliability even under long-term and high-load operation.
Brushless DC Technology: Advanced brushless DC technology is employed, reducing the maintenance requirements and improving the efficiency and lifespan of the motor.
Efficient Gear Ratio: The 6:1 gear ratio design provides excellent torque output and speed control.
High KV Value: The high KV value of 200KV endows the motor with excellent response speed and dynamic performance.
Application Fields
Industrial Automation: Used in the drive systems of automated production lines to provide a stable and reliable power source.
Aerospace: Mainly applied to the power systems in the aerospace field such as drones and model airplanes.
Electric Vehicles: Widely used in the drive systems of transportation vehicles like electric vehicles and electric scooters, providing high-efficiency and low-noise power output.
Medical Equipment: Applied to the drive systems in medical equipment, such as surgical robots and rehabilitation devices.
Smart Home: Suitable for the curtain motors, smart door locks, etc. in smart home systems, providing stable and quiet drive solutions.
Precautions
Power Supply Voltage: Please ensure that the power supply voltage is within the range of 24V~32V to avoid damage to the motor caused by excessive or insufficient voltage.
Current Control: During use, please control the current reasonably and avoid exceeding the maximum current limit (60A) to prevent the motor from overheating or being damaged.
Heat Dissipation: The motor will generate heat during operation. Please ensure that there is sufficient heat dissipation space around the motor to avoid damage to the machine caused by long-term high-temperature operation.
Regular Maintenance: Although the maintenance requirements of brushless DC motors are relatively low, it is still recommended to regularly inspect components such as motor connections, bearings, and gears to ensure their normal operation.
Safety Protection: When operating the motor, please wear appropriate protective equipment to prevent accidents.
Professional Guidance: If you have any questions about the installation, debugging, or use of the motor, please consult professionals or refer to relevant technical manuals.
If you are interested in the 7583S brushless motor for electric scooter or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-efficiency application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following means:
Telephone: +86-769-85228181
E-mail: chris@x-teamrc.com
