Description

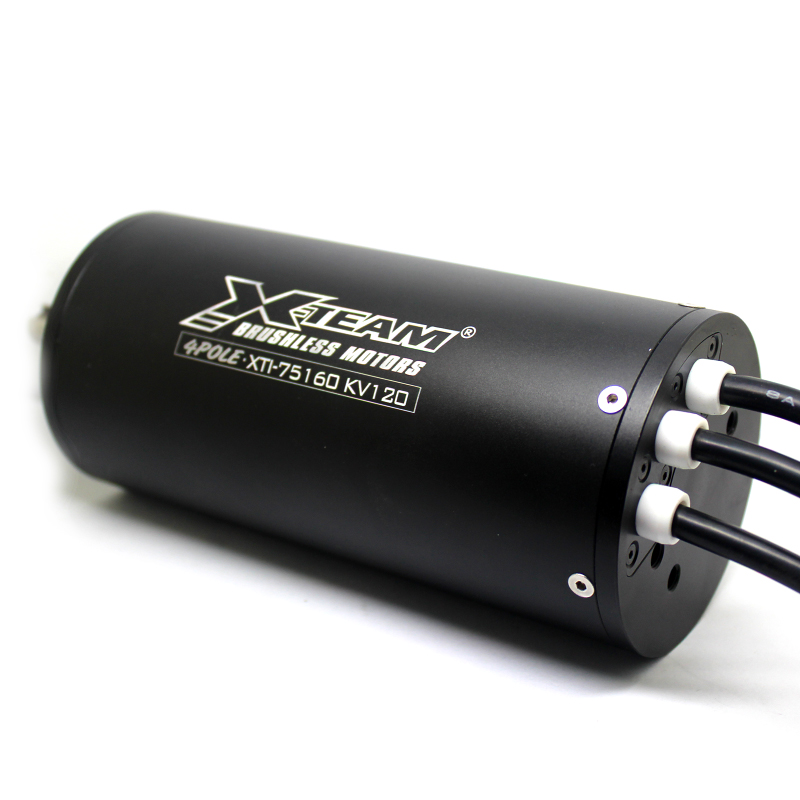

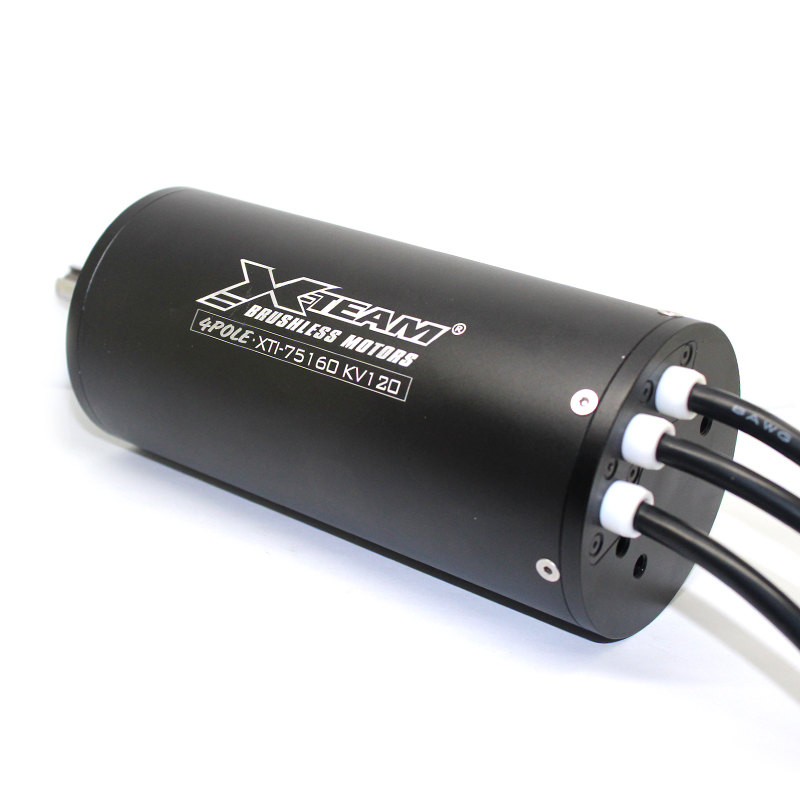

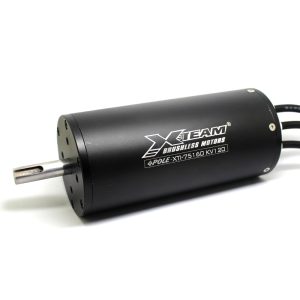

The 75160 inrunner brushless motor for Electric Surfboard, with its powerful configuration, excellent electrical specifications, and wide applicability, has become the preferred choice in the field of high-power applications. Whether in industrial automation, aerospace, or the electric vehicle industry, the 75160 inrunner brushless motor for Electric Surfboard can provide stable and efficient power support.
Performance Parameters
Model: 75160
Type: Inrunner motor
Configuration: 12 poles and 4 phases (12N4P), ensuring the efficient operation of the motor and stable power output.
Dimensions: 75 mm in diameter x 160 mm in length. The compact design enables the motor to easily adapt to various space limitations.
Voltage Range: 22 volts to 85 volts. The wide voltage adaptability ensures the stable operation of the motor under different working conditions.
Maximum Rotational Speed: 15,000 revolutions per minute (RPM). The high-speed operation capability meets the speed requirements of high-power applications.
KV Value: 120KV. A high KV value means that the motor is sensitive to voltage changes and responds rapidly.
In terms of electrical characteristics, the no-load current of the 75160 motor (at 10V) is 1.5 amperes, the rated torque is 4 N·m, and the rated current is 40 amperes. With a 10-series battery configuration, the maximum power of the motor can reach 4,300 watts, the maximum torque is 8 N·m, and the maximum current is 96 amperes. These parameters together form the excellent performance foundation of the motor.
Structural Features

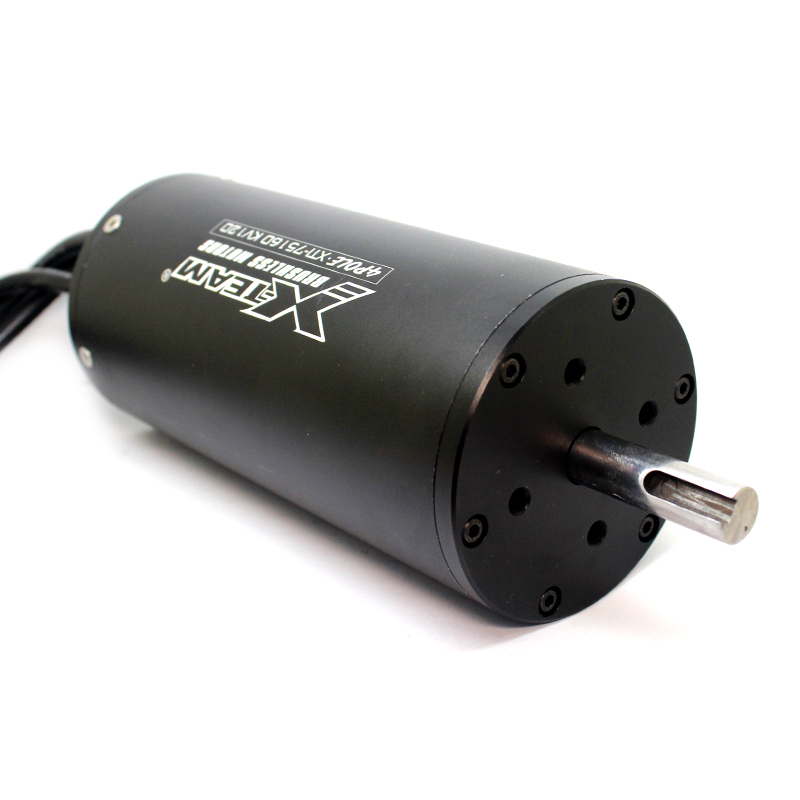

The 75160 inrunner brushless motor for Electric Surfboard adopts sensorless control technology, which can achieve precise control without additional sensors, reducing system complexity and cost. The motor also has the characteristics of dustproof and splash-proof (IP57 protection level), and can operate stably in harsh environments. The shaft diameter is 10 mm, and the extension length is 32 mm, ensuring the compatibility and stability of the motor with various transmission devices. In addition, the motor is equipped with installation holes with M6 threads, with a spacing of 40 mm, making it convenient for users to install and fix according to actual needs.
Application Fields
The 75160 inrunner brushless motor for Electric Surfboard is widely used in industrial automation, aerospace, electric vehicles, robotics, and other fields. Its efficient and stable performance, as well as its compact design, make the motor an indispensable power source in these fields.
Precautions
Safety Inspection: Before use, ensure that the installation and connection of the motor are correct to avoid situations such as short circuits or overloads.
Voltage Matching: Ensure that the input voltage is within the voltage range of the motor to avoid damage to the motor caused by excessively high or low voltage.
Heat Dissipation Treatment: In high-power applications, the motor may generate a lot of heat. Ensure that there is sufficient heat dissipation space around the motor and regularly check the heat dissipation situation of the motor.
Regular Maintenance: Regularly inspect and maintain the motor, including cleaning, lubricating, and tightening, etc., to ensure the long-term stable operation of the motor.
Professional Operation: Please have professionals or trained personnel operate and maintain the motor to ensure safety and efficiency.
If you are interested in the 75160 inrunner brushless motor for Electric Surfboard or need more detailed information about the product, please feel free to contact us. We look forward to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other occasions with high-performance requirements, X-TEAM motors can provide stable and reliable power output. If you need more information or want to order a BLDC motor, you can contact us in the following ways:
Telephone: +86-769-85228181
Email: chris@x-teamrc.com
