Description

The 68148 inrunner brushless motor for Electric Life – buoy is a well – designed and high – performance product suitable for various high – performance applications. Its unique 18 – slot 16 – pole configuration (18N16P) ensures high efficiency and stable operation. The motor has a compact size (Φ68×148 mm) and a robust structure, making it suitable for application scenarios that require high rotational speed and high torque.

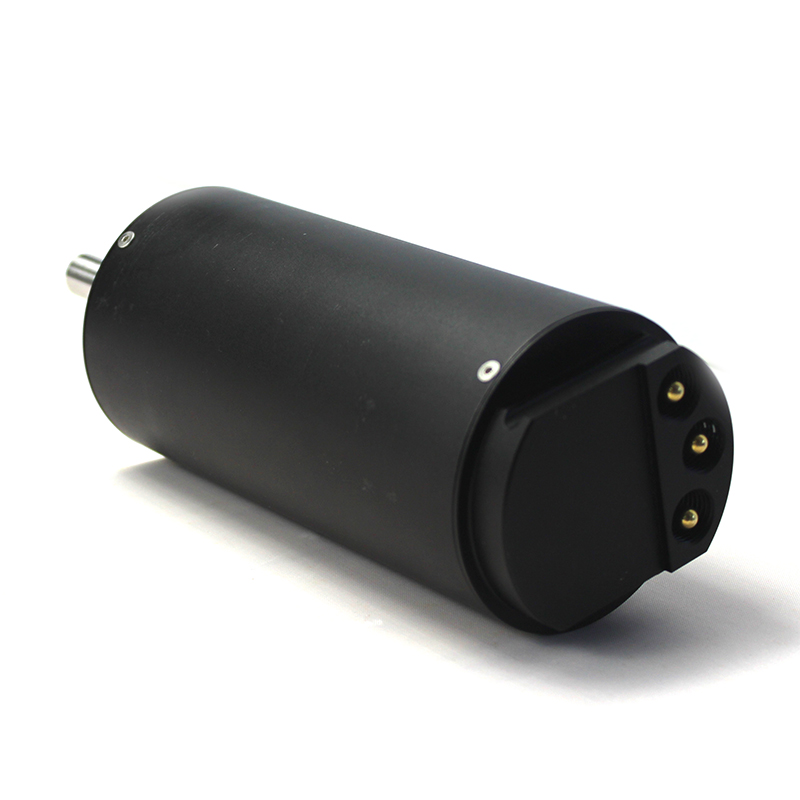

68148 inrunner brushless motor for Electric Life-buoy

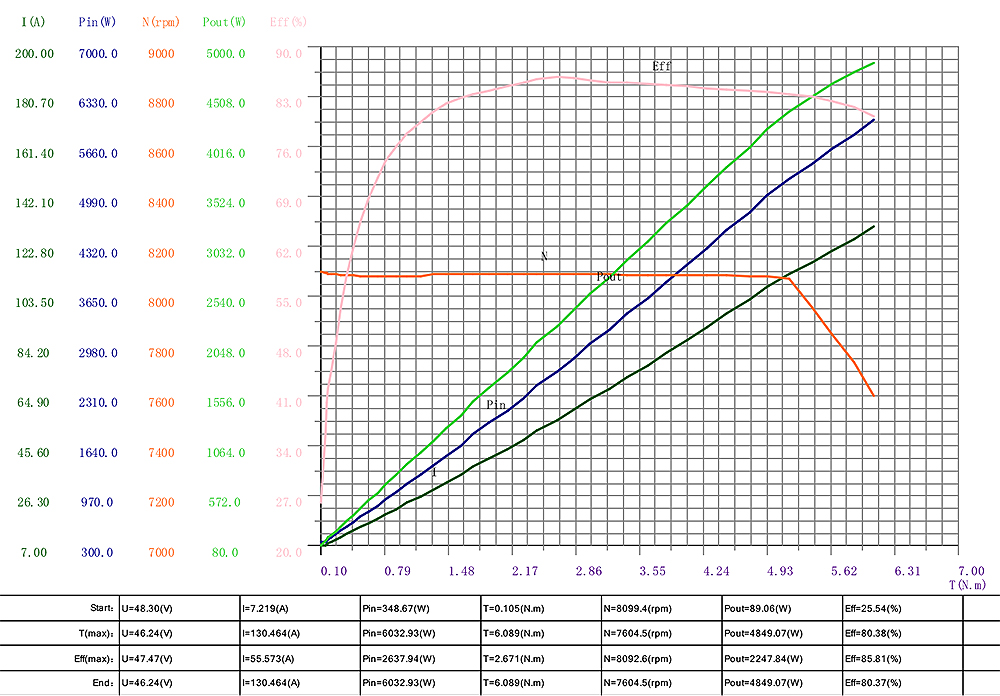

Performance Parameters

Voltage Range: 22V to 85V

Maximum Rotational Speed: 20000 RPM

KV Value: 220 KV

No – load Current: 5.5A (10V)

Rated Torque: 2.6 N.m

Rated Current: 60A

Maximum Current: 125A

Maximum Power: 6000W

Maximum Torque: 6.5 N.m

Weight: 2300 grams

Protection Level: IP57

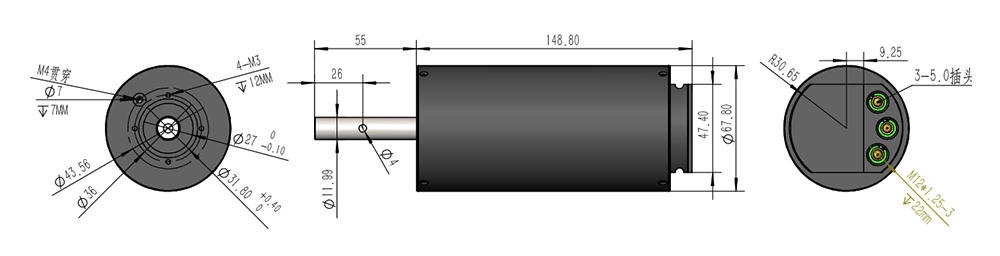

Structural Features

Inrunner Design: The inrunner design makes the motor’s structure more compact, suitable for applications with limited space.

Sensorless Configuration: The sensorless design simplifies the control circuit, reduces costs, and improves reliability.

High – strength Shaft: The outer diameter of the shaft is Φ12×55 mm, ensuring high mechanical strength and durability.

Easy Installation: The design of the mounting holes (Φ36xM3) makes the motor easy to install and fix.

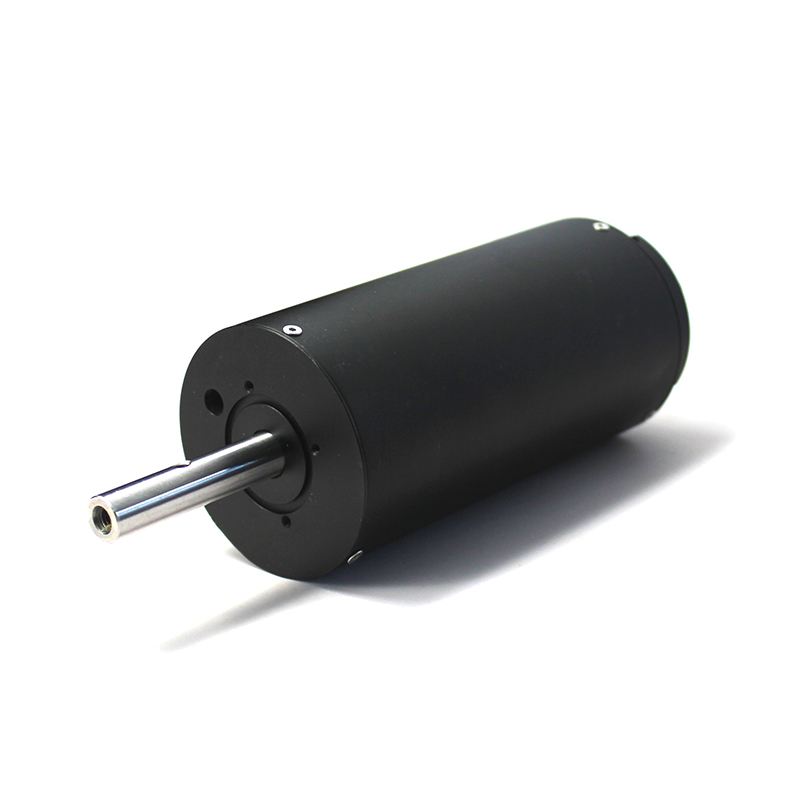

68148 inrunner brushless motor for Electric Life-buoy

Application Fields

Power Tools: It is suitable for various power tools such as electric drills and saws, providing strong power and stable performance.

Drones and Robots: Ideal for drones and robots that require high rotational speed and high torque, ensuring precise control and efficient operation.

Industrial Equipment: Applicable to various industrial equipment such as fans and pumps, providing efficient power transmission.



Precautions

Voltage Matching: Please ensure that the input voltage is within the range of 22V to 85V to avoid motor overload or damage.

Heat Dissipation Measures: During high – load or long – term operation, ensure that the motor has good heat dissipation measures to prevent overheating.

Proper Installation: When installing, ensure that the shaft and mounting holes are aligned to avoid mechanical damage caused by improper installation.

Protection Measures: When using in a humid or dusty environment, pay attention to the protection level (IP57) to ensure that the motor is not affected by the environment.



If you are interested in the 68148 inrunner brushless motor for Electric Life – buoy or need more detailed information about the product, please feel free to contact us. We look forward to providing you with high – quality products and services to meet your needs. Whether in automation, robotics, or other high – performance – required scenarios, X – TEAM motors can provide stable and reliable power output. For more information or to order a BLDC motor, you can contact us in the following ways:

Telephone: +86 – 769 – 85228181

Email: chris@x – teamrc.com

Additional information

Product model

68148

Motor Type

Inrunner

Configuration

18N16P

Size

Φ68x148mm

Shaft OD&Ext.

Φ12x55mm

Mounting Holes

Φ36xM3

Voltage

22V~85V

Max RPM

20000 RPM

KV

220KV

No Load Current

5.5A (10V)

Rated Torque

2.6N.m

Rated Current

60A

Sensored/Sensorless

Sensorless

Max Power

6000W

Max Torque

6.5N.m

Max Current

125A

Weight

2300g

Ingress Protection

IP57
