Description
The 6566 brushless motor for logistics picking is specifically designed for application scenarios that require efficient and stable power output. With advanced manufacturing technology and the selection of high-quality materials, this motor performs outstandingly in terms of performance, structure, and application, making it an ideal choice for users in numerous fields.
Performance Parameters
Power Supply Voltage: DC24V ensures that the motor operates under a stable voltage, enhancing the stability and reliability of power output.
No-load Current: <0.2A. Even when there is no load, the current consumption of the motor is extremely low, which helps to reduce energy consumption.
Rated Power: 20W. When the motor operates at the rated power, it can provide stable and powerful power output.
Drive Method: It has a built-in control card, eliminating the need for an external driver, which simplifies the installation and use process of the motor.
Rated Linear Velocity: 1.7m/s ensures that the motor can provide a stable linear velocity under rated working conditions.
Speed Regulation Range: 0.6 – 2.5m/s. By adjusting the voltage of the speed control signal line, the operating speed of the motor can be flexibly adjusted to meet different application requirements.
Voltage of the Speed Control Signal Line: 24V, which is the same as the power supply voltage, simplifying the design and installation of the speed control system.
PM Pulse Frequency: 1KHz provides a stable pulse signal to ensure the accuracy and stability of the motor’s operation.
Structural Features

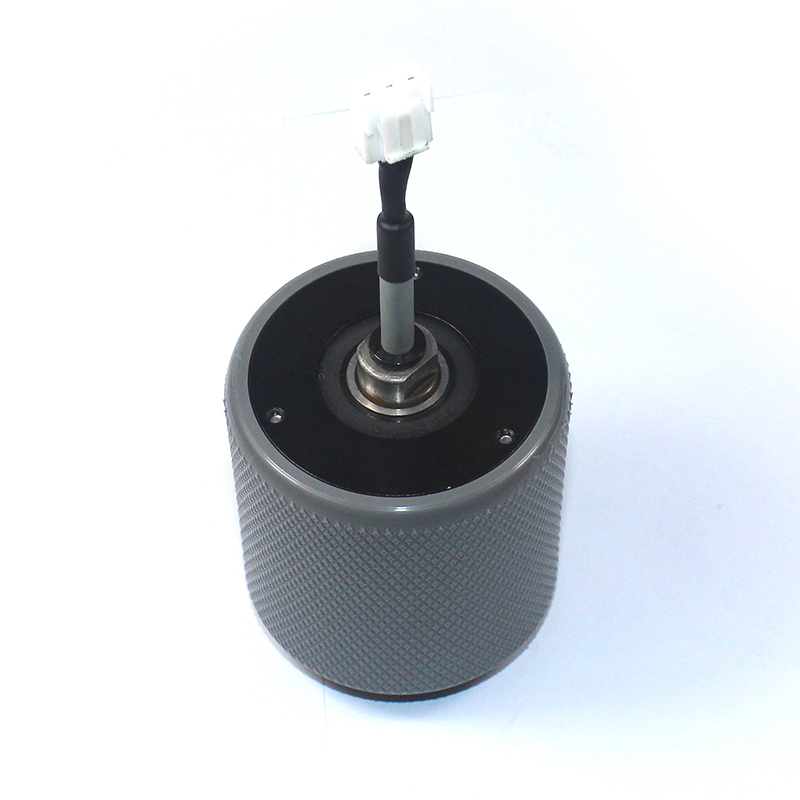

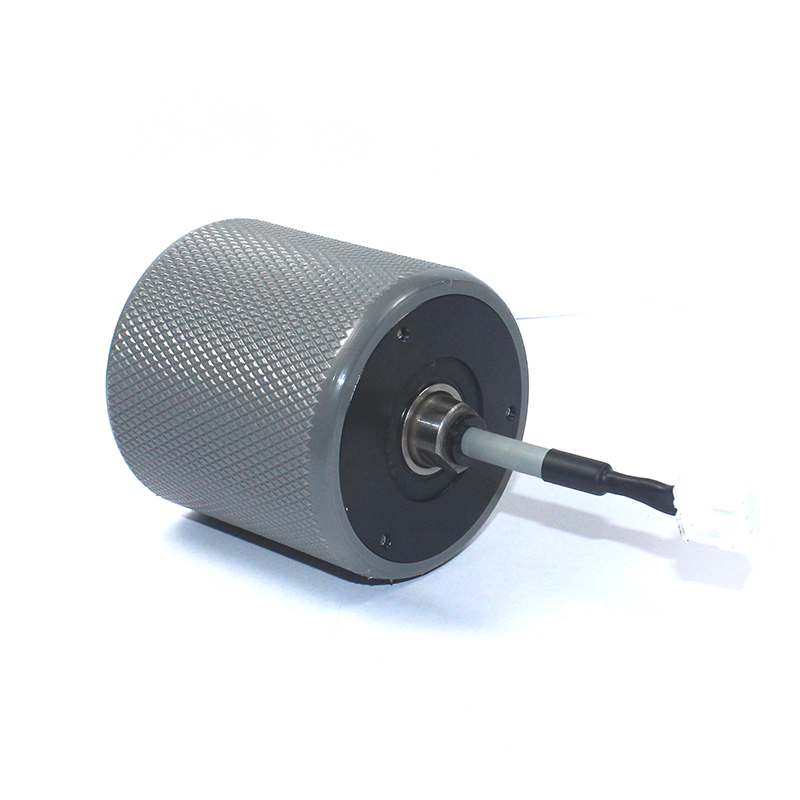

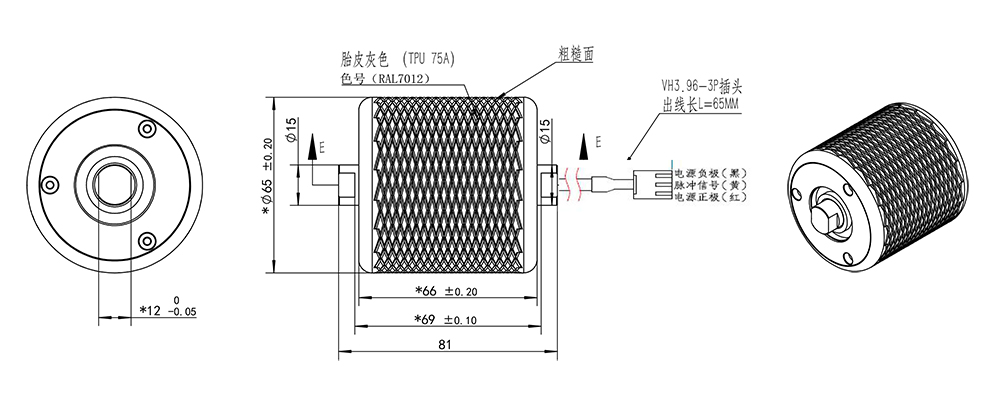

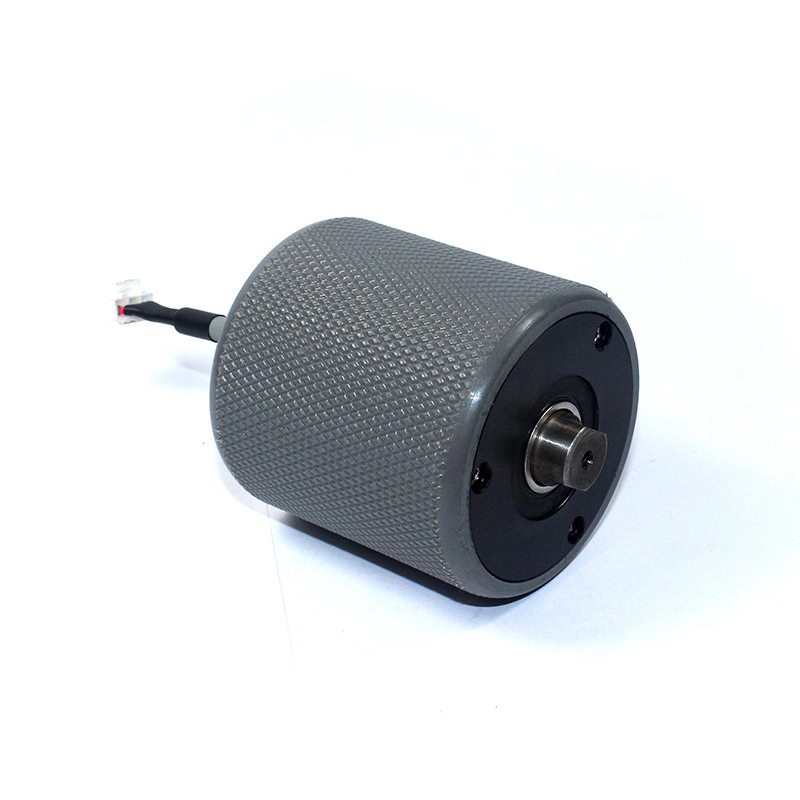

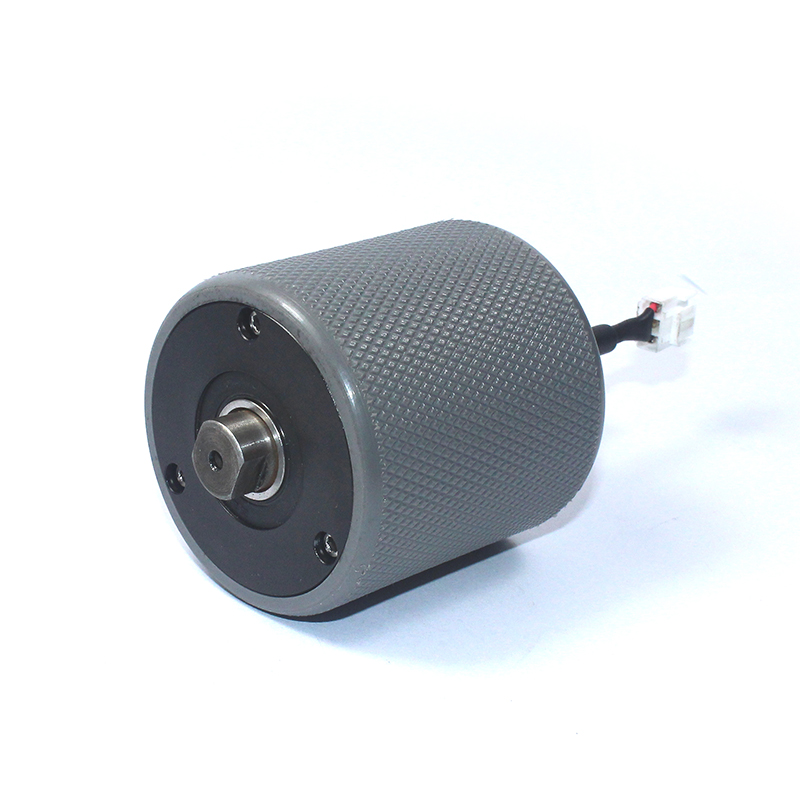

Motor Diameter: ￠65mm. The compact structural design makes the motor easy to install and integrate into various devices.
Surface Casting Rubber Material: TPU has good wear resistance, corrosion resistance, and high-temperature resistance, improving the service life and reliability of the motor.
Built-in Control Card: Simplifies the driving and control of the motor, reducing the user’s maintenance costs.
High-performance Brushless Structure: Improves the operating efficiency and stability of the motor, reducing noise and vibration.
Application Fields

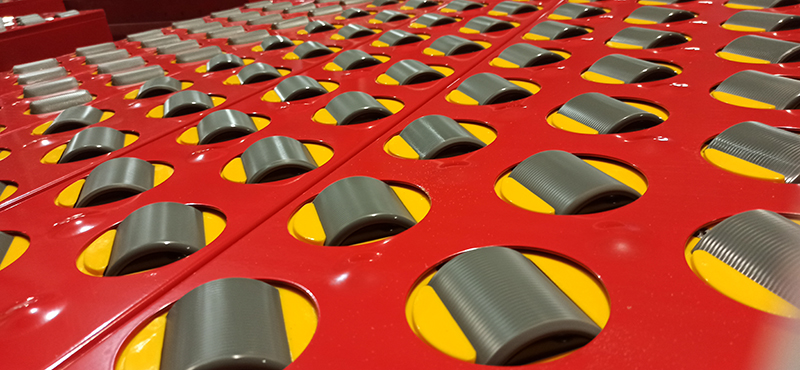

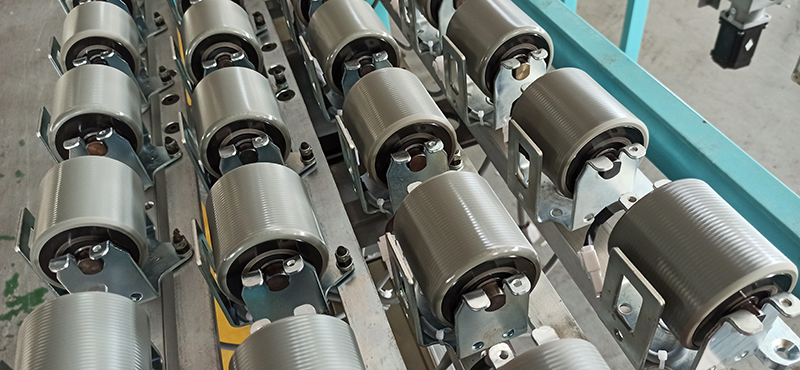

The 6566 brushless motor for logistics picking is widely used in fields that require efficient and stable power output, such as automated equipment, logistics conveying systems, smart homes, etc. Its compact structural design, high-performance brushless structure, and easy installation features enable the motor to perform excellently in various application scenarios.
Precautions
Safe Use: Follow relevant safety regulations. Avoid using the motor in wet or flammable environments to prevent dangerous situations such as electric shock or fire.
Correct Operation: Carefully read the product manual and operate according to the instructions. Ensure that parameters such as the power supply voltage of the motor and the voltage of the speed control signal line are compatible with your equipment to avoid performance degradation or damage caused by incompatibility.
Maintenance: Regularly cleaning and maintaining the motor can keep it in its best performance. Please ensure that the storage environment of the motor is dry and well-ventilated to avoid performance degradation caused by moisture.
Operating Environment: The 6566 brushless motor for logistics picking is suitable for an operating environment of -20°C to 45°C. Please ensure that the motor operates within the appropriate temperature range to avoid performance degradation or damage caused by excessively high or low temperatures.
Motor Life: Under normal use and maintenance conditions, the service life of this BLDC motor is 360×22 hours (that is, continuous operation for 360 days, 22 hours per day). Please arrange the usage time of the motor reasonably to extend its service life.
If you are interested in the 6566 brushless motor for logistics picking or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us in the following ways:
Tel: +86-769-85228181
Email: chris@x-teamrc.com
Supply voltage: DC24V
No-load current: <0.2A
Rated power: 20W
Drive: Built-in control card
Rated line speed: 1.7m/s
Speed regulating range: 0.6-2.5m/s
Speed regulation signal line voltage: 24V
PM pulse frequency: 1KHz
Motor diameter: ￠65mm
Surface casting rubber material: TPU
Use environment: -20℃-45℃
Motor life: 360x22h
