Description

The 65135 inrunner brushless motor for Electric Life-buoy is a high-performance inrunner motor specifically designed for high-demand application scenarios. Its ingenious design integrates multiple advanced technologies, ensuring excellent efficiency and stability when delivering high rotational speeds and high torque outputs, thus providing a reliable solution for various high-demand application scenarios. This motor adopts an Inrunner structure, which not only features high rotational speed and efficiency but also facilitates heat dissipation, making it suitable for scenarios involving continuous high-load operation. With its configuration of 18 slots and 16 poles, it optimizes torque output and running smoothness, enabling the motor to perform excellently under different load conditions. Whether it is an application requiring high rotational speed or high torque, the motor can handle it with ease.

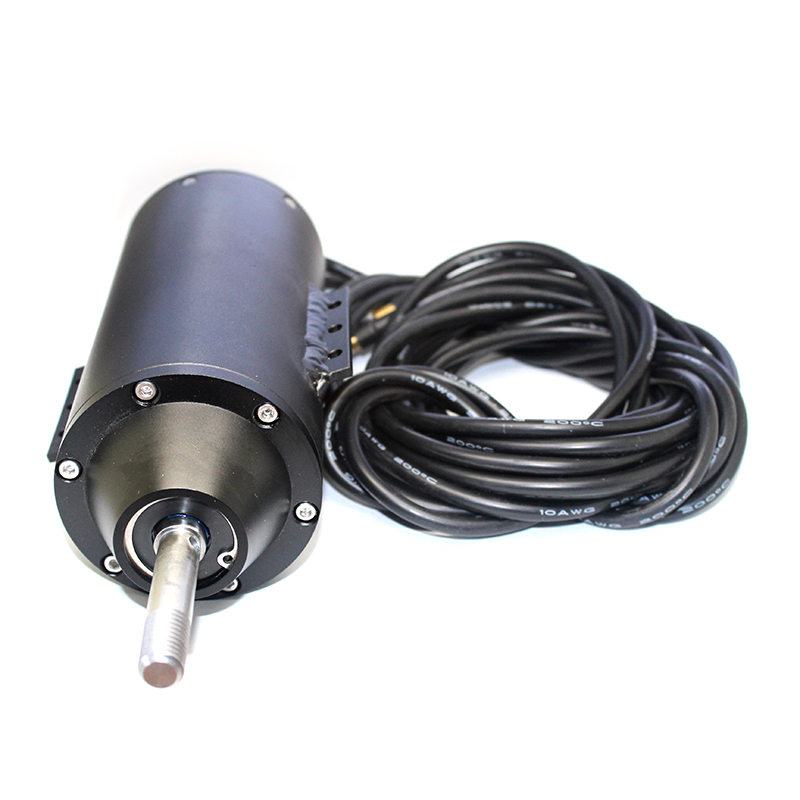

65135 inrunner brushless motor for Electric Life-buoy

Performance Parameters

Motor Type: Inrunner (Inrunner Motor)

Configuration: 18N16PKV, 255KV

 Voltage: 36V

Rated Current: 60A

Power: 2150W

Rated Rotational Speed: 8180 RPM

Rated Torque: 2.0N·m

Maximum Current: 160A

Maximum Torque: 5.2N·m

Sensing Method: Sensorless (Sensored/Sensorless: Sensorless)

Protection Level: IP68 (Completely prevents the intrusion of foreign objects and dust, and can withstand continuous immersion in water under a certain pressure)

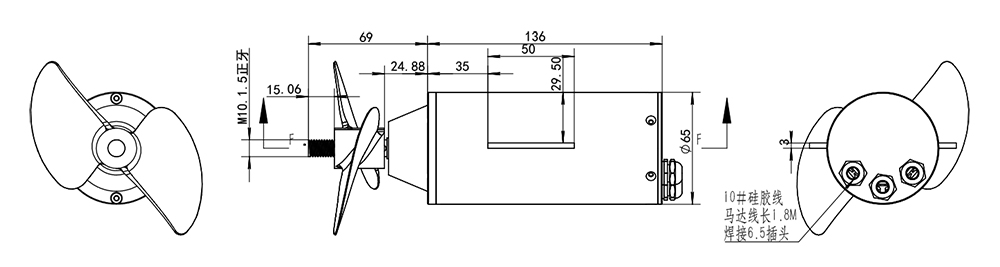

Structural Features

Propeller Components: The propeller design on both the left and right sides helps with efficient heat dissipation and aerodynamic optimization.

Motor Body: The rectangular cuboid structure in the middle contains an inrunner, a stator, and high-precision bearings, ensuring smooth operation and low noise.

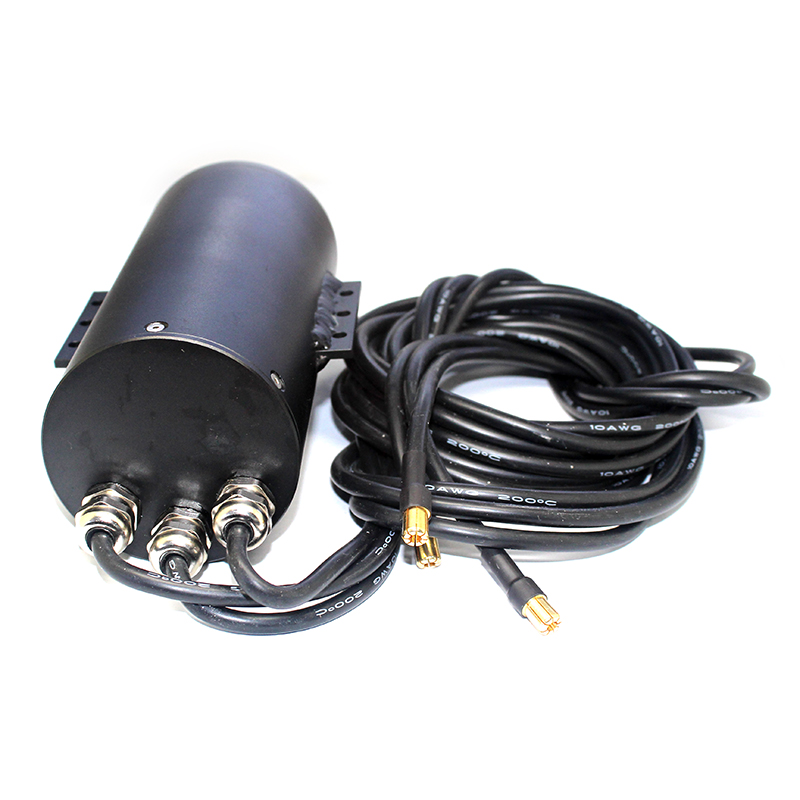

Connecting Components: Use 10# silicone wire. The length of the motor wire is 1.8 meters, and a 6.5 plug needs to be welded, which is convenient for users to connect the power supply and control signals.

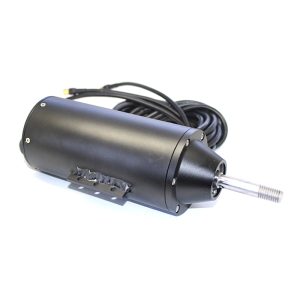

65135 inrunner brushless motor for Electric Life-buoy

Application Fields

Robots: Such as drones, service robots, etc., which require applications with high-precision control and high efficiency.

Power Tools: Such as electric screwdrivers, drills, etc., which are tools requiring high torque and durability.

Underwater Equipment: Such as underwater cameras, submersibles, etc., which are equipment requiring a high protection level and reliability.



Precautions

Correct Wiring: Wire according to the details in the engineering drawing to ensure the correct connection of the 10# silicone wire, the motor wire, and the plug.

Working Environment: Although this motor has a protection level of IP68, it should still be avoided to be immersed in extreme environments for a long time, such as high temperature, low temperature, or corrosive liquids.

Load Control: Avoid working at the maximum current and maximum torque for a long time to prevent damage to the motor.

Regular Maintenance: Regularly check the motor connection wires and plugs to ensure there is no looseness or damage, and keep the motor’s heat dissipation in good condition.



If you are interested in the 65135 inrunner brushless motor for Electric Life-buoy, or if you need more detailed information about the product, please feel free to contact us. We look forward to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other scenarios with high-performance requirements, the X-TEAM motor can provide stable and reliable power output. For more information or to order a BLDC motor, you can contact us in the following ways:

Tel: +86-769-85228181

Email: chris@x-teamrc.com

Additional information

Product model

65135

Motor Type

Inrunner

Configuration

18N16P

KV

255KV

Voltage

36V

Rated Current

60A

Power

2150W

Rated RPM

8180 RPM

Rated Torque

2.0N.m

Max Current

160A

Max Torque

5.2N.m

Sensored/Sensorless

Sensorless

Ingress Protection

IP68
