6215B Brushless motor for agriculture drone

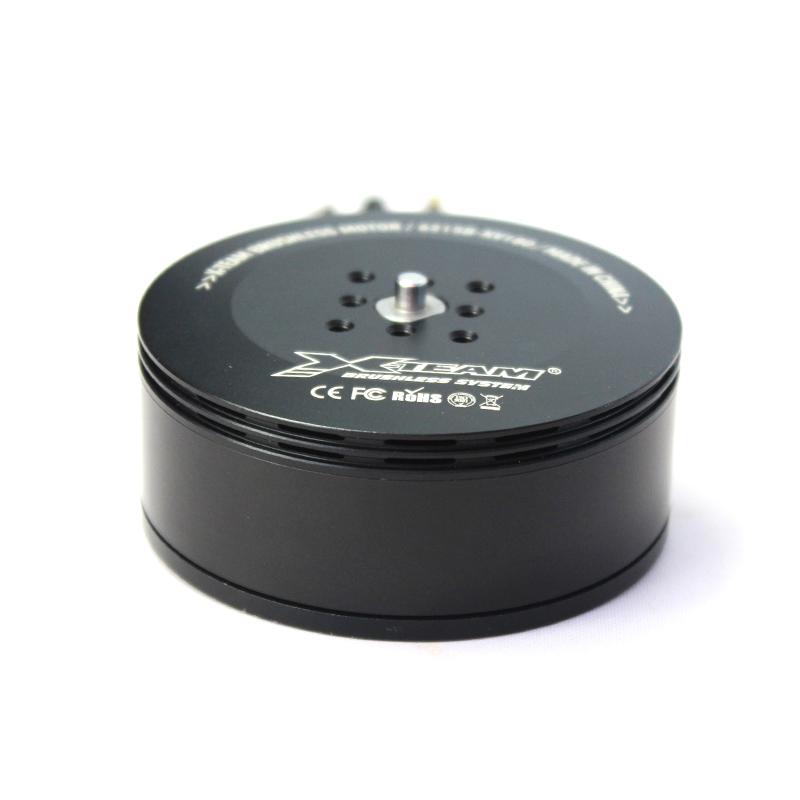

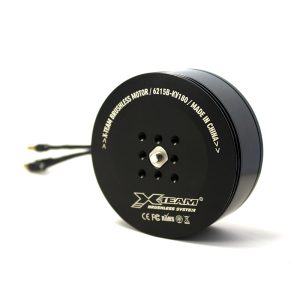

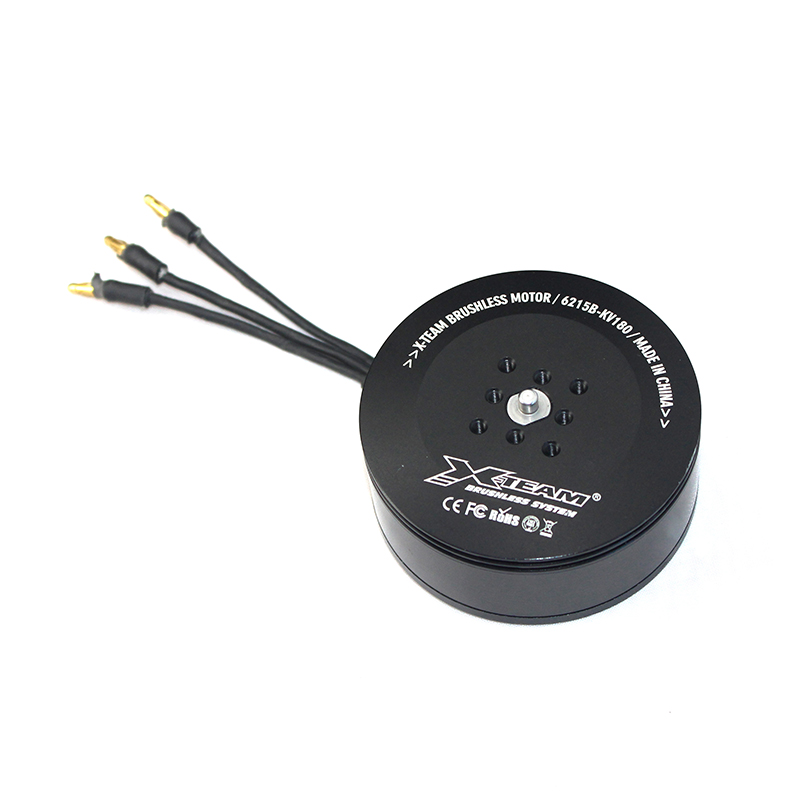

X-TEAM 6215B Brushless motor for agriculture drone

Description

The 6215B Brushless motor for agriculture drone is a high-efficiency brushless DC motor specifically designed for applications that require high torque and high efficiency, and it particularly stands out in terms of reliability. It is widely used in fields such as drones, model cars, and power tools. With its excellent performance and structural advantages, it meets the strict requirements of these industries for motors. Its features lie in its stable operation and long service life. It adopts a brushless design, which can reduce mechanical wear, extend the service cycle, and significantly improve efficiency at the same time. In applications that require precise control and high power output, the 6215B Brushless motor for agriculture drone is undoubtedly an ideal choice.

6215B Brushless motor for agriculture drone

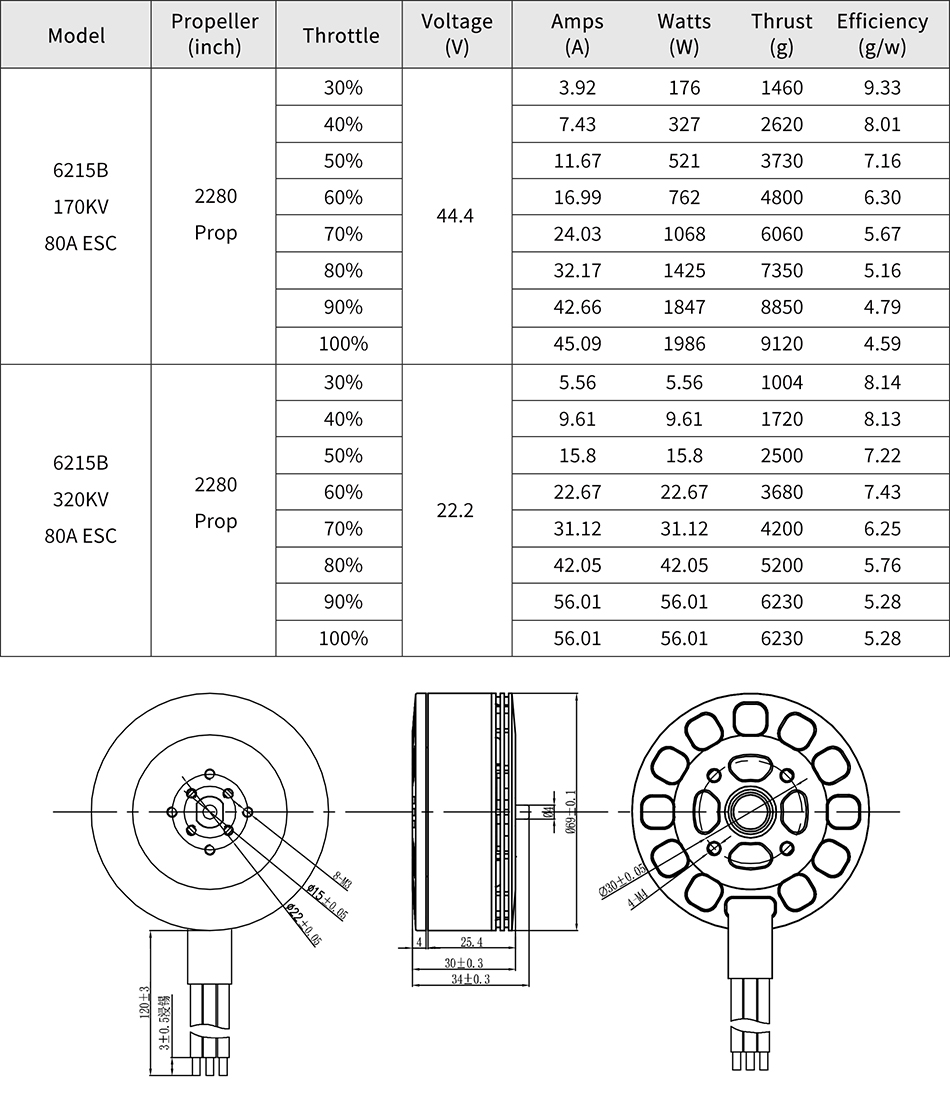

Performance Parameters

Model: XTA6215B

Voltage Range: Supports 6-12S LiPo batteries, with strong compatibility, suitable for application scenarios with different power requirements.

KV Value: Two versions of 170KV and 320KV are provided to meet different requirements for rotational speed and torque.

No-load Current: At a voltage of 7.4V, the no-load current is 0.8A.

Maximum Power: The continuous power can reach 1850W (for 300 seconds)

Weight: 318g

Dimensions: Φ69x34mm

Rotor Mounting Holes: Φ15/22mm 4xM3, providing multiple installation options for easy matching with rotors of different sizes.

Stator Mounting Holes: Φ30mm 4xM4, the sturdy stator mounting structure ensures the stability and durability of the motor.



Structural Features

High-efficiency Design: Adopting an advanced magnetic circuit design and an optimized winding structure, it improves the efficiency and output power of the motor.

High-precision Machining: All components are processed with high precision and undergo strict quality control to ensure the performance and reliability of the motor.

Excellent Heat Dissipation Performance: Using an optimized heat dissipation design, it effectively reduces the temperature of the motor during long-term operation and extends its service life.

Easy Installation and Maintenance: The compact structural design and standardized installation interfaces make the motor easy to install and maintain.

6215B Brushless motor for agriculture drone

Application Fields

Model Aircraft and Drones: As a power source, it provides strong thrust for fixed-wing model aircraft, multi-rotor drones, etc., meeting the task requirements of long-time flights, highly maneuverable flights, and heavy-load takeoffs.

Industrial Equipment: In some industrial automation equipment that requires high-precision speed control and high torque output, such as the auxiliary drives of CNC machine tools and the conveying devices of automated production lines, this motor can accurately complete the power transmission tasks, improving production efficiency and product quality.

Robots: It provides power support for various robots, including the walking drives of mobile robots and the joint rotations of robotic arms, ensuring the flexibility, accuracy, and stability of the robots’ movements and adapting to complex and changeable working environments.



Precautions

Safe Operation: When using the motor, please ensure that you comply with relevant safety regulations and operating procedures to avoid accidents.

Voltage Matching: Please ensure that the voltage of the battery used matches the voltage range of the motor to avoid damaging the motor or affecting its performance.

Heat Dissipation Management: In the case of long-term operation or high load, please ensure that the motor can be fully cooled to avoid damage due to overheating.

Regular Inspection: Please regularly check the installation and connection of the motor to ensure that all components are firmly fastened and reliable, and avoid loosening or falling off.

Maintenance: Regularly perform maintenance work such as cleaning and lubricating the motor to extend its service life and maintain its best performance.



If you are interested in the 6215B Brushless motor for agriculture drone or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us in the following ways:

Tel: +86-769-85228181

Email: chris@x-teamrc.com

Additional information

Product model

XTA6215B

Voltage

6~12S LiPo

KV

170KV, 320KV

No Load Current

0.8A (7.4V)

Max Power

1850W (300s)

Weight

318g

Size

Φ69x34mm

Rotor mounting holes

Φ15/22mm 4xM3

Stator mounting holes

Φ30mm 4xM4
