Description

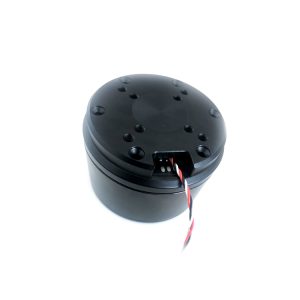

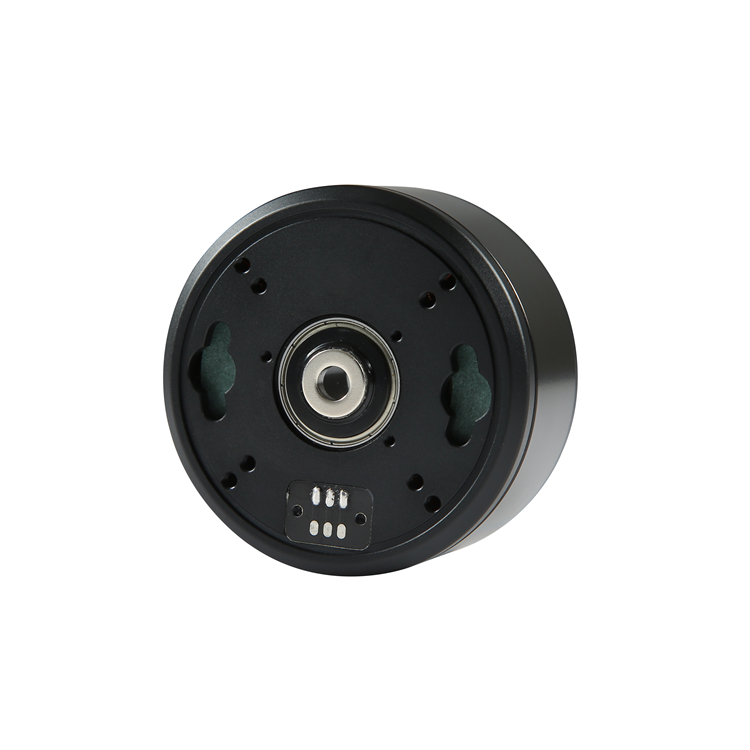

The 6025 Gimbal brushless motor is a high-performance brushless DC (BLDC) motor, specifically designed for application scenarios that require high torque, high efficiency, and precise control. Thanks to its compact structure, powerful performance parameters, and advanced configuration, the 6025 Gimbal brushless motor has become an ideal choice for fields such as drone gimbals, precision camera stabilizers, and robotic joint drives.
Performance Parameters
Product Model: XTG6025
Weight: 470.7 grams
Stator Dimensions (Diameter x Length): Φ60x25mm
Configuration: 24N28P (24 pole pairs, 28 slots), with an optimized electromagnetic design that enhances the motor’s dynamic response and efficiency.
Number of Turns: 90T
Voltage Range: 12~24V
Torque: At a voltage of 14.8V, the maximum torque can reach 2.1N.m, meeting high-load requirements.
Resistance: 8.48Ω
No-load Current: 145mA
Maximum Stall Current: 3.5A

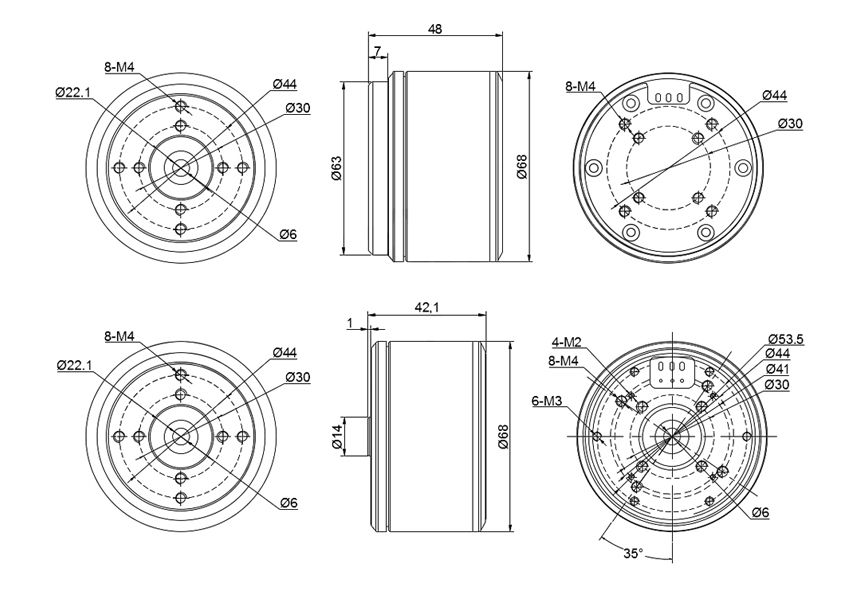

Stator Mounting Holes: Φ53.5mm, equipped with 6 M3 threaded holes for easy fixed installation.
Rotor Mounting Holes: Two specifications are provided (Φ30mm 4xM4 and Φ44mm 4xM4) to adapt to different installation needs.
Maximum Load Capacity: It can support a gimbal or camera weighing up to 10,000 grams, meeting professional-level application requirements.

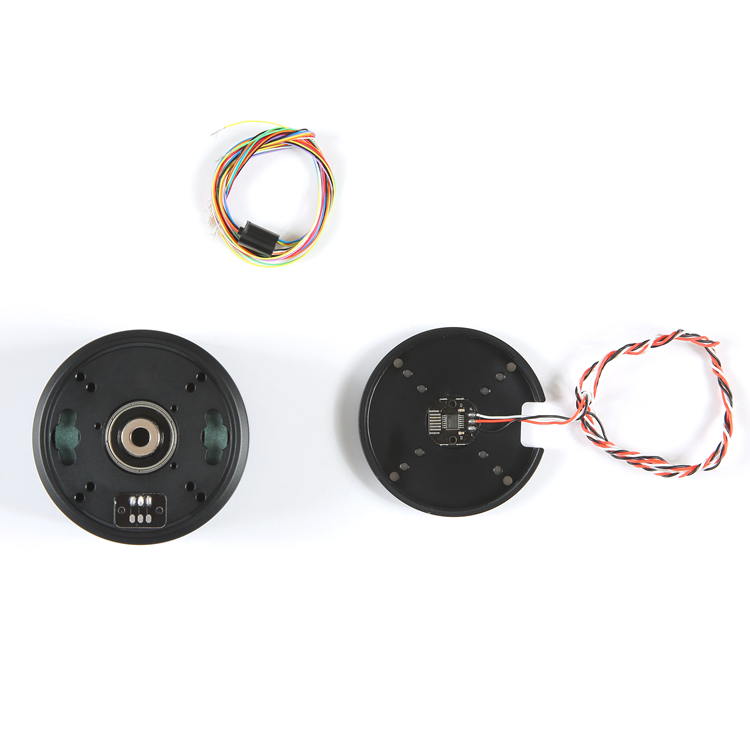

Encoder: The AS5048A encoder is used to provide high-precision position feedback for precise control.
Slip Rings: 12.5mm/22mm
Structural Features
Compact Design: The combination of a small size and an efficient heat dissipation structure ensures the motor remains stable and reliable even under high-intensity operation.
High-precision Encoder: The AS5048A encoder provides accurate position information, laying the foundation for a closed-loop control system and improving the precision and smoothness of motion control.
Multiple Mounting Options: Multiple rotor mounting hole configurations are provided, flexibly adapting to different installation scenarios and facilitating system integration.
High Torque Output: It can provide sufficient torque even at low voltages, meeting the requirements of heavy-duty applications.
Application Areas
Drone Gimbals: Provide a stable perspective for aerial photography to ensure shooting quality.
Camera Stabilizers: Keep the footage stable during handheld or mobile shooting.
Robotic Joint Drives: Provide precise and efficient joint power for robots.
Industrial Automation: Serve as a precision drive component in automated production lines.
Precautions
Safe Operation: Ensure that the power supply is correctly connected and the voltage is within the specified range. Avoid using it in wet or flammable environments to prevent electric shock or fire.
Proper Installation: Install the motor and its accessories correctly according to the instructions in the product manual. Ensure that all fixing screws are tightened to avoid loosening during operation.
Heat Dissipation Management: When avoiding long-term high-load operation, pay attention to heat dissipation to prevent overheating from affecting performance.
Maintenance: Regularly check the motor and its connecting parts to ensure there is no damage or wear. If there is any abnormality, stop using it immediately and contact professional maintenance services.
If you are interested in the 6025 Gimbal brushless motor or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:
Telephone: +86-769-85228181
Email: chris@x-teamrc.com
