X-TEAM 6015 Gimbal brushless motor

Category: Tag:

Description

The 6015 Gimbal brushless motor is a high-quality brushless DC (BLDC) motor specifically designed to meet the requirements of high-precision and high-efficiency driving. With its compact structural design, optimized electromagnetic performance, and advanced control system, it performs excellently in a wide range of application scenarios, especially in fields that require precise control such as drone gimbals, camera stabilizers, small robots, and precision robotic arms.

6015 Gimbal brushless motor

Performance Parameters

Product Model: XTG6015

Weight: 315.7 grams

Stator Dimensions (Diameter x Length): Φ60x15mm

Configuration: 24N28P (24 pole pairs, 28 slots), with the optimized electromagnetic design enhancing the motor’s dynamic response and efficiency.

Number of Turns: 90T

Voltage Range: 12~24V

Torque: At a voltage of 14.8V, the maximum torque can reach 1.2N.m, meeting the needs of most applications.

Resistance: 15.8Ω

No-load Current: 91mA

Maximum Stall Current: 2.9A



Structural Features

Compact Design: The stator features a small size and light weight, making it easy to integrate into various compact devices.

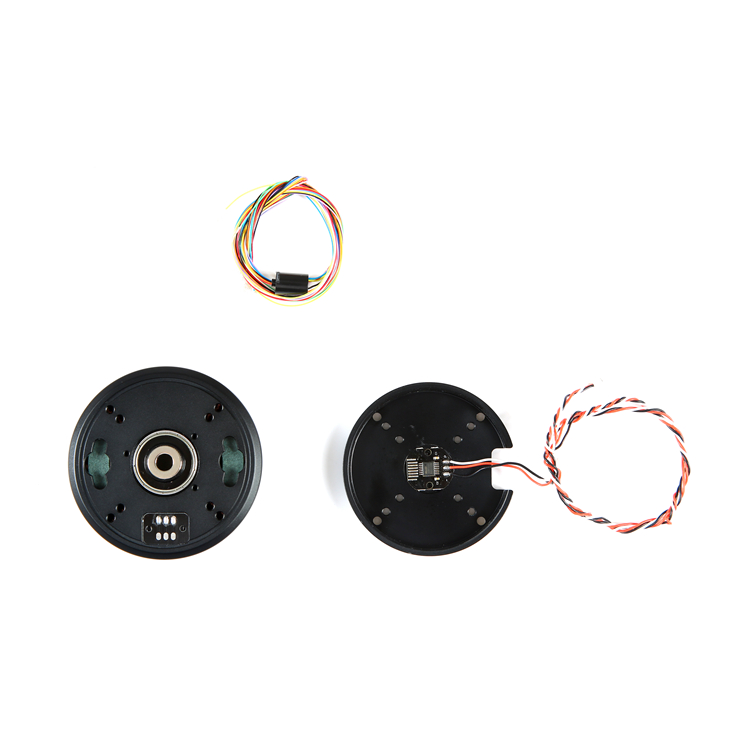

High-precision Encoder: The AS5048A encoder is adopted to provide accurate position information, laying the foundation for the closed-loop control system and enabling precise control.

Multiple Mounting Options: Both the stator mounting holes and the rotor mounting holes offer multiple specifications, adapting to different mounting requirements and facilitating system integration.

Efficient Heat Dissipation: The optimized heat dissipation structure ensures that the motor remains stable and reliable even under high-intensity operation.

6015 Gimbal brushless motor

Application Areas

Drone Gimbals: Provide a stable perspective for aerial photography to ensure shooting quality.

Camera Stabilizers: Keep the footage stable during handheld or mobile shooting.

Small Robots: Provide precise and efficient joint power for robots.

Precision Robotic Arms: Serve as precise drive components in industrial automation to improve production efficiency.



Precautions

Safe Operation: Before operation, ensure that the power supply is correctly connected and the voltage is within the specified range. Avoid using it in wet or flammable environments to prevent electric shock or fire.

Proper Installation: Install the motor and its accessories correctly according to the instructions in the product manual. Ensure that all fixing screws are tightened firmly to avoid loosening during operation.

Heat Dissipation Management: When the motor is under high load or runs for a long time, it will generate heat. It is recommended to take appropriate heat dissipation measures according to the actual usage situation, such as adding heat sinks or fans, to ensure the normal operation of the motor.

Maintenance: Regularly check the motor and its connecting components to ensure there is no damage or wear. If there is any abnormality, stop using it immediately and contact professional maintenance services.



If you are interested in the 6015 Gimbal brushless motor or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:

Telephone: +86-769-85228181

Email: chris@x-teamrc.com

Additional information

Product model

XTG6015

Weight

315.7g

Stator dimension(DxL)

Φ60x15mm

Configuration

24N28P

Turns

90T

Voltage

12~24V

Torque

1.2N.m@14.8v

Resistance

15.8Ω

No Load Current

91mA

Max RPM stall current

2.9A

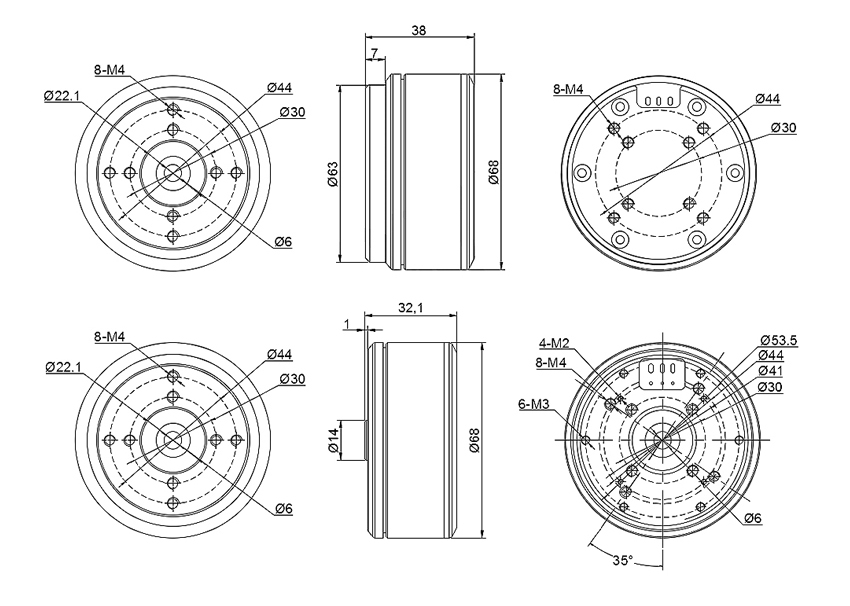

Stator mounting holes

Φ53.5 6xM3

Rotor mounting holes

Φ30mm 4xM4,Φ44mm 4xM4

Max weight of gimbal/camera

4000g

Encoder

AS5048A

Slipring
