6010 Gimbal brushless motor

Description

The 6010 Gimbal brushless motor is a high-quality brushless DC (BLDC) motor specifically designed for applications such as drone gimbals, camera stabilizers, small robots, and other applications that require high precision and high-efficiency driving. Its ultra-compact structural design, optimized electromagnetic performance, and integrated advanced control system make it unique in the market.

Performance Parameters

Product Model: XTG6010

Weight: 231.8 grams

Stator Size (Diameter x Length): Φ60x10mm. The compact size ensures that the motor can be perfectly adapted to various applications with limited space.

Configuration: 24N28P (24 pole pairs, 28 slots). The optimized electromagnetic design improves the dynamic response and efficiency of the motor.

Number of Turns: 90T

Voltage Range: 12~24V

Torque: Under a voltage of 14.8V, the maximum torque can reach 0.8N.m, meeting the requirements of most applications.

Resistance: 11.8Ω

No-load Current: 90mA

Maximum Stall Current: 2.5A

Structural Features

Ultra-compact Design: The stator has a small size and light weight, making it easy to integrate into various compact devices. It is especially suitable for applications such as drone gimbals and camera stabilizers.

High-precision Encoder: The AS5048A encoder is adopted to provide accurate position information, laying the foundation for the closed-loop control system and enabling precise control.

Multiple Mounting Options: The stator mounting holes and rotor mounting holes are available in various specifications to meet different mounting requirements and facilitate system integration.

Efficient Heat Dissipation: Although it is small in size, the motor is designed with an efficient heat dissipation structure to ensure stable and reliable operation even under high-intensity work.

Low-noise Operation: The optimized electromagnetic design and precise manufacturing process make the motor run with extremely low noise, which is suitable for application scenarios sensitive to sound.

Application Fields

Drone Gimbals: Provide a stable perspective for aerial photography and ensure the shooting quality.

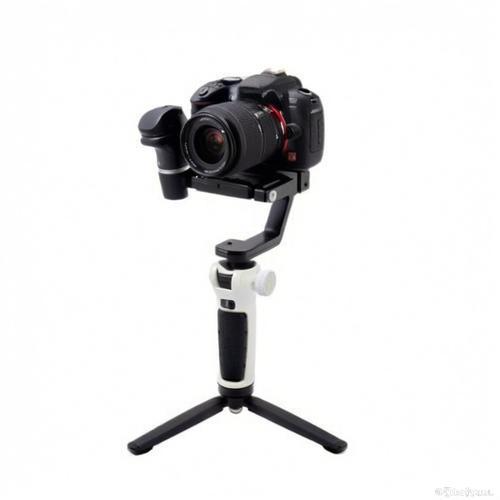

Camera Stabilizers: Keep the picture stable during handheld shooting or mobile shooting.

Small Robots: Provide precise and efficient joint power for robots.

Precision Robotic Arms: Serve as precise driving components in industrial automation to improve production efficiency.

Precautions

Safe Operation: Before operation, ensure that the power supply is correctly connected and the voltage is within the specified range. Avoid using it in wet or flammable environments to prevent electric shock or fire.

Proper Installation: Install the motor and its accessories correctly according to the instructions in the product manual. Ensure that all fixing screws are tightened in place to avoid loosening during operation.

Heat Dissipation Management: Pay attention to heat dissipation to avoid performance degradation due to overheating. It is recommended to regularly check the heat dissipation system to ensure it is clean and unobstructed.

Maintenance: Regularly inspect the motor and its connecting components to ensure there is no damage or wear. If there is any abnormality, stop using it immediately and contact professional maintenance services.

If you are interested in the 6010 Gimbal brushless motor or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:
