Description
The 58180 inrunner brushless motor for industrial robot is a high-performance inrunner motor that is widely used in industrial and high-performance fields. This motor features an exquisite design and combines multiple advanced technologies to ensure high efficiency and stability even when delivering high-speed and high-torque output. The motor’s configuration of 18 slots and 6 poles helps optimize torque performance and running smoothness, making it stand out among similar products.
Performance Parameters
Product Model: 58180
Motor Type: Inrunner
Configuration: 18 slots and 6 poles (18N6P)
Dimensions: Φ58×180 mm
Outer Diameter and Extension of the Shaft: Φ10×32 mm
Mounting Holes: M4xΦ48 mm
Voltage Range: 36V~60V
Maximum Rotational Speed: 25,000 RPM
KV Value: 490 KV
No-load Current: 3.5A
Rated Torque: 2 N.m
Rated Current: 80A
Sensor/No Sensor: Sensorless
Maximum Power: 9,000W
Maximum Torque: 3.2 N.m
Maximum Current: 150A
Weight: 1500 grams
Protection Level: IP57
Structural Features
High Efficiency: With a high rotational speed (25,000 RPM) and high power (9,000W), it becomes the first choice for applications requiring high performance.
Sensorless Design: It simplifies the circuit design, reduces costs, and improves reliability at the same time.
Compact and Lightweight: With dimensions of only Φ58×180 mm and a weight of 1500 grams, it is suitable for applications with limited space.
Dustproof and Waterproof: The IP57 protection level ensures reliable operation even in dusty or humid environments.

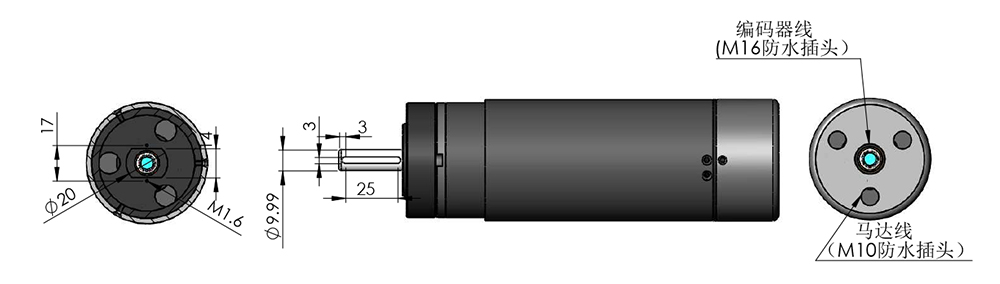

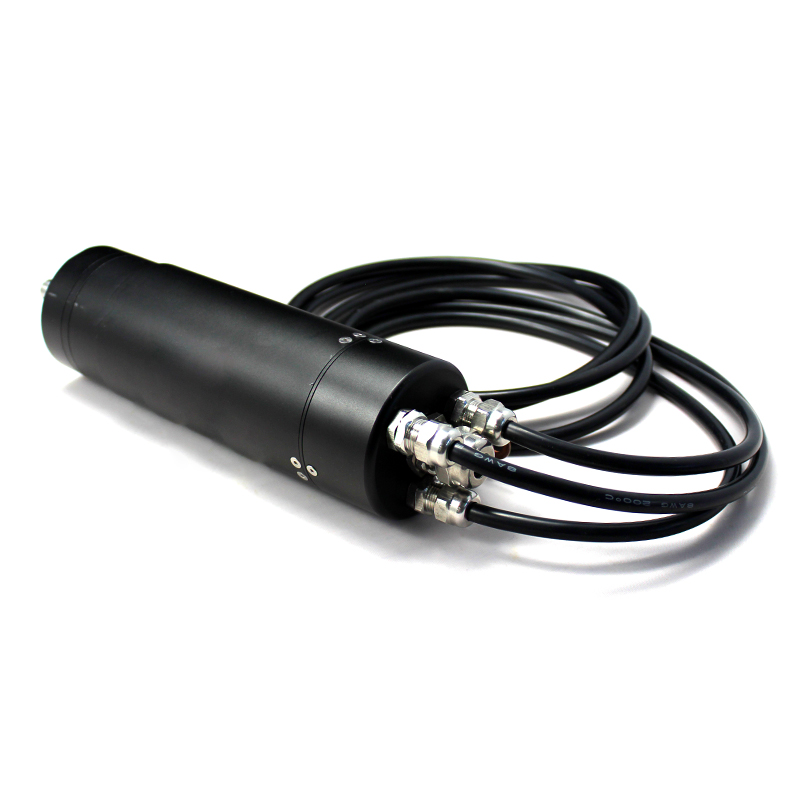

Electrical Connection: The encoder cable uses an M16 waterproof plug, and the motor cable uses an M10 waterproof plug to ensure stable and reliable connections.
Application Scope
Robots: Suitable for various industrial robots, service robots, and drones, providing strong power and precise control.
Drones: The high rotational speed and high torque make it an ideal choice for aerial photography and racing drones.
Power Tools: Such as electric drills, electric hammers, etc.
Precautions
Proper Connection: Ensure that the encoder cable and the motor cable are correctly connected to the M16 and M10 waterproof plugs respectively to avoid device damage or performance degradation caused by incorrect interfaces.
Waterproof Treatment: Although the plugs have waterproof functions, it is still necessary to ensure good sealing at the connection points. Especially when used outdoors or in humid environments, the waterproof effect should be regularly checked.
Voltage and Current: When in use, ensure that the supplied voltage and current are within the working range of the motor to avoid damage to the motor caused by excessively high or low voltage.
Heat Dissipation Measures: Due to the high-power and high-speed characteristics of this motor, a large amount of heat will be generated during operation. It is necessary to ensure that there is sufficient heat dissipation space around the motor or take necessary heat dissipation measures to prevent overheating.
Firm Installation: Ensure that the motor is firmly installed to avoid damage to the motor or disconnection of the interface caused by vibration or looseness.
Regular Maintenance: It is recommended to regularly check the connection parts, heat dissipation condition, and protection level of the motor to ensure the long-term stable operation of the motor.
If you are interested in the 58180 inrunner brushless motor for industrial robot, or if you need more detailed information about the product, please feel free to contact us. We look forward to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other scenarios with high-performance requirements, the X-TEAM motor can provide stable and reliable power output. For more information or to order a BLDC motor, you can contact us in the following ways:
Tel: +86-769-85228181
Email: chris@x-teamrc.com
