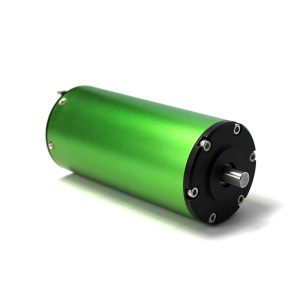

53113 inrunner brushless motor for Electric Life-buoy

X-TEAM 53113 inrunner brushless motor for Electric Life-buoy

Description

The 53113 inrunner brushless motor for Electric Life-buoy, with its excellent power and durable design, has become an ideal choice for various electric devices. Whether it is for robots, drones, or power tools, it can provide strong and stable power support to meet various demanding working environments.

53113 inrunner brushless motor for Electric Life-buoy

Performance Parameters

Type: Inrunner Motor (Inrunner)

Configuration: 4 slots and 12 poles

Dimensions: Φ53 x 113 mm

Outer Diameter and Extension of the Shaft: Φ8 x 15 mm

Mounting Holes: M3 x Φ25 mm

Voltage Range: 40V~100V

Maximum Rotational Speed: 13,000 RPM

KV Value: 270 KV

No-load Current: 1.5A (10V)

Rated Torque: 1.5 N·m

Rated Current: 33.5A

Sensor Configuration: Sensorless

Maximum Power: 7500W

Maximum Torque: 2.5 N·m

Maximum Current: 75A

Weight: 1150 grams

Protection Level: IP47, IP57

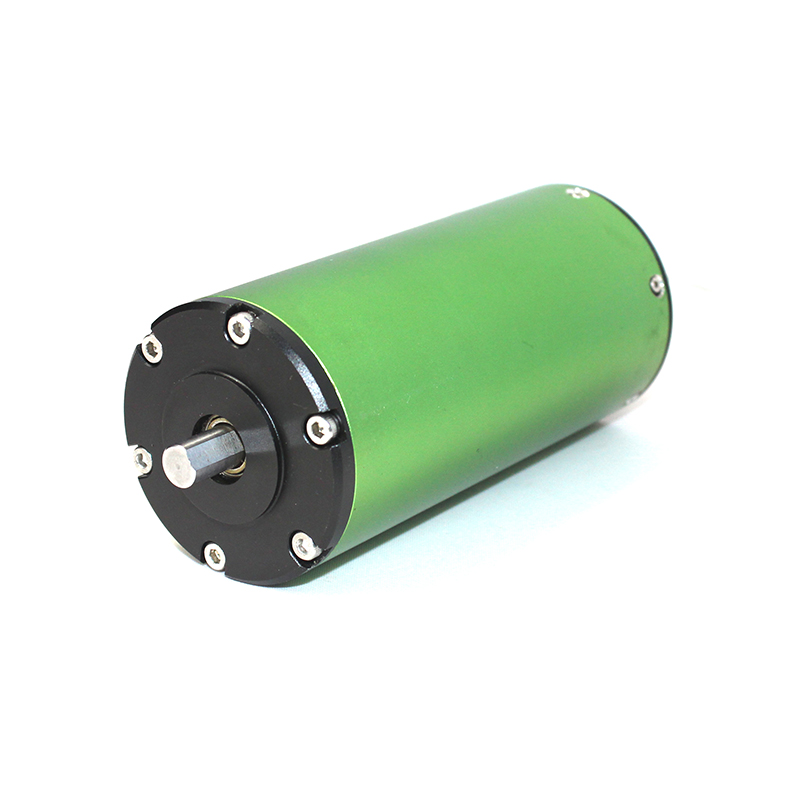

Structural Features

Total Motor Length: 113.2 mm

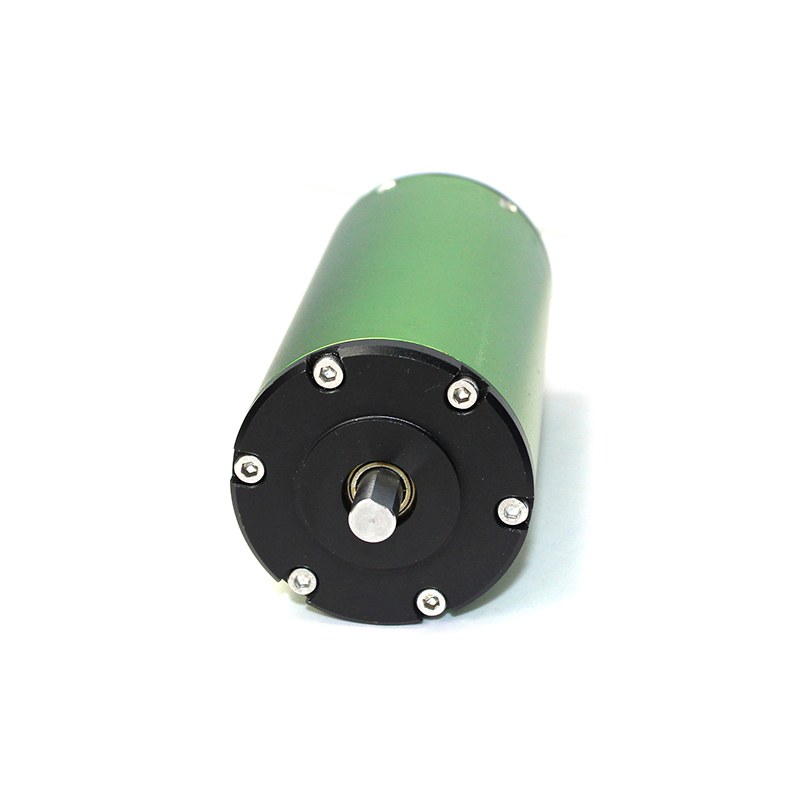

Front End Dimensions: The protruding part at the front end is 15 mm long, and the shaft diameter is Φ13.5 mm (tolerance ±0.5)

Shaft Length: The length from the front end to the rear end of the motor is 96.95 mm

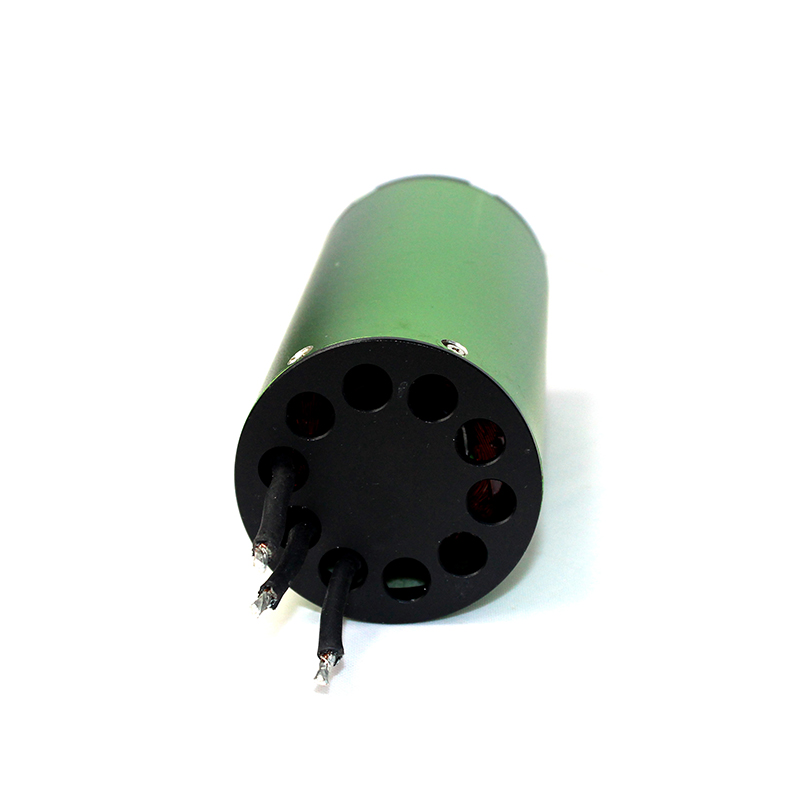

Lead-out Wire Length: 30 mm

53113 inrunner brushless motor for Electric Life-buoy

Application Fields

Robots: Suitable for industrial robots and special robots, it can provide efficient torque and rotational speed output.

Drones: Particularly suitable for high-performance applications such as multi-rotor drones, meeting their requirements for rotational speed and torque.

Power Tools: It serves as the power source for power tools such as electric drills and chainsaws, providing strong support and improving work efficiency.

Precautions

Voltage Matching: Please ensure that the operating voltage of the motor is within the range of 40V to 100V to avoid overloading or underloading.

Protection Level: Although the motor has protection levels of IP47 and IP57, it should still be avoided to be used for a long time in extreme environments, especially in water immersion or high-temperature environments.

Installation Requirements: Ensure that the motor shaft is aligned with the load shaft, and use appropriate fixing devices to reduce vibration and noise.

Current Monitoring: Monitor the current during use and avoid exceeding the maximum current range (75A) to prevent damage to the motor.

Heat Dissipation Measures: High-power operation may lead to overheating. It is recommended to install heat sinks or fans to ensure the long-term stable operation of the motor.



If you are interested in the 53113 inrunner brushless motor for Electric Life-buoy or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us in the following ways:

Tel: +86-769-85228181

Email: chris@x-teamrc.com

Additional information

Product model

53113

Motor Type

Inrunner

Configuration

12N4P

Size

Φ53x113mm

Shaft OD&Ext.

Φ8x15mm

Mounting Holes

M3xΦ25mm

Voltage

40V~100V

Max RPM

13000 RPM

KV

270KV

No Load Current

1.5A (10V)

Rated Torque

1.5N.m

Rated Current

33.5A

Sensored/Sensorless

Sensorless

Max Power

7500W

Max Torque

2.5N.m

Max Current

75A

Weight

1150g

Ingress Protection

IP47, IP57
