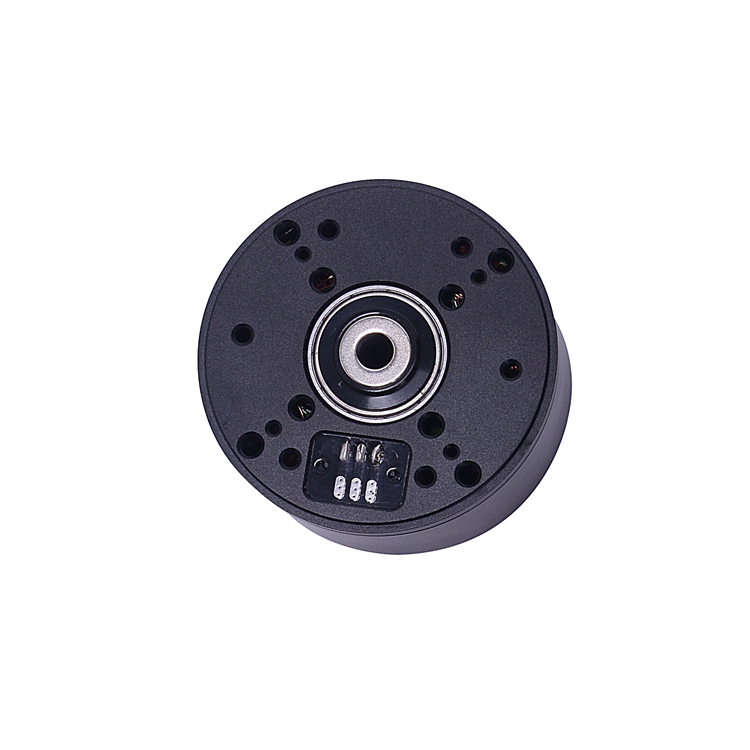

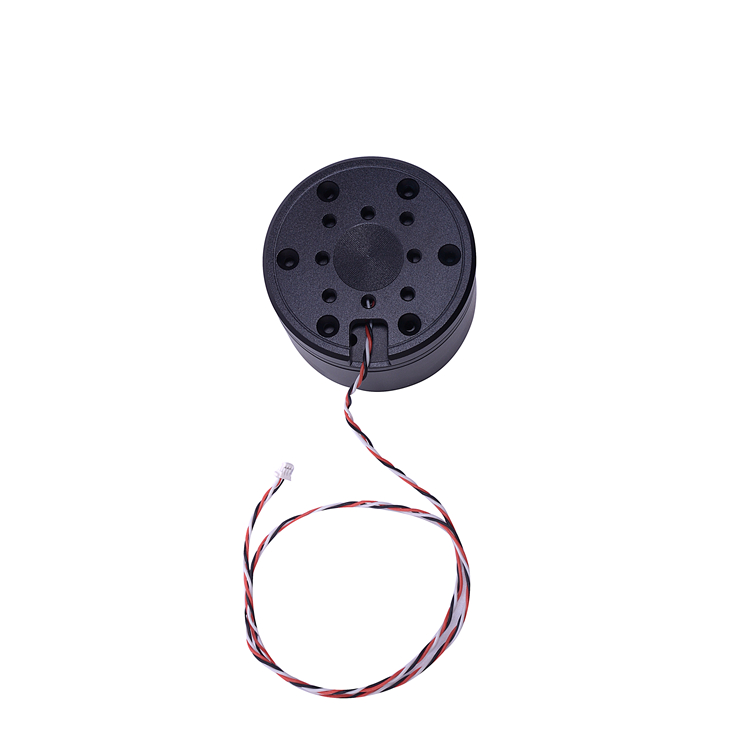

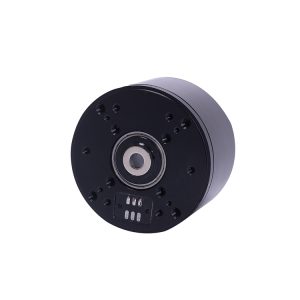

5225 Gimbal brushless motor

Description

The 5225 Gimbal brushless motor is a motor product specifically designed for high-precision and high-efficiency applications. With its compact structure, powerful torque output, and wide voltage adaptability, the XTG5225 has become an ideal choice for fields such as drone gimbals, precision robotic arms, and high-end photography equipment.

Performance Parameters

Product Model: XTG5225

Weight: 353.6 grams

Stator Size (Diameter x Length): Φ52x25mm

Configuration: 24N22P

Number of Turns: 80 turns

Voltage Range: 12~24V

Torque: Under a voltage of 14.8V, the output torque can reach as high as 1.1N.m, meeting high-load requirements.

Resistance: 12.4Ω

Maximum Stall Current: 2.7A

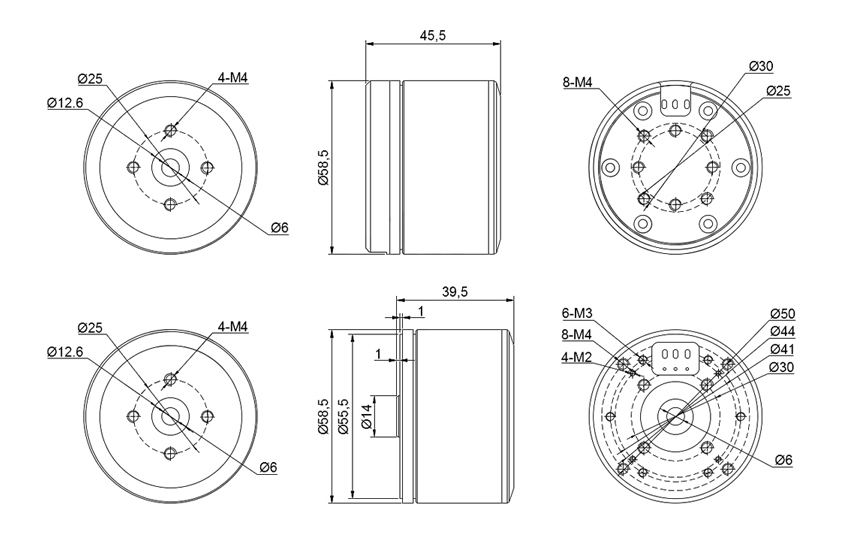

Stator Mounting Hole: Φ44mm

Rotor Mounting Hole: Φ25mm, with 4 M3 threaded holes to ensure a firm connection of the rotor components.

Maximum Load Capacity: It can support a gimbal or camera weighing up to 5500 grams, which is suitable for heavy-duty photography and stabilization systems.

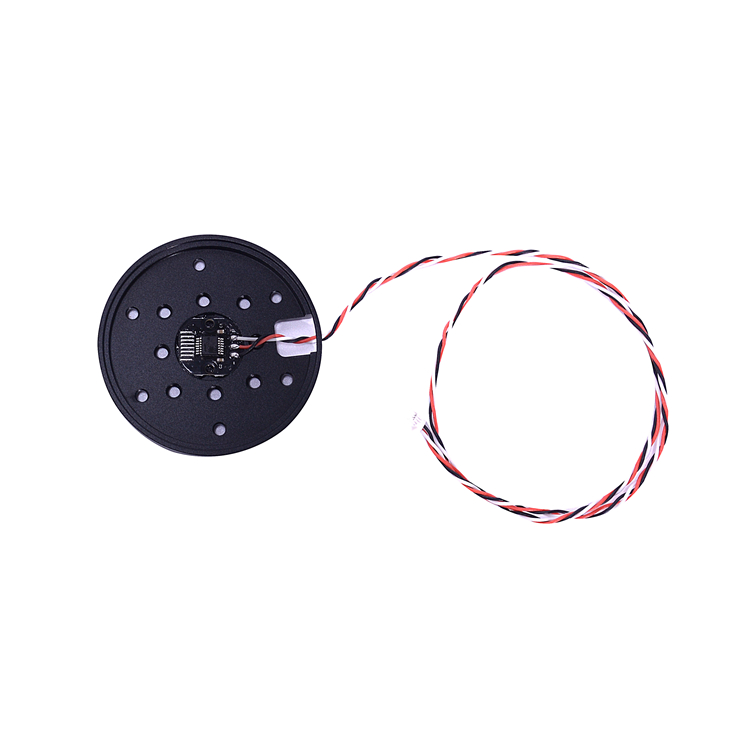

Encoder: The AS5048A is adopted to provide high-precision position feedback for precise control.

Slip Ring: With a diameter of 12.5mm

Structural Features

The 5225 Gimbal brushless motor adopts advanced brushless DC technology, which reduces friction and wear, and improves efficiency and service life. The design of its stator and rotor optimizes the magnetic field distribution, making the torque output smoother and the noise lower. The AS5048A encoder provides high-precision position information, making the motor control more accurate and suitable for occasions requiring high-precision position control.

Application Fields

Micro Camera Gimbals: With a 4kg load capacity, it is suitable for action cameras or mobile phone holders. The ultra-light design improves portability and battery life.

Desktop-level Robotic Arms: It operates with low torque and low noise, making it suitable for light automation devices such as educational robots and 3D printing pens.

Medical Micro Devices: Such as dental surgical handpieces and endoscope steering mechanisms. Its characteristic of no electromagnetic interference ensures the safety of the equipment.

Smart Wearable Gimbals: Integrated into AR/VR headsets or motion tracking devices, it can achieve low-power and high-precision angle adjustment.

Precautions

Safe Operation: Ensure that you are familiar with the motor’s usage instructions and follow all safety specifications. Avoid using the motor in wet, high-temperature, or flammable environments.

Voltage Matching: Ensure that the power supply voltage is within the rated voltage range of the motor to avoid overheating or damage to the motor.

Load Control: Do not exceed the maximum load capacity of the motor to prevent permanent damage to the motor.

Regular Maintenance: Regularly check the installation, connection, and operating status of the motor. Clean up dust and debris in a timely manner to keep the motor clean.

Professional Maintenance: If the motor malfunctions, please have it repaired by a professional. Do not disassemble or repair it privately.

If you are interested in the 5225 Gimbal brushless motor or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:
