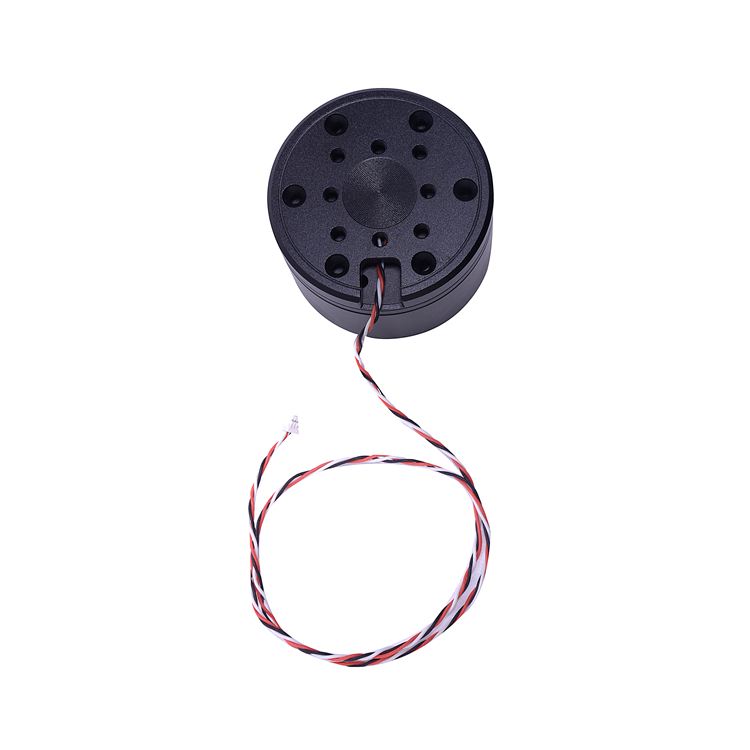

5220 Gimbal brushless motor

Description

The 5220 Gimbal brushless motor is a compact brushless DC motor (BLDC) specifically designed for small and medium-sized high-precision motion control devices. With its lightweight body of 296.4g, balanced torque output, and stable encoding feedback system, this model is widely used in scenarios such as lightweight gimbals, joints of small robots, and calibration of precision instruments, providing reliable power support for applications with limited space and high performance requirements.

Performance Parameters

Product Model: XTG5220

Weight: 296.4g

Stator Size (Diameter x Length): Φ52x20mm

Configuration: 24N22P, that is, 24 pole pairs and 22 commutation poles, providing smooth and efficient operation.

Number of Turns: 80 turns

Voltage Range: 12~24V

Torque: Under a voltage of 14.8V, the output torque can reach as high as 0.9N.m.

Resistance: 10Ω

No-load Current: 90mA

Maximum Stall Current: 2.6A

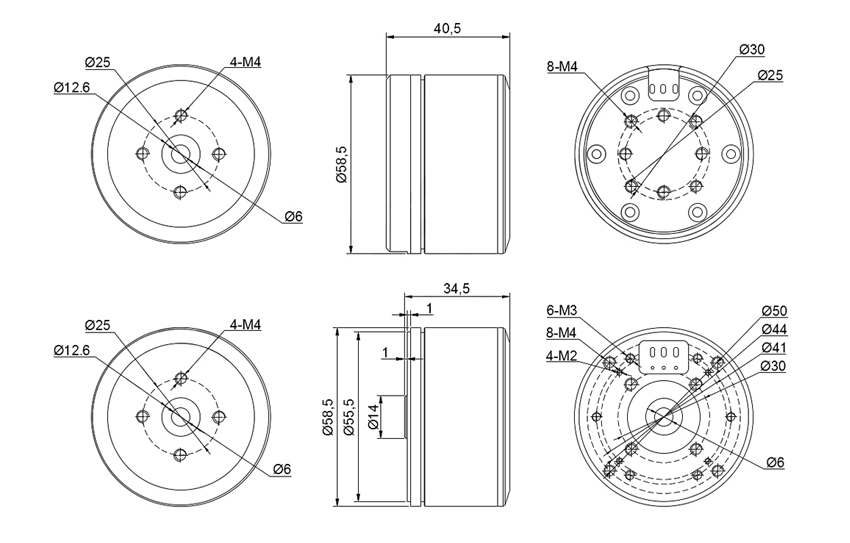

Stator Mounting Hole: Φ44mm, equipped with 6 M3 threaded holes for easy fixing and installation.

Rotor Mounting Hole: Φ25mm, with 4 M3 threaded holes to ensure a firm connection of the rotor components.

Maximum Load Capacity: It can support a gimbal or camera weighing up to 4000 grams, suitable for various photography and stabilization systems.

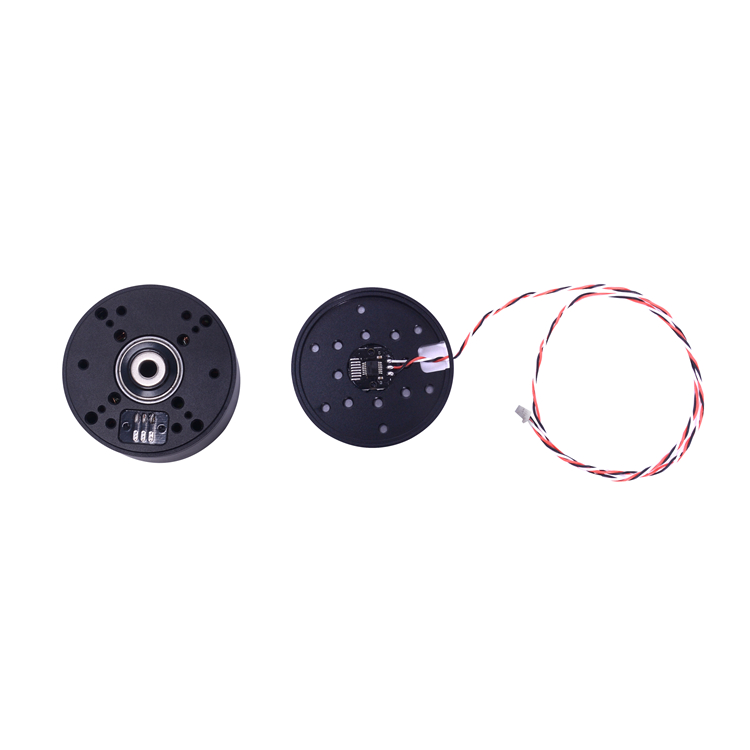

Encoder: The AS5048A is adopted to provide high-precision position feedback for precise control.

Slip Ring: With a diameter of 12.5mm

Structural Features

The 5220 Gimbal brushless motor adopts advanced brushless DC technology, which reduces friction and wear, and improves efficiency and service life. The design of its stator and rotor optimizes the magnetic field distribution, making the torque output smoother and the noise lower. The AS5048A encoder provides high-precision position information, making the motor control more accurate and suitable for occasions requiring high-precision position control. The 5220 Gimbal brushless motor is also equipped with a slip ring to ensure the electrical connection between the rotating parts and the fixed parts, suitable for applications that require continuous rotation.

Application Fields

Due to its high performance and compact design, the 5220 Gimbal brushless motor is widely used in occasions such as drone gimbals, photography stabilizers, small robots, and precision robotic arms that require high-precision and high-efficiency power output. Whether in professional photography, film and television production, or industrial automation and scientific research exploration, the 5220 Gimbal brushless motor can provide reliable support.

Precautions

Safe Operation: Ensure that you are familiar with the motor’s usage instructions and follow all safety specifications. Avoid using the motor in wet, high-temperature, or flammable environments to prevent electric shock or fire.

Voltage Matching: Ensure that the power supply voltage is within the rated voltage range of the motor to avoid overheating or damage to the motor.

Load Control: Do not exceed the maximum load capacity of the motor to prevent permanent damage to the motor.

Regular Maintenance: Regularly check the installation, connection, and operating status of the motor. Clean up dust and debris in a timely manner to keep the motor clean.

Professional Maintenance: If the motor malfunctions, please have it repaired by a professional. Do not disassemble or repair it privately to avoid damaging the motor or causing potential safety hazards.
