5210 Gimbal brushless motor

Description

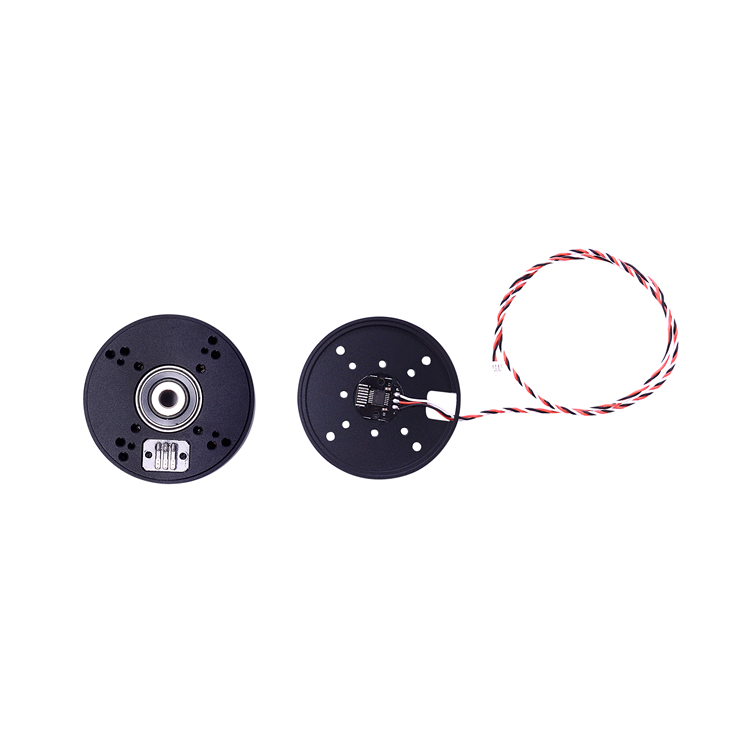

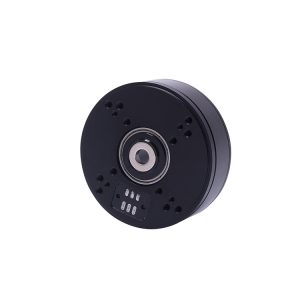

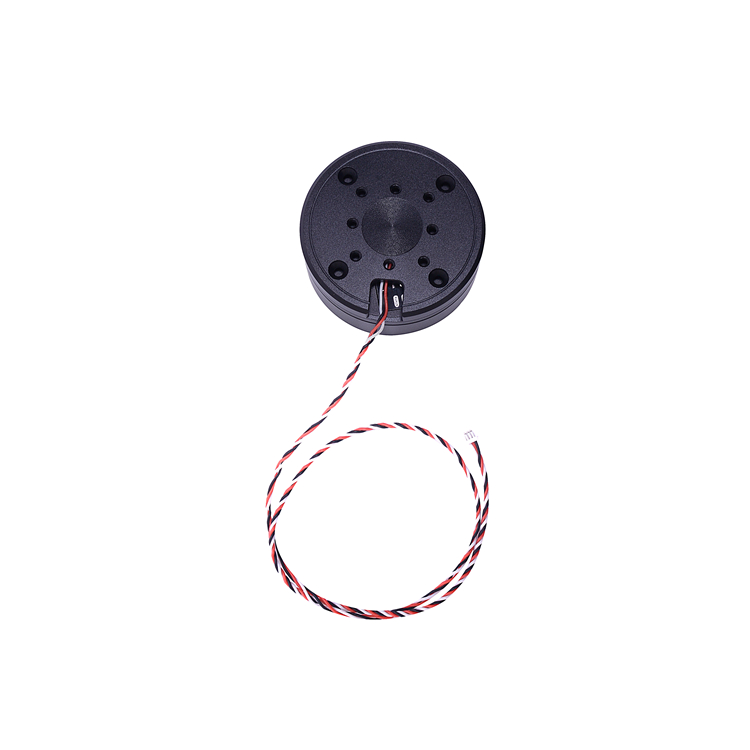

The 5210 Gimbal brushless motor is a high-quality motor specifically designed for high-performance applications. This motor weighs only 175.4 grams, with an extremely lightweight body, low power consumption, and flexible installation interfaces. It is widely used in various fields such as miniature gimbals, desktop robots, medical handheld tools, and smart wearable devices. It provides an efficient power solution for space-sensitive applications.

Performance Parameters

Model: XTG5210

Weight: 175.4 grams

Stator Size (Diameter x Length): Φ52x10mm

Configuration: 24N22P

Number of Turns: 80T

Voltage Range: 12~24V

Torque: 0.6N.m@14.8V

Resistance: 6Ω

No-load Current: 89mA

Maximum Stall Current: 2.1A

Structural Features

Extremely Lightweight Design:

The XTG5210 motor weighs only 175.4g, and the stator size is Φ52mm×10mm. Without sacrificing performance, it reduces the volume and weight burden of the equipment, making it suitable for applications with limited space.

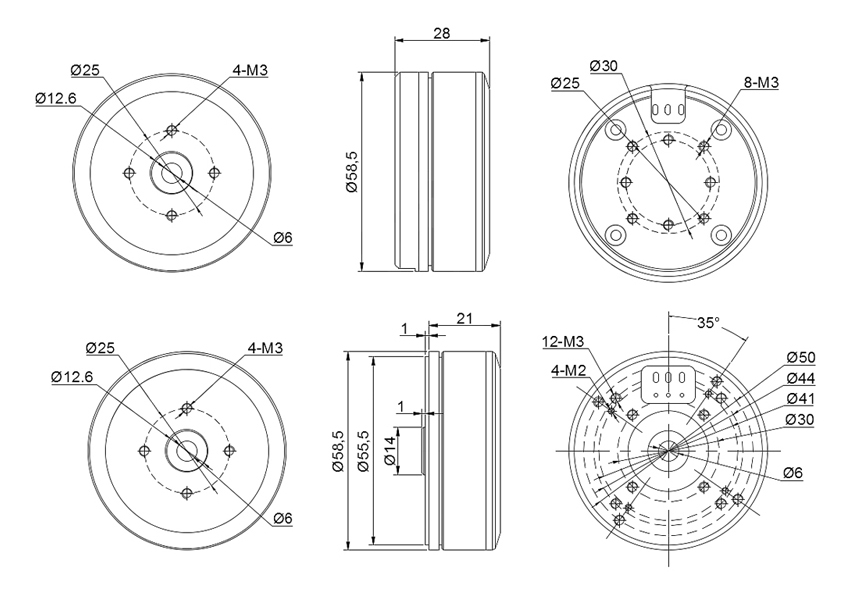

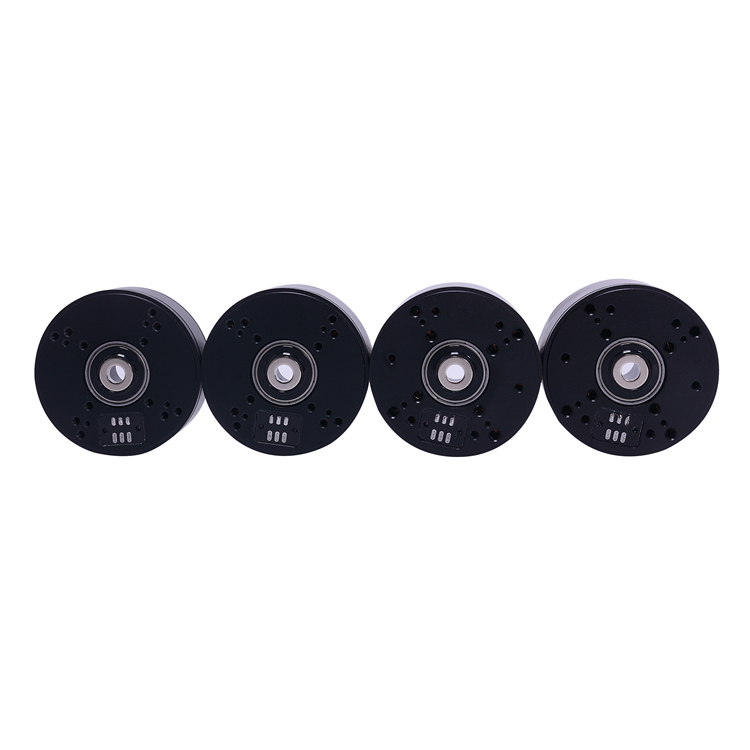

Installation Interface: The diameter of the stator mounting holes of the motor is Φ44mm, equipped with 4 M3 threaded holes; the diameter of the rotor mounting holes is Φ25mm, equipped with 4 M3 threaded holes. The diversified installation interface design enables easy integration into various mechanical structures.

High Precision and Reliability: The 5210 Gimbal brushless motor adopts a 24N22P winding configuration and 80T coil turns, optimizing the electromagnetic performance of the motor. While achieving high torque output, it maintains high energy conversion efficiency.

Application Areas

Gimbal Systems: Provide stable camera support to ensure clear and stable images.

Photographic Equipment: Provide precise rotation control for cameras and camcorders.

Industrial Automation: Provide precise position and speed control in scenarios such as robots and automated production lines.

Aerospace: Provide reliable drive support in aircraft such as drones.

Precautions

Power Supply Voltage: Please ensure that the power supply voltage is within the range of 12~24V to avoid exceeding the rated voltage of the motor.

Load Control: Avoid exceeding the maximum load capacity of the motor (3000 grams) to prevent the motor from overheating or being damaged.

Heat Dissipation: Ensure that the motor operates under good heat dissipation conditions and avoid long-term overload operation.

Installation: During the installation process, please ensure that all fasteners are correctly installed and tightened to avoid failures caused by looseness.

Maintenance: Regularly check the operating status of the motor, including temperature, noise, etc., to ensure that the motor is in good working condition.
