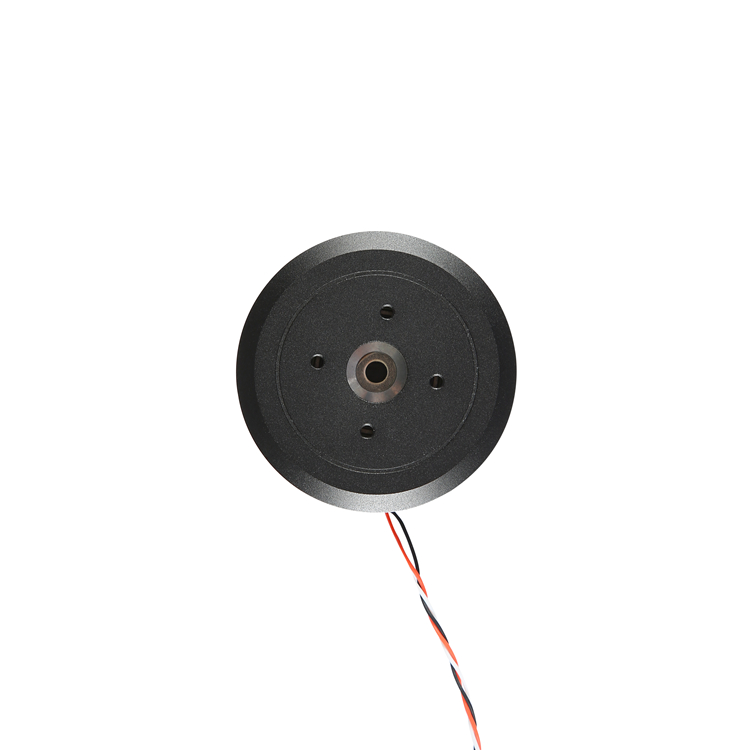

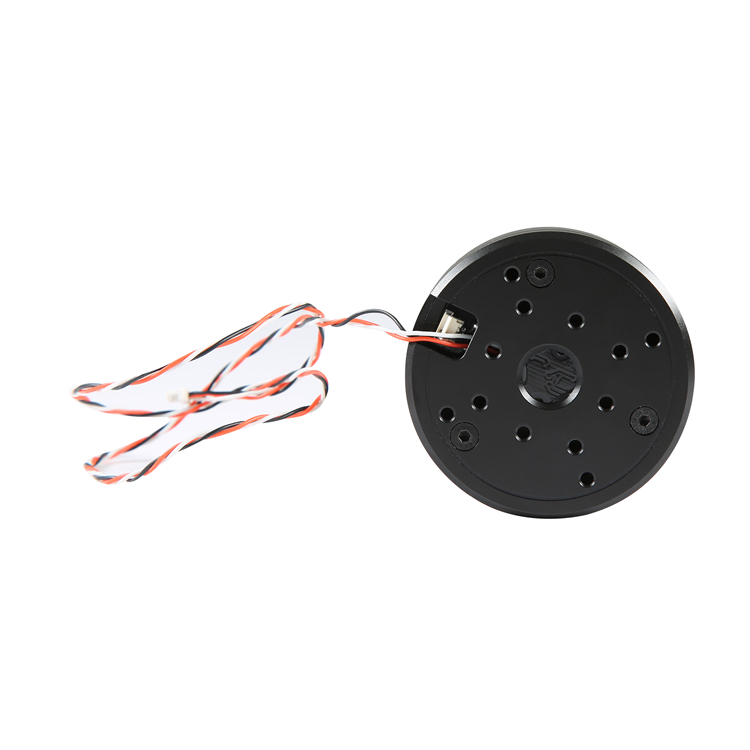

5208 Gimbal brushless motor

Description

The 5208 Gimbal brushless motor is specifically designed for ultra-low load, high-precision and miniaturized devices. With an extremely lightweight body of only 137.7g, low power consumption characteristics and flexible installation interfaces, this model is widely used in various fields such as miniature gimbals, desktop robots, medical handheld tools and smart wearable devices.

Performance Parameters

Product Model: XTG5208

Weight: 137.7 grams

Stator Size (DxL): Φ52x8mm

Configuration: 24N22P, that is, a magnetic pole configuration with 24 north poles (N) and 22 south poles (P), ensuring the smoothness and stability of the motor’s operation.

Number of Turns: 61T

Voltage Range: 12~24V

Torque: 0.21N.m@14.8V

Resistance: 12Ω

No-load Current: 87mA

Maximum Stall Current: 2A

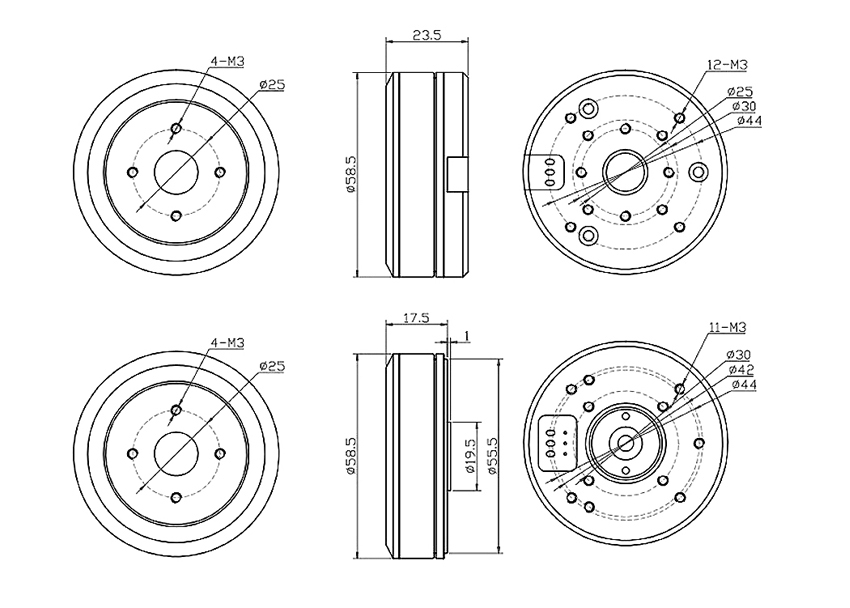

Stator Mounting Holes: Φ42mm 3xM3

Rotor Mounting Holes: Φ25mm 4xM3

Maximum Load Capacity: 2500g

Encoder: AS5048A

Slip Ring: 12.5mm

Structural Features

The 5208 Gimbal brushless motor adopts a brushless design, which reduces friction and wear, and improves the operation efficiency and service life. The precise coordination between its stator and rotor, as well as the application of high-performance magnets, ensures high efficiency and low-noise operation characteristics. The built-in AS5048A encoder provides accurate position information, enabling the control system to achieve high-precision control of the motor’s movement. The increase in the diameter of the stator not only brings higher torque output but also enhances the heat dissipation performance of the motor, allowing the motor to remain stable even during long-term high-load operation.

Application Areas

Drone Stabilized Gimbals: Its high torque, high-precision control and low-noise characteristics make it an ideal choice for drone gimbal systems.

Automatic Tracking Systems for Photography and Videography Equipment: The high response speed and precise position control ability of the 5208 Gimbal brushless motor enable it to meet the requirements of automatic tracking systems and achieve accurate tracking shooting.

Industrial Automation and Robotics: It is used to drive equipment such as conveyor belts and elevators to achieve precise speed and position control.

Precautions

Safe Operation: Ensure that the power supply is correctly connected, and check whether the motor and its connecting components are in good condition.

Proper Installation: Please install the stator and rotor correctly according to the provided installation guide, ensuring that all mounting holes are aligned and suitable fasteners are used.

Voltage Matching: Please ensure that the operating voltage of the motor is within the range of 12~24V. Avoid using too high or too low a voltage, which may cause damage to the motor or a decline in its performance.

Load Control: Pay attention to controlling the load weight and do not exceed the maximum load capacity (2500g) to prevent the motor from operating under overload.

Maintenance: Regularly inspect the motor and its connecting components, clean dust and debris, and keep the motor clean and dry.
