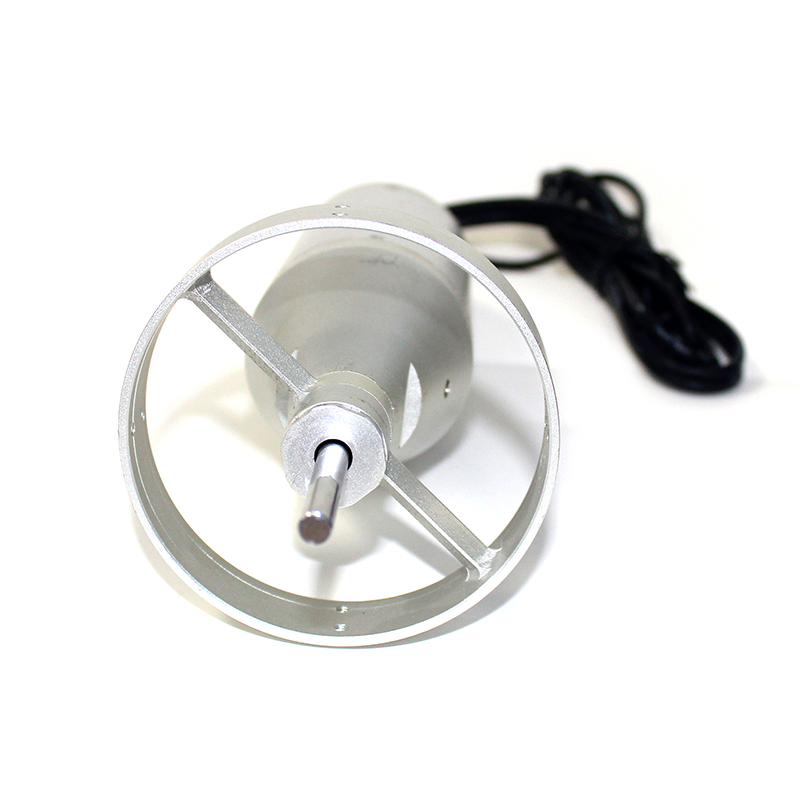

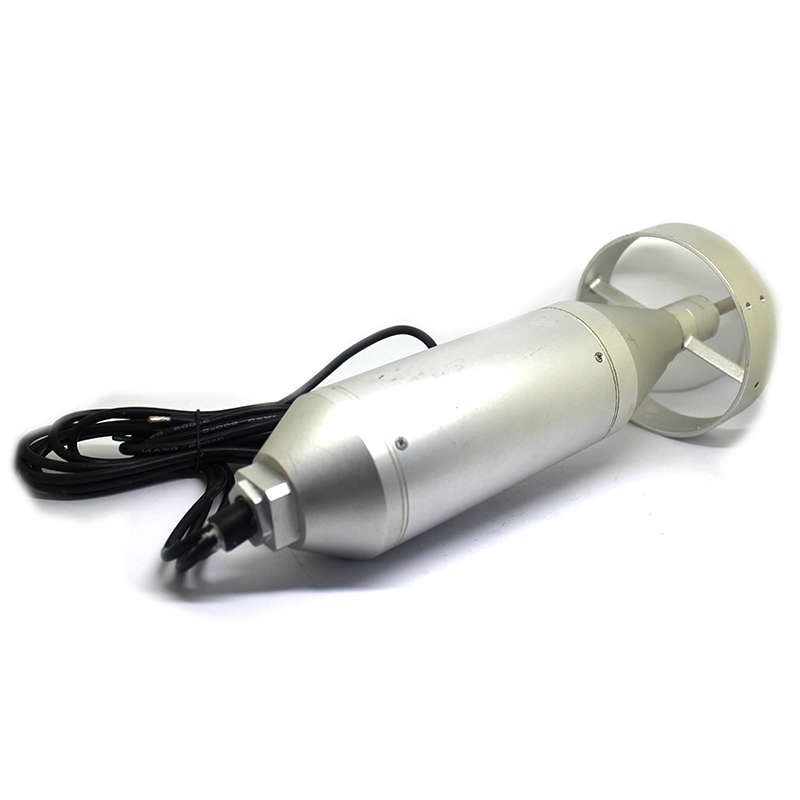

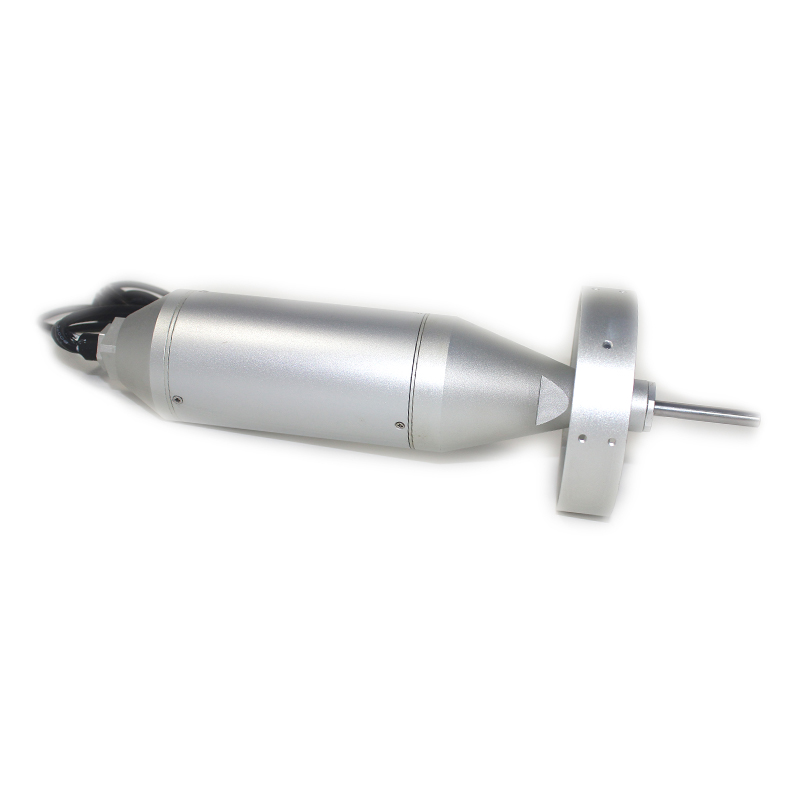

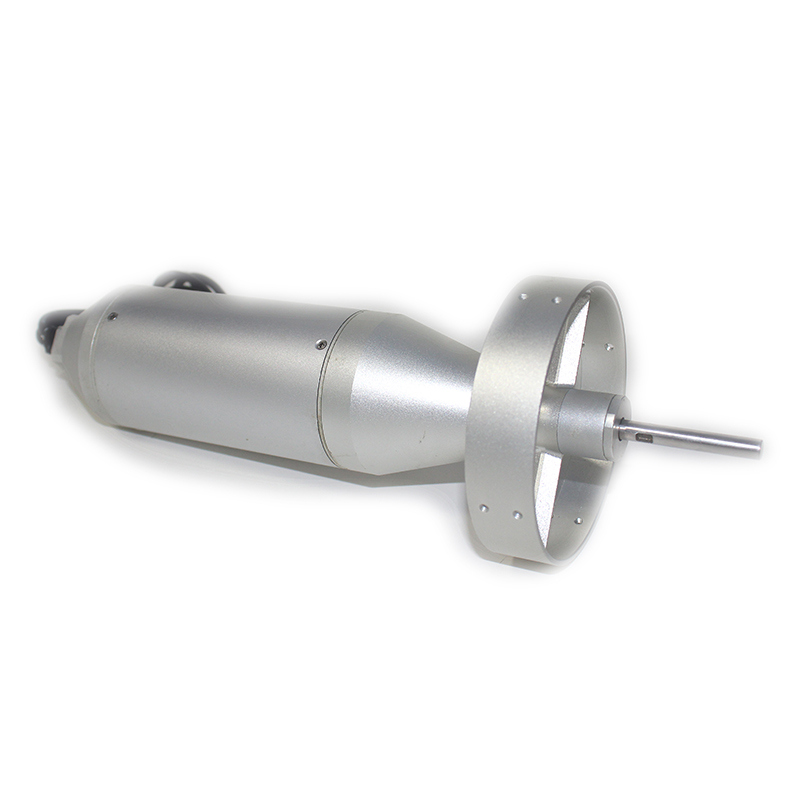

5050 waterproof brushless motor for Underwater Thruster

X-TEAM 5050 waterproof brushless motor for Underwater Thruster

Description

The 5050 waterproof brushless motor for Underwater Thruster is a high-performance inrunner motor specifically designed for high-speed applications. It combines multiple advanced technologies to ensure efficient and stable performance even when delivering high rotational speeds and high torque outputs. Whether it is used in high-speed fans or pumps and other equipment, it can meet the requirements for high rotational speeds and high torque. This motor adopts an inrunner structure, which can provide higher rotational speeds and efficiency, and also helps with heat dissipation. It is particularly suitable for equipment that needs to run at high speeds for a long time. Its 24N8P winding design can effectively enhance the motor’s torque output and stability, enabling the motor to maintain excellent working conditions under various load conditions.

5050 waterproof brushless motor for Underwater Thruster

Main Parameters

Model: 5050

Motor Type: Inrunner Motor

Configuration: 24N8P

Voltage Range: 20V – 85V

Maximum Rotational Speed: 35,000 RPM

KV Value: 170 KV

No-load Current: 3.5A (at 10V voltage)

Rated Torque: 1 N·m

Rated Current: 15A

Sensor Type: Sensorless

Maximum Power: 3500W

Maximum Torque: 1.5 N·m

Maximum Current: 45A

Weight: 1200 grams

Protection Level: IP57



Structural Features

High-speed Operation: The high KV value of 170 KV enables the motor to reach a high rotational speed even at a relatively low voltage, with a maximum of up to 35,000 RPM, meeting the requirements for high efficiency.

Wide Voltage Adaptability: It supports a voltage input range from 20V to 85V, showing strong adaptability.

Sensorless Design: It reduces the complexity of the control circuit and lowers the maintenance cost.

Powerful Power Output: The maximum power reaches 3500W, making it suitable for applications that require high power.

Strong Environmental Resistance: With an IP57 protection level, it is waterproof and dustproof, and can work stably in harsh environments.

Lightweight and Durable: It weighs only 1200 grams and has a compact structure, making it suitable for scenarios with high requirements for equipment weight and durability.

5050 waterproof brushless motor for Underwater Thruster

Application Fields

High-speed Fans: Suitable for occasions where high-speed fans are required, such as computers, servers, and industrial equipment.

Pump Equipment: Such as water pumps, oil pumps, etc., which are equipment requiring high rotational speeds and stable performance.

Power Tools: For example, electric drills, electric screwdrivers, etc., which are widely used in tools that require high power output.



Precautions

Electrical Safety: Use a matching electronic speed controller (ESC) and ensure that it is compatible with the sensorless control system to ensure the stable operation of the motor.

Heat Dissipation Management: When working under high loads, effective heat dissipation measures must be adopted, such as forced air cooling or liquid cooling. This can prevent the motor temperature from being too high and exceeding the rated operating temperature (it is recommended not to exceed 80℃).

Mechanical Maintenance: Regularly check the sealing at the motor shaft end to prevent water and dust from entering the bearings and affecting the operation effect.

Installation Specification: The alignment of the motor shaft and the shaft of the load equipment must be precise, with an error not exceeding 0.05 mm.



If you are interested in the 5050 waterproof brushless motor for Underwater Thruster or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us in the following ways:

Tel: +86-769-85228181

Email: chris@x-teamrc.com

Additional information

Product model

5050

Motor Type

Inrunner

Configuration

24N8P

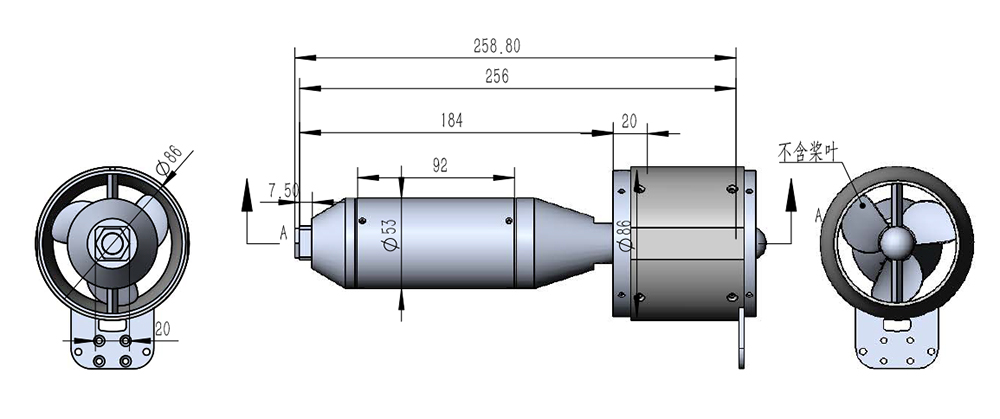

Size

Φ53x256mm

Shaft OD&Ext.

Φ6x40mm

Voltage

20V~85V

Max RPM

35000 RPM

KV

170KV

No Load Current

3.5A (10V)

Rated Torque

1N.m

Rated Current

15A

Sensored/Sensorless

Sensorless

Max Power

3500W

Max Torque

1.5N.m

Max Current

45A

Weight

1200g

Ingress Protection

IP57
