Description

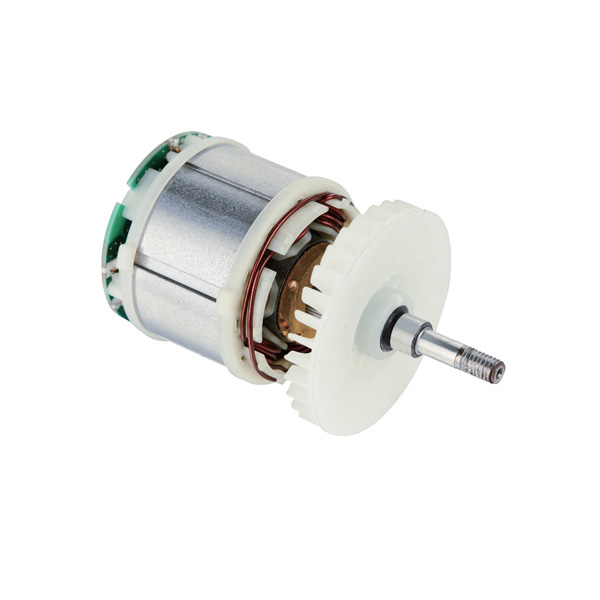

The 4835 DC brushless motor for electrical tools is a high-performance driving core specifically designed for industrial-grade angle grinders, featuring four core advantages: high efficiency, low noise, long lifespan, and no electromagnetic interference (EMI). Its high rotation speed and large torque output can meet the needs of high-intensity cutting and grinding operations. At the same time, through its precise structure and intelligent protection functions, it ensures stable operation, greatly improving work efficiency and safety.

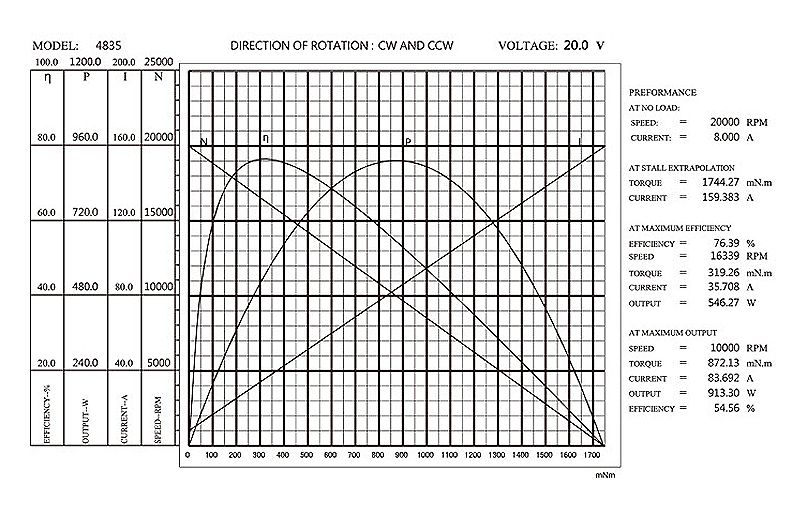

Performance Parameters
Model: 4835
Rated Voltage: DC 20V
Maximum Rotation Speed: 20000 RPM ±10%
No-load Current: ≤8.0A
Rated Torque: 0.35N.m
Power: 900W
Maximum Operating Current: ≤45A
Maximum Protection Current: ≤70A
Service Life: >3000 hours
Structural Features
Integrated Design of Gear and Shaft: The motor adopts an integrated design of the gear and the shaft, reducing transmission losses and improving overall efficiency.
Compact Design: The motor is small in size, making it easy to install in limited spaces, and is suitable for equipment and application scenarios with high space requirements.
Efficient Heat Dissipation: An optimized heat dissipation structure is adopted, which can effectively dissipate the heat generated during operation, prevent performance degradation or damage caused by motor overheating, and ensure the stability of the motor during long-term high-load operation.
High-quality Materials: The motor housing and key internal components are made of high-quality materials, which have good mechanical strength and wear resistance, and can withstand the dual tests of high torque and high rotation speed, thus extending the service life of the motor.
Brushless Design: Brushless DC technology is adopted, eliminating the friction between the carbon brushes and the commutator in traditional brushed motors, reducing the maintenance workload and the failure rate of the motor. At the same time, it improves the operating efficiency and reliability of the motor.
Application Areas
Industrial Automation: It provides stable and efficient power support in automated production lines and robot systems.
Large-scale Mechanical Equipment: In large-scale rotating mechanisms such as cranes and excavators, which need to withstand high loads and continuous operation scenarios.
Special Applications: In fields such as aerospace and military equipment, where there are extremely high requirements for the performance, reliability, and durability of the motor.
Precautions
Safe Operation: When operating the motor, please ensure that you follow the safe operation procedures to avoid safety risks such as electric shock and mechanical injury.
Proper Installation: Please install it correctly according to the requirements of the product instruction manual and the drawings to ensure the stability and operating efficiency of the motor.
Regular Maintenance: Regularly inspect and maintain the motor, including cleaning, lubricating, and tightening screws, etc., to extend the service life of the motor.
Load Limitation: Please avoid running the motor under overload to prevent damage to the motor components or affecting its performance.
Ambient Temperature: Please ensure that the motor operates in a suitable ambient temperature range, and avoid adverse effects on the motor caused by excessively high or low temperatures.
If you are interested in the 4835 DC brushless motor for electrical tools or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-efficiency application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following means:
Telephone: +86-769-85228181
E-mail: chris@x-teamrc.com
Product Advantage
- High efficiency
- Low noise
- Long life
- No EMI
Applications: Angle Grinder
