Description

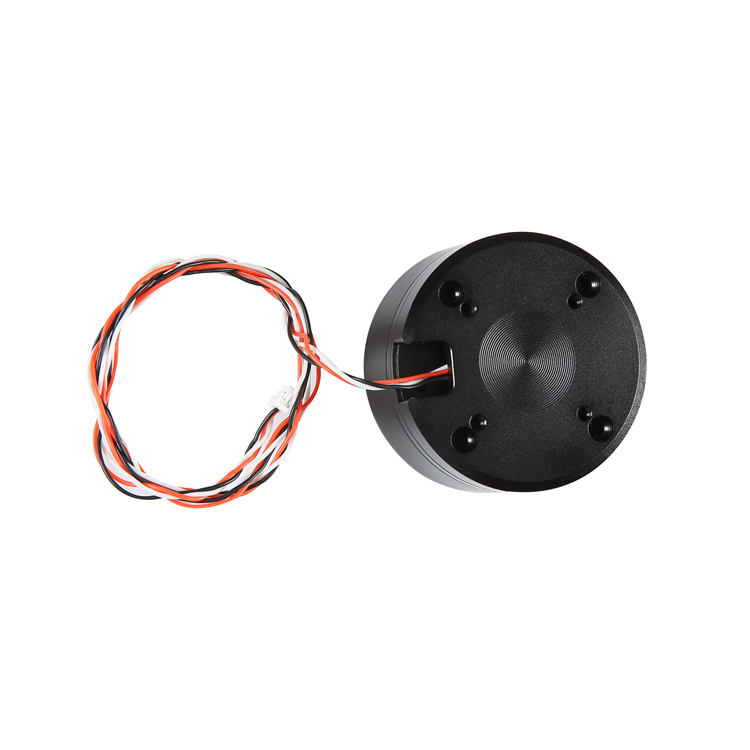

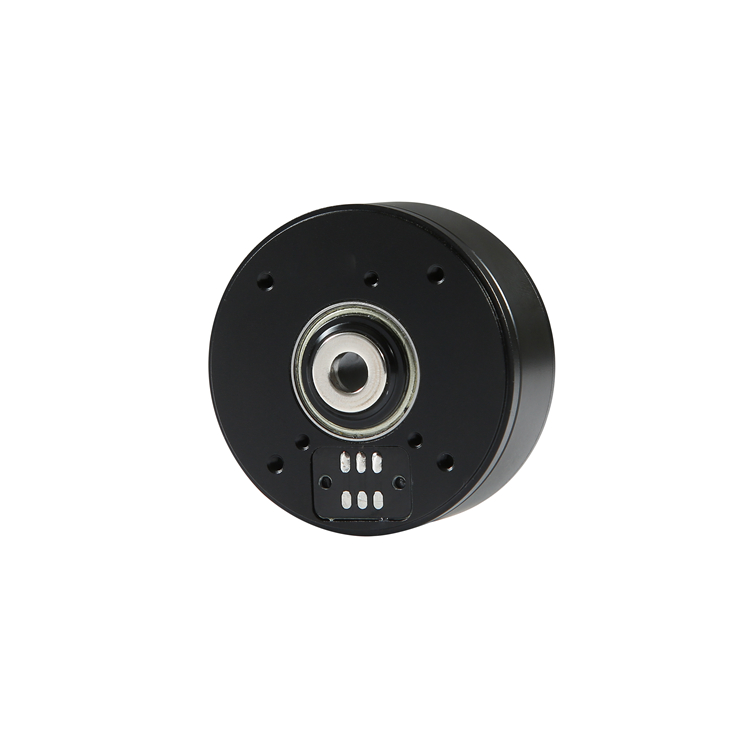

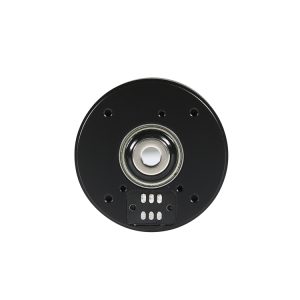

The 4310 Gimbal brushless motor is a high-performance brushless DC (BLDC) motor specifically designed for applications that require high torque and precise control. With a compact design and excellent performance parameters, the 4310 Gimbal brushless motor is an ideal choice for drones, gimbals, precision robotic arms, and other devices that need precise position control and efficient power transmission.
Product Model: XTG4310
Weight: 121.1 grams
Stator Size: Φ43x10mm
Configuration: 24N28P, that is, 24 north poles and 28 south poles, providing smooth and efficient torque output.
Number of Turns: 60 turns
Operating Voltage: 12~24V
Torque: Reaches 0.2N.m at a voltage of 14.8V, ensuring sufficient driving force.
Resistance: 10.7Ω
No-load Current: 97mA
Maximum Stall Current: 1.8A

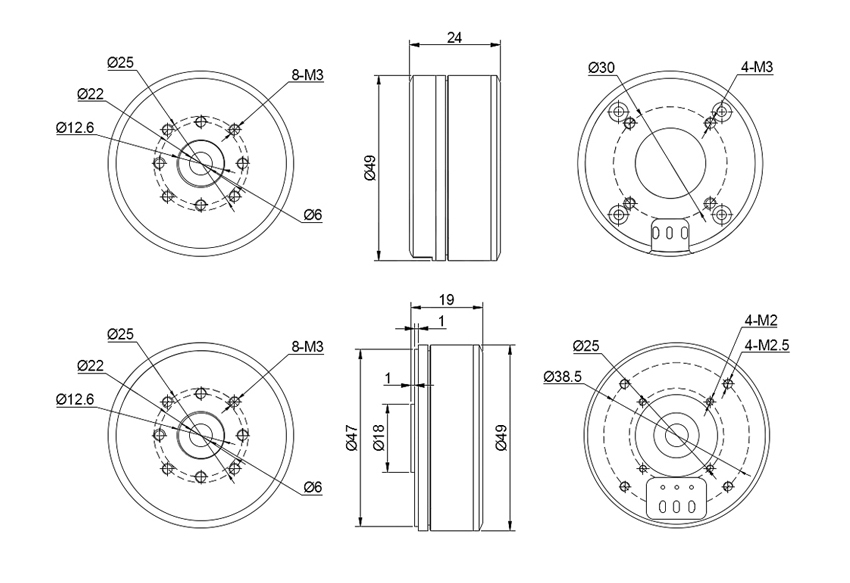

Stator Mounting Holes: Φ38.5mm, equipped with 4 M2.5 threaded holes for easy fixed installation.
Rotor Mounting Holes: Two specifications of Φ22mm and Φ25mm are provided, each with 4 M3 threaded holes to meet different load requirements.
Maximum Load: Supports a gimbal or camera of up to 2000 grams, demonstrating its strong bearing capacity.

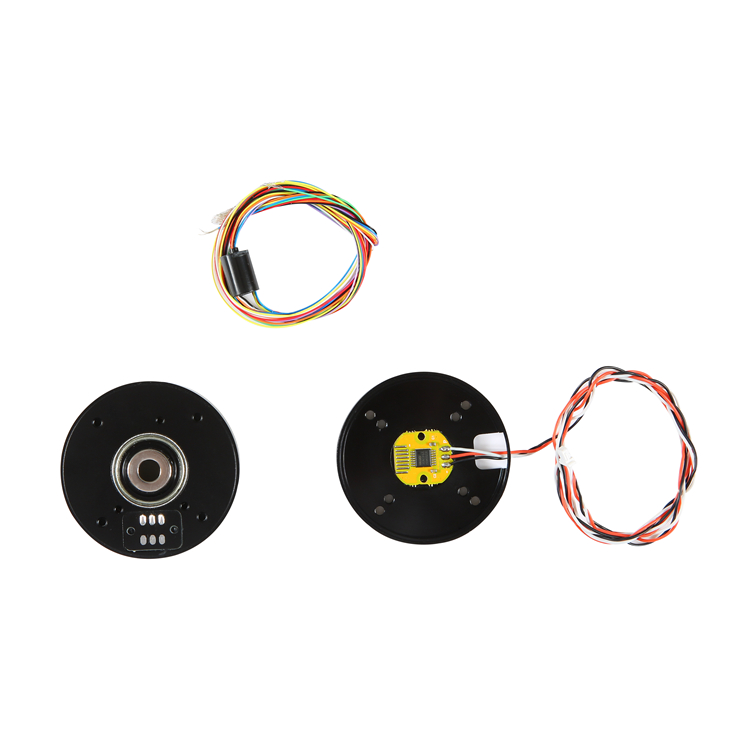

Encoder: AS5048A is adopted.
Slip Ring: With a diameter of 12.5mm
Structural Features
Motor Body: The motor body is compact and lightweight, and is optimized for the reliable operation of the entire system.
Stator: The stator design enables the motor to efficiently convert electrical energy into mechanical energy.
Position Sensor: The 4310 Gimbal brushless motor uses a high-precision encoder AS5048A to provide accurate feedback on the rotor position, enabling precise control of the motor.
Electronic Commutation Circuit: The commutation circuit is advanced in design, ensuring the stability and reliability of the motor during loaded operation.
Application Areas

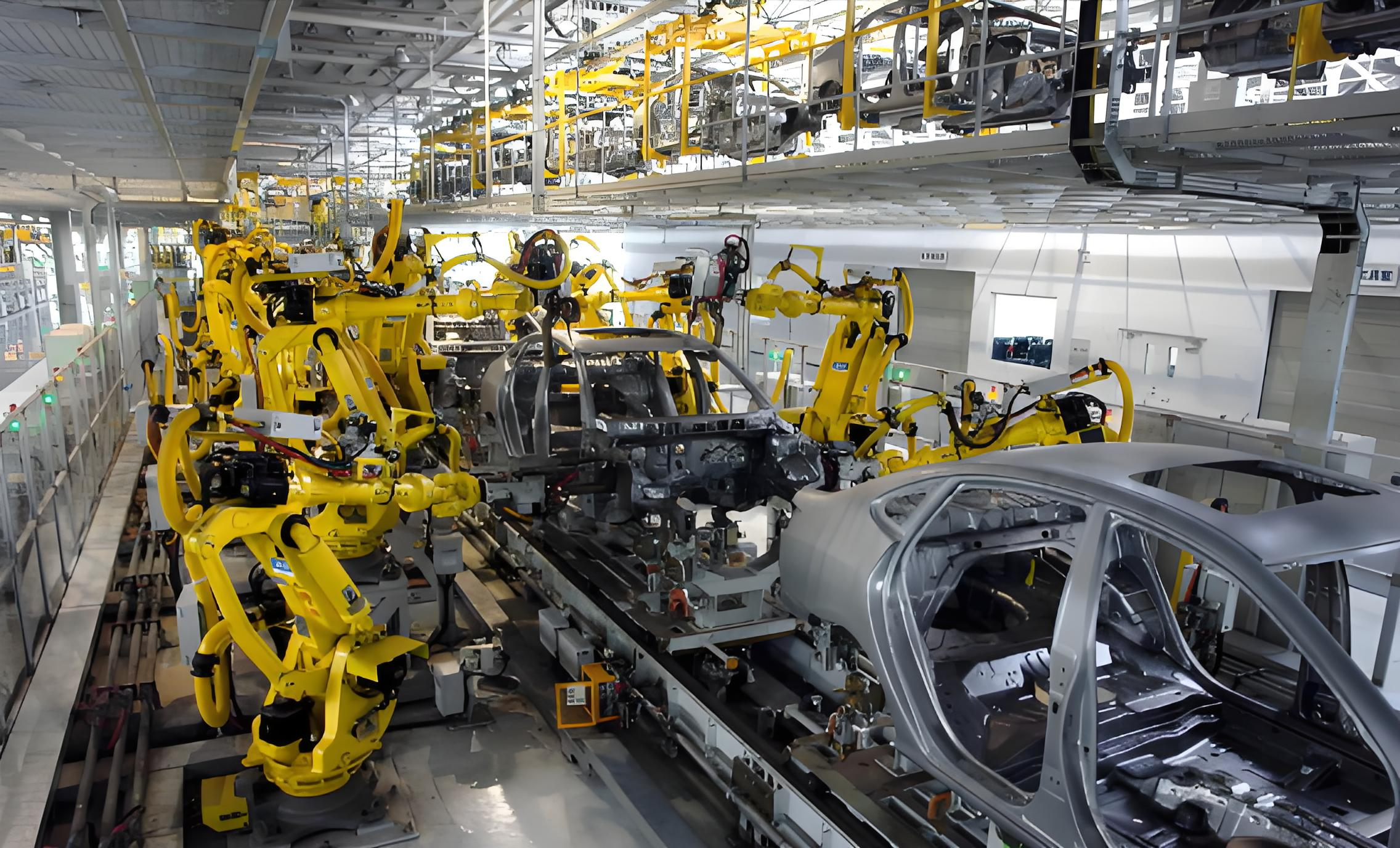

Industrial Automation: The 4310 Gimbal brushless motor can be used in various automation devices, such as CNC machine tools, robots, automated production lines, etc., which can precisely control movements and improve production efficiency.
Automotive Field: In the drive system of electric vehicles, the 4310 Gimbal brushless motor provides efficient power output. In addition, this type of motor may also be used in automotive air conditioning systems, electric power steering systems, etc.
Household Appliances: For appliances like air conditioners, washing machines, refrigerators, etc., the 4310 Gimbal brushless motor can achieve energy-saving and low-noise operation, enhancing the user experience.
Medical Devices: For example, products with high requirements for motor precision and reliability, such as electric hospital beds, surgical instruments, and rehabilitation equipment.
Precautions for Use
Voltage Matching: Ensure that the supply voltage is within the range of 12~24V to avoid damaging the motor by exceeding the rated value.
Heat Dissipation: Although the motor is designed with thermal protection measures, attention should still be paid to heat dissipation during long-term high-load operation to avoid overheating.
Stable Installation: Use the mounting holes provided by the stator and rotor to ensure that the motor is firmly installed and prevent performance degradation caused by vibration.
Regular Inspection: Regularly inspect the motor and its connecting components to ensure that there is no looseness or damage, and conduct maintenance in a timely manner.
Professional Operation: For applications involving high-speed rotating components, they should be operated by professionals to avoid electric shock or mechanical injury.
Compatible Controller: Select a compatible BLDC motor controller to ensure that the motor can fully utilize its performance.
If you are interested in the 4310 Gimbal brushless motor or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:
