Description

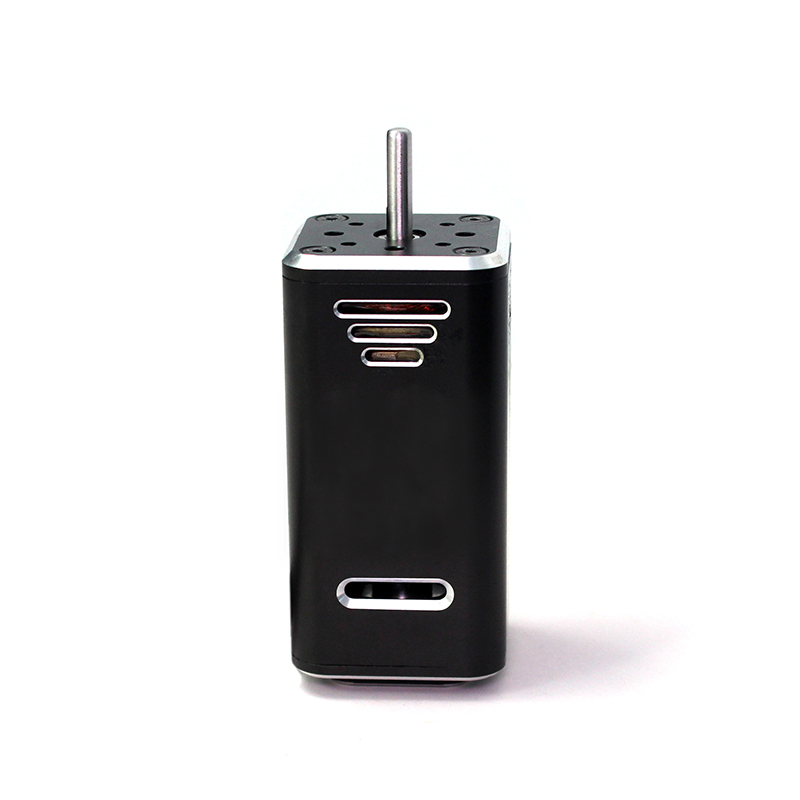

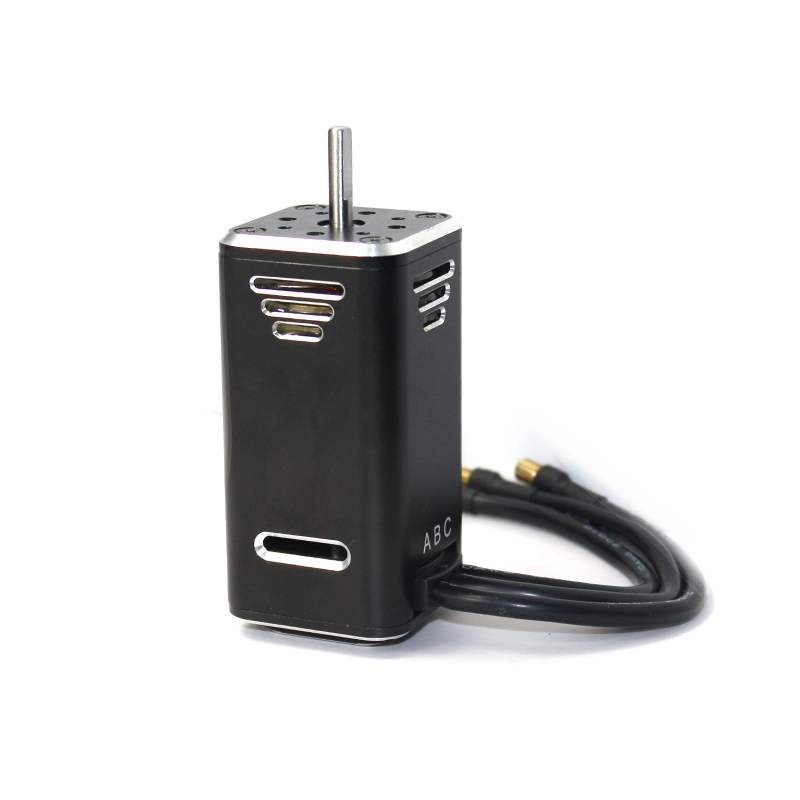

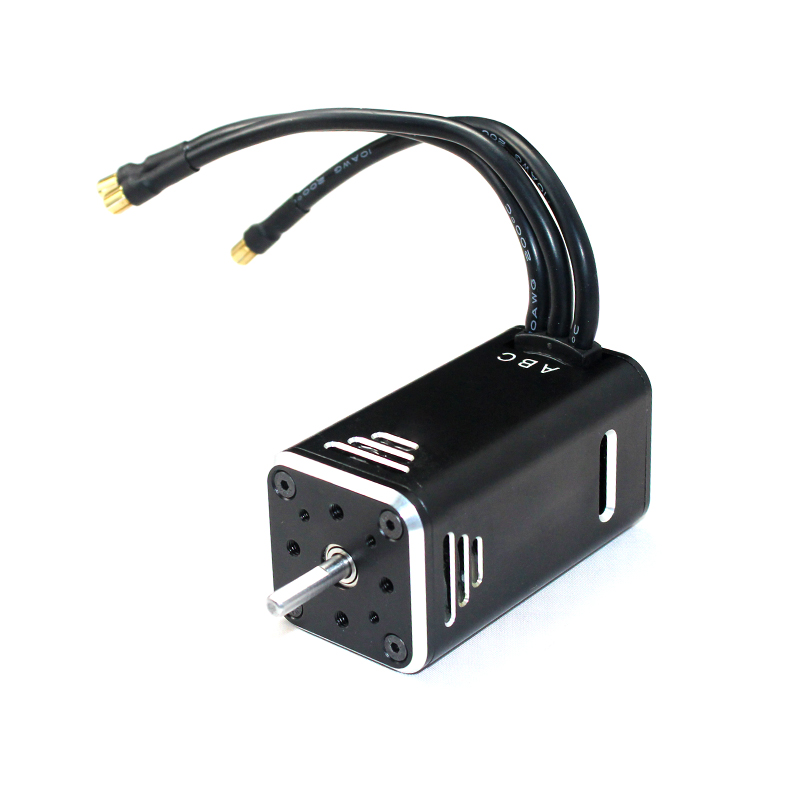

The 4280 sensored brushless motor for 1/8th car model is a high-performance brushless DC motor, suitable for a variety of application scenarios that demand precise control and high efficiency. With its compact size and superior performance, it is well-suited for use in fields such as robotics, drones, and power tools.

Performance Parameters

Basic Parameters

Product Model: 4280

Motor Type: Inrunner

Dimensions: Φ42x80mm

Shaft Diameter and Extension: Φ5x10mm

Encoding Method: Sensored (with sensor)

Electrical Parameters

Wiring Definition:

GND (Ground)

C (Control Signal)

B (Feedback Signal)

A (Feedback Signal)

TEMP (Temperature)

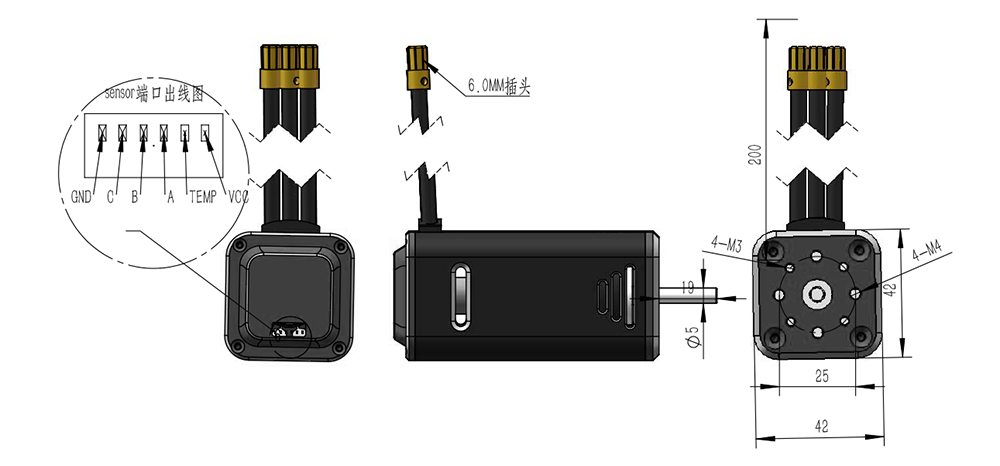

Plug: A 6.0-millimeter plug is used, and the specific structure and connection method are as shown in the figure.

Dimension Parameters

Overall Height: 200 millimeters

Hole Positions at the Bottom:

Four M4 holes with a spacing of 42 millimeters, and the distance from the center of each hole to the edge is 25 millimeters

One M3 hole for fixing or other purposes

Structural Features

Compact Design: The 4280 sensored brushless motor for 1/8th car model has a small size (Φ42x80mm), making it highly suitable for installation and use in confined spaces.

High-precision Sensor: With the Sensored encoding method and a built-in sensor, it enhances the precision of the motor’s operation and control performance.

Sturdy and Durable: There are four M4 holes and one M3 hole at the bottom, providing a stable installation method and enhancing the reliability of the motor in various applications.

Clear Wiring: The wiring definition of the ports is clear, and the functions of the GND, C, B, A, and TEMP pins are clearly defined, facilitating users to make correct connections and use the motor.

Application Fields

Industrial Automation: In industrial automation production lines, this motor can serve as a driving source to precisely control the movement of various mechanical equipment, such as conveyor belts and robotic arms, etc., improving production efficiency and product quality and enabling the efficient operation of automated production.

Robotics: Its high precision and high reliability make it an ideal choice for driving robot joints, ensuring that the movements of the robot are accurate and stable, and providing strong support for the robot to execute tasks in complex environments.

Smart Home: In smart home devices, such as smart curtains and smart door locks, this motor can achieve the automated control of the devices, enhancing the user experience and adding convenience to smart home life.

Precautions

Electrical Safety: During the wiring process, it is essential to ensure that the pins of the motor are connected correctly to avoid damage to the motor or dangerous situations such as short circuits caused by incorrect wiring. At the same time, make sure that the motor is well grounded to prevent the accumulation of static electricity and electric leakage accidents.

Installation Operation: When installing the motor, be careful not to apply excessive external force to the motor to avoid damaging its internal structure. When fixing the motor, tighten the bolts according to the specified torque to ensure that the motor is firmly installed without being overly stressed.

Environmental Conditions: The motor should be used under the specified environmental conditions, such as temperature and humidity. Avoid using the motor in an environment that is too humid, too hot, or contains corrosive gases to prevent affecting the performance and service life of the motor. During the operation of the motor, regularly check the temperature of the motor to ensure that it will not malfunction due to overheating.

If you are interested in the 4280 sensored brushless motor for 1/8th car model or need more detailed information about the product, please feel free to contact us. We look forward to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other occasions with high-performance requirements, X-TEAM motors can provide stable and reliable power output. If you need more information or want to order a BLDC motor, you can contact us in the following ways:
