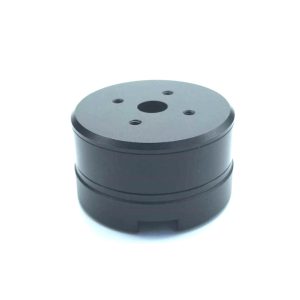

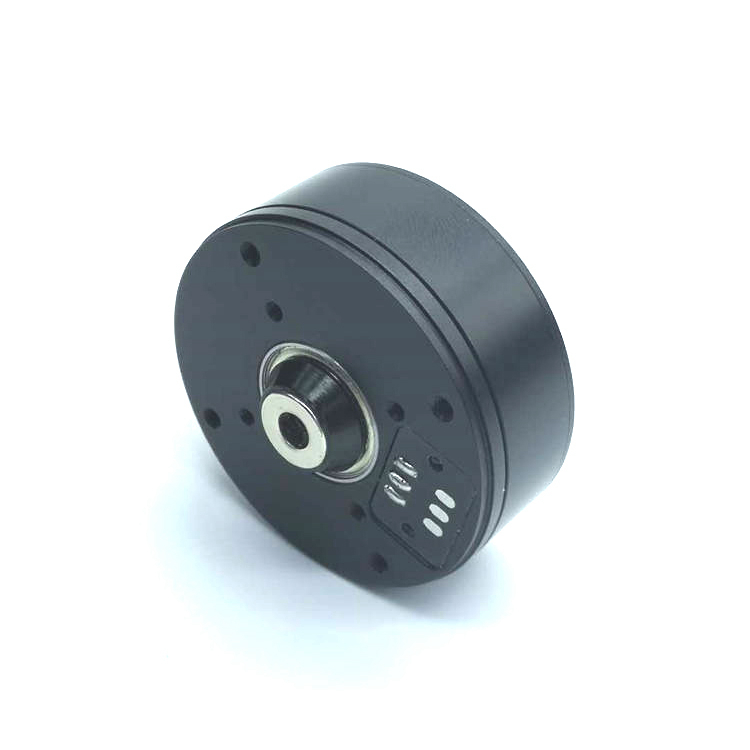

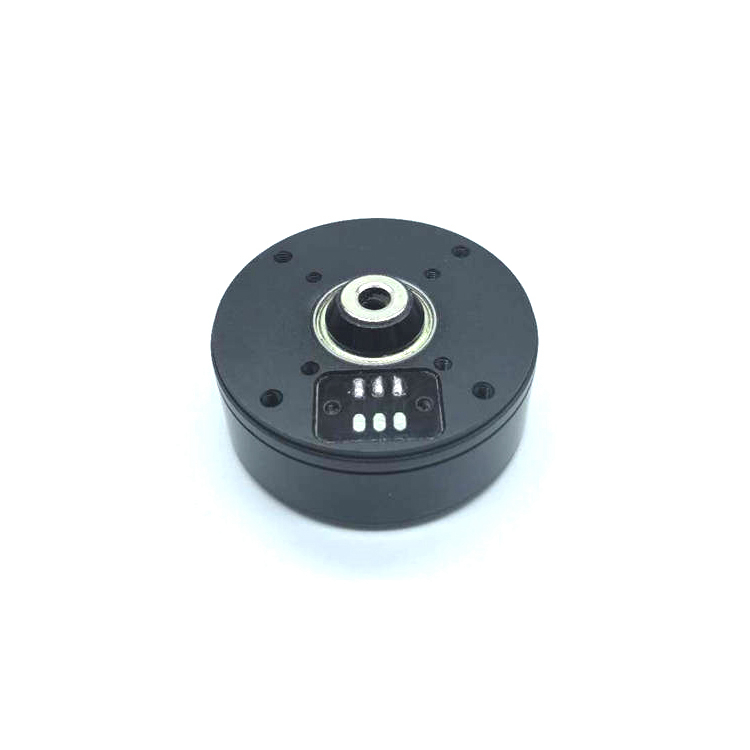

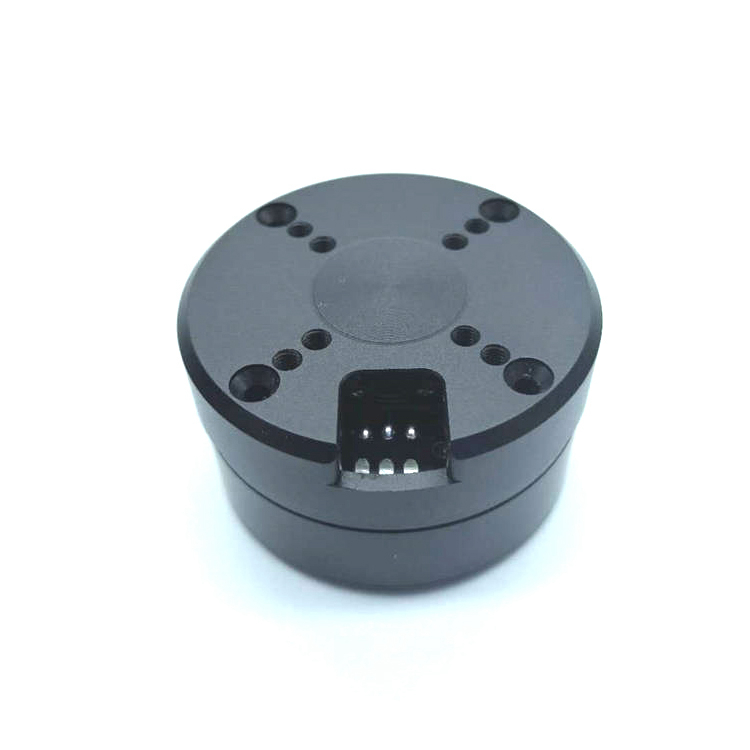

4108 Gimbal brushless motor

Description

The 4108 Gimbal brushless motor is a high-performance brushless DC (BLDC) motor specifically designed for application scenarios that require high-precision and high-efficiency power transmission. With its compact structure and powerful performance parameters, it can deliver excellent performance in numerous fields, such as drones, gimbal systems, precision robotic arms, and more.

Detailed Performance Parameters

Product Model: XTG4108

Weight: 95.7 grams

Stator Size (DxL): Φ41x8mm

Configuration: 24N22P, that is, a magnetic pole configuration with 24 north poles (N) and 22 south poles (P), providing smooth and stable torque output.

Number of Turns: 40 turns

Voltage Range: 12~24V

Torque: 0.15N.m@14.8V

Resistance: 7.2Ω

No-load Current: 90mA

Maximum Stall Current: 1.4A

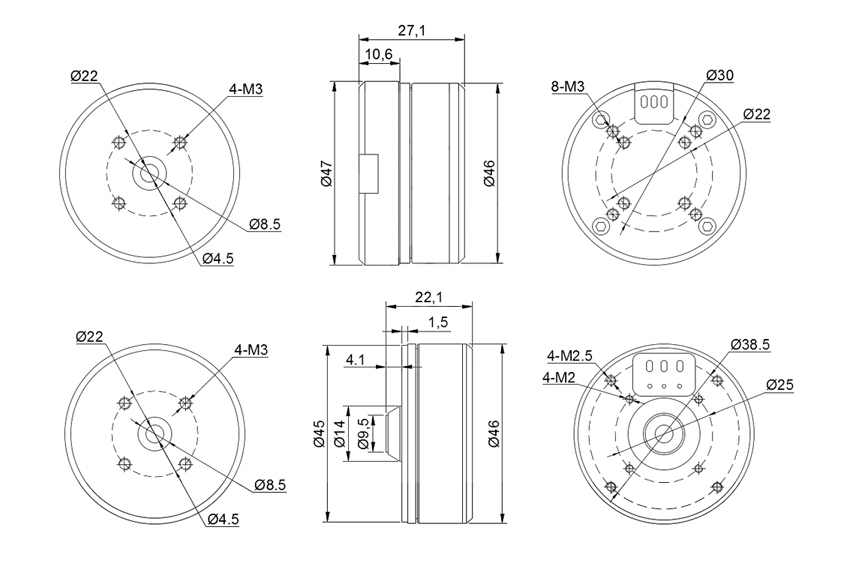

Stator Mounting Holes: Φ38.5mm 4xM2.5

Rotor Mounting Holes: Φ22mm 4xM3

Maximum Load Capacity: 1800g

Encoder: AS5048A

Slip Ring: 8.5mm

Structural Features

The 4108 Gimbal brushless motor adopts a brushless design, which reduces friction and wear, and improves operation efficiency and service life. The precise coordination between its stator and rotor, as well as the application of high-performance magnets, ensures high efficiency and low-noise operation characteristics. In addition, the built-in encoder of the 4108 Gimbal brushless motor provides accurate position information, enabling the control system to achieve high-precision control of the motor’s movement.

Application Scenarios

Micro Camera Gimbals: With a load capacity of 1.8kg, it is suitable for action cameras or phone holders. The ultra-light design enhances portability and battery life.

Desktop-level Robotic Arms: It operates with low torque and silently, making it suitable for light automation devices such as educational robots and 3D printing pens.

Medical Micro Devices: Such as dental handpieces and endoscope steering mechanisms. Its electromagnetic interference-free feature ensures the safety of the equipment.

Smart Wearable Gimbals: Integrated into AR/VR headsets or motion tracking devices to achieve low-power and high-precision angle adjustment.

Precautions

Safe Operation: Ensure that the power supply is correctly connected, and check whether the motor and its connecting components are in good condition. Avoid using it in a humid or extreme temperature environment to prevent damage to the motor or safety accidents.

Proper Installation: According to the provided installation guide, install the stator and rotor correctly, ensuring that all mounting holes are aligned and suitable fasteners are used.

Voltage Matching: Please ensure that the operating voltage of the motor is within the range of 12~24V. Avoid using too high or too low a voltage, which may cause damage to the motor or a decline in its performance.

Load Control: When using it, please pay attention to controlling the load weight and do not exceed the maximum load capacity (1800g) to prevent the motor from operating under overload.

Maintenance: Regularly inspect the motor and its connecting components, clean dust and debris, and keep the motor clean and dry. If abnormal noise or a decline in performance is detected, stop the machine immediately for inspection.
