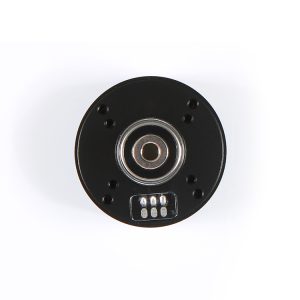

Description
The 3510 Gimbal brushless motor is designed for ultra-light loads, high precision, and miniature devices. It weighs only 73.3 grams, features low power consumption, and supports flexible installation methods. It has been widely applied in various fields such as miniature gimbals, desktop robots, medical handheld tools, and smart wearable devices, providing an efficient and compact power solution, especially suitable for applications with high space requirements.
Performance Parameters
Model: XTG3510
Weight: 73.3 grams
Stator Size: Φ35x10mm
Configuration: The 24N22P magnetic pole configuration provides a balanced magnetic field distribution, optimizing the motor’s operation efficiency and stability.
Number of Turns: 36 turns
Voltage Range: 12~24V
Torque: At a voltage of 11.1V, it can provide a torque of 0.1N.m, meeting the requirements of precise control.
Resistance: 7.5Ω
No-load Current: 63mA
Maximum Stall Current: 1.2A

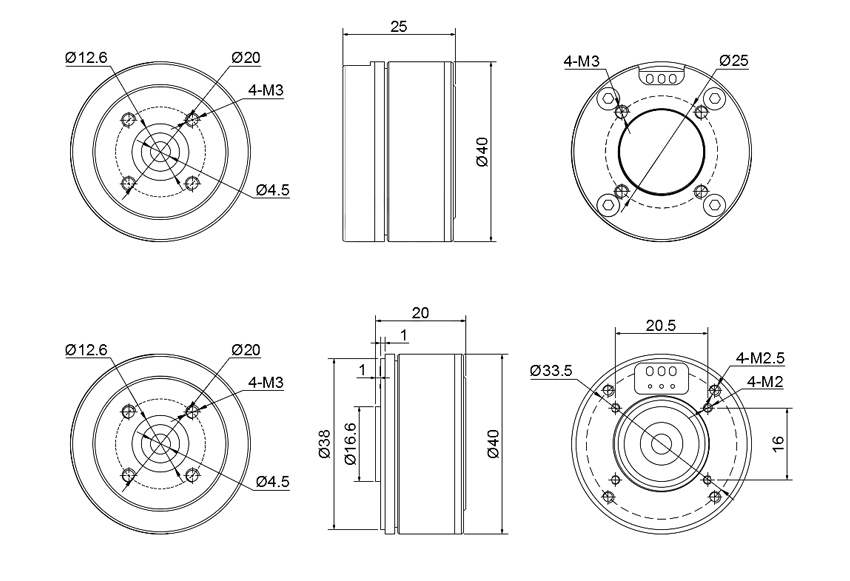

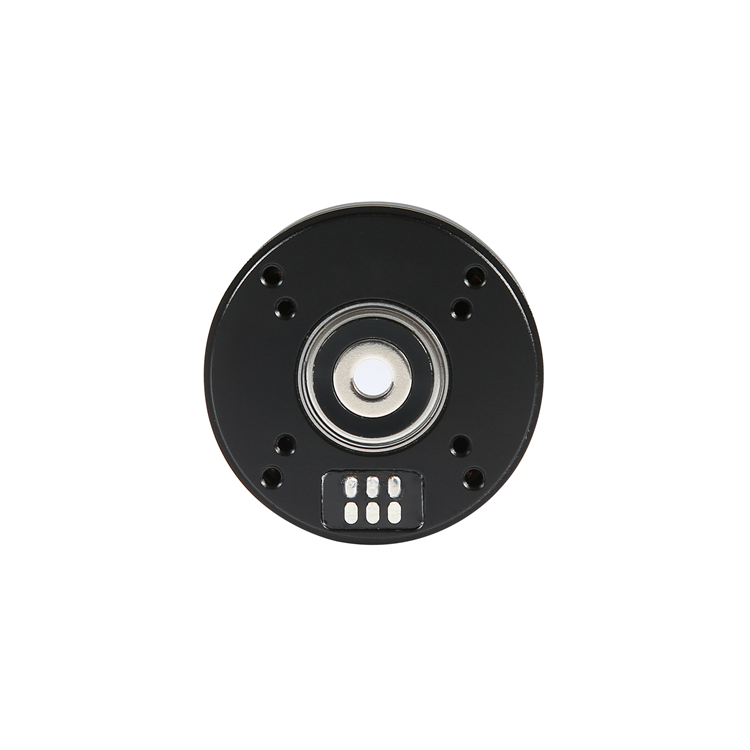

Stator Mounting Holes: Φ33.5mm, equipped with 4 M2.5 threaded holes for easy fixed installation of the motor.

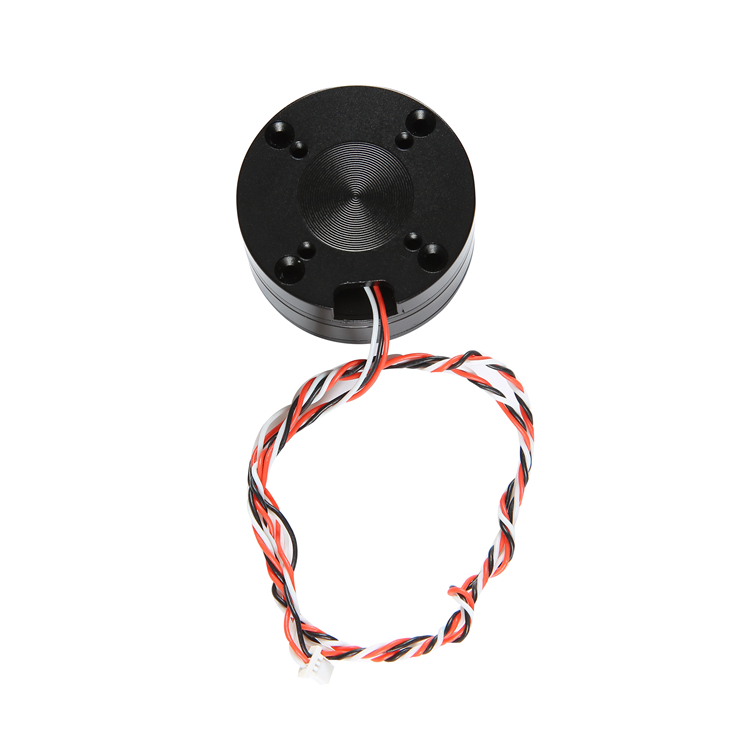

Rotor Mounting Holes: Φ20mm, equipped with 4 M3 threaded holes, providing a flexible way to connect the load.
Maximum Load Capacity: It can support a gimbal or camera weighing up to 1500g, suitable for various high-precision load control scenarios.

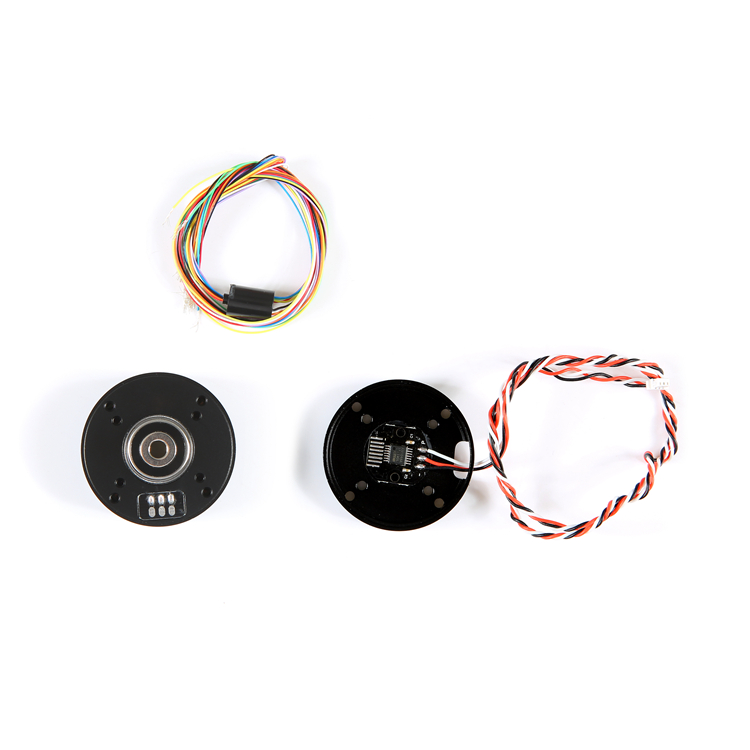

Encoder: The AS5048A high-precision encoder is adopted, achieving accurate position feedback and enhancing the control precision and stability of the system.
Slip Ring: The 12.5mm slip ring design ensures the stability of signal and power transmission during the rotation of the motor.
Structural Features
Compact Design: Its small size and lightweight design make it easy to integrate into various compact devices.
High Performance: The optimized magnetic pole configuration and number of turns design ensure the efficient operation and stable output of the motor.
High Precision Control: The built-in AS5048A encoder provides accurate position feedback, suitable for high-precision control systems.
High Load Capacity: It can support a load of up to 1500g, meeting the needs of various heavy-duty applications.
Application Areas
Drone Gimbals: It provides a stable image acquisition platform, ensuring the clarity and stability of aerial photography images.
Robot Joints: It provides precise position control and strong driving force for robots, improving the flexibility and accuracy of robots.
Precision Instruments: It is suitable for various precision instruments and devices that require high-precision control and stable operation.
Precautions
Voltage Matching: Please ensure that the input voltage is within the specified range of 12~24V to avoid overloading or damaging the motor.
Load Limitation: Do not exceed the maximum load capacity of the motor (1500g) to avoid placing excessive burden on the motor.
Heat Dissipation Treatment: During long-term high-load operation, please ensure that the motor has good heat dissipation conditions to avoid performance degradation or damage caused by overheating.
Stable Installation: Please carry out fixed installation according to the specified mounting hole size and thread specification to ensure the stability and safety of the motor.
Regular Maintenance: Please regularly check the operation status and connection of the motor, and promptly detect and address potential problems.
