Description

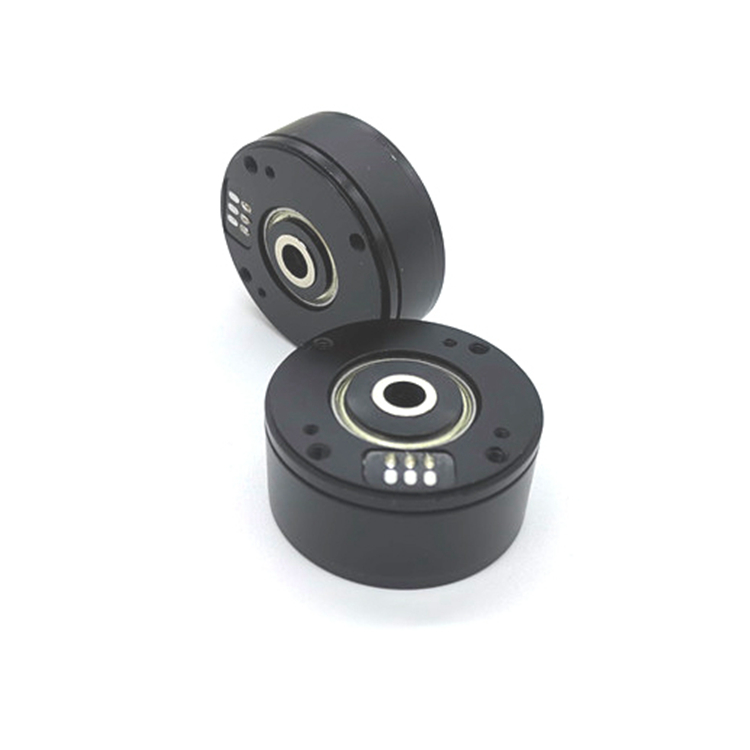

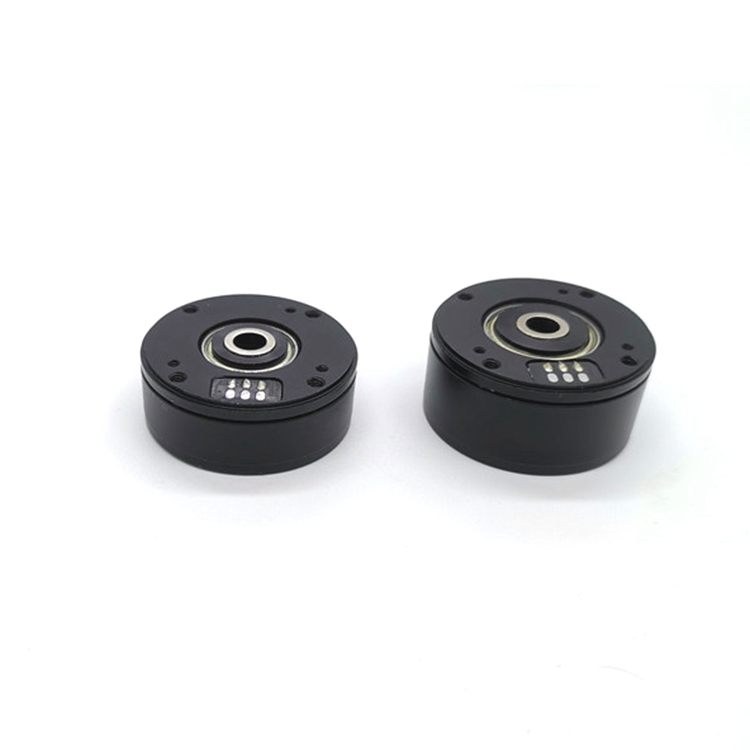

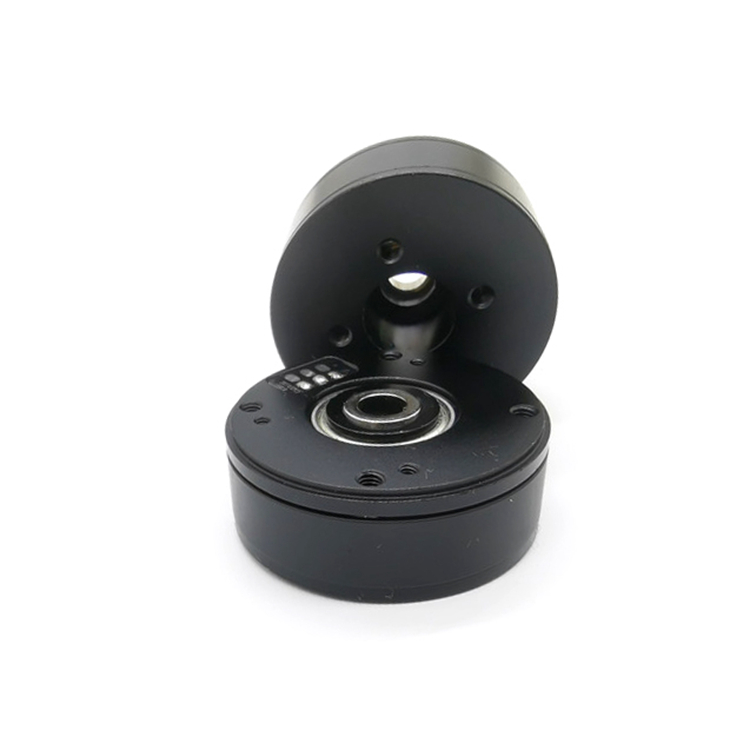

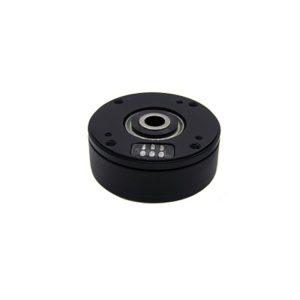

In today’s rapidly developing field of science and technology, high-performance and high-efficiency motor products have become the core components in numerous mechanical and intelligent devices. The 3506 Gimbal brushless motor stands out in a variety of application scenarios thanks to its excellent performance and exquisite design.
Performance Parameters
Model: XTG3506
Torque: At a voltage of 11.1V, it can generate a torque of 0.08N.m.

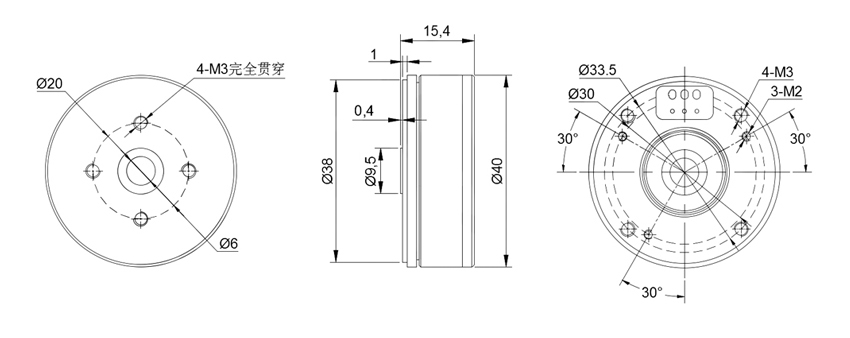

Rotor Mounting Holes: Φ20mm, with 4 M3 threaded holes.
Weight: 42g
Resistance: 6Ω
Maximum Load: It can support a gimbal or camera weighing 800g.
Stator Size (Diameter x Length): Φ35x6mm
No-load Current: 62mA
Encoder: The AS5048A encoder is adopted.
Configuration: 24N22P
Maximum Stall Current: 1.3A
Slip Ring: 12.5mm
Voltage: Supports 3S LiPo batteries.
Stator Mounting Holes: Φ33.5mm, with 4 M3 threaded holes, facilitating the fixation of the motor to the mounting bracket.
Number of Turns: 65T
Structural Features
Brushless Design: It abandons the traditional mechanical commutation contacts (i.e., carbon brushes) and instead uses an electronic controller to achieve the commutation function. This simplifies the motor structure and improves the reliability and efficiency of the system.
Permanent Magnet Rotor: The permanent magnet is used as the rotor, and there are no coils inside the rotor. This design makes the motor structure more compact and lighter in weight, while being able to generate strong power.
Precise Control: The commutation and intensity of the current are precisely controlled through the electronic controller, allowing for accurate manipulation of the rotor’s rotation. It supports complex operations such as PWM speed regulation and torque control, meeting the requirements of intelligent devices.
Encoder Feedback: The built-in AS5048A encoder provides accurate position feedback, ensuring the high-precision operation of the motor.
Application Areas
Aerial Photography Drones: The high torque and precise position control ensure the stable flight of the drone and high-definition photography.
Photography Gimbals: The low noise and long lifespan of the motor enable the gimbal to work stably for a long time, providing photographers with an excellent shooting experience.
Robot Joints: The high precision and efficient performance of the motor enable the robot to flexibly complete various actions and tasks.
Industrial Automation Systems: In industrial automation scenarios such as the main shafts of CNC machine tools, robotic arm joint motors, and automated assembly line transmission systems.
Precautions
Safety First: Ensure that the power supply and control system are correctly connected, and avoid running the motor under no-load or abnormal conditions.
Proper Operation: Please install and debug the motor correctly according to the instructions in the product manual.
Maintenance: Regularly check the installation and connection of the motor to ensure that the motor is in good working condition.
Environmental Adaptability: Please pay attention to the usage environment of the motor and avoid using the motor in harsh environments such as humidity, high temperature, and corrosion.
If you are interested in the 3506 Gimbal brushless motor or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:
Telephone: +86-769-85228181
Email: chris@x-teamrc.com
