Description

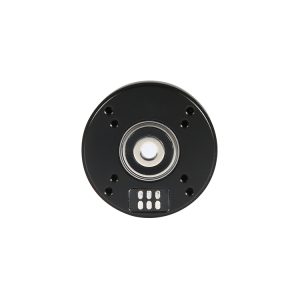

The 3505 Gimbal brushless motor, with its compact design, high efficiency, and wide range of application scenarios, has become an ideal choice for various precision mechanical devices. The 3505 Gimbal brushless motor not only has excellent torque output and high-speed operation capabilities but also features a high degree of reliability and durability, meeting all your expectations for a high-performance motor.
Performance Parameters
Model: XTG3505
Weight: 57 grams
Stator Size (Diameter x Length): Φ35x5mm
Configuration: 24N22P
Number of Turns: 40 turns
Voltage Range: 8~12V
Torque: 0.06N.m@11.1V
Resistance: 5.9Ω
No-load Current: 60mA
Maximum Stall Current: 1.2A
Structural Features

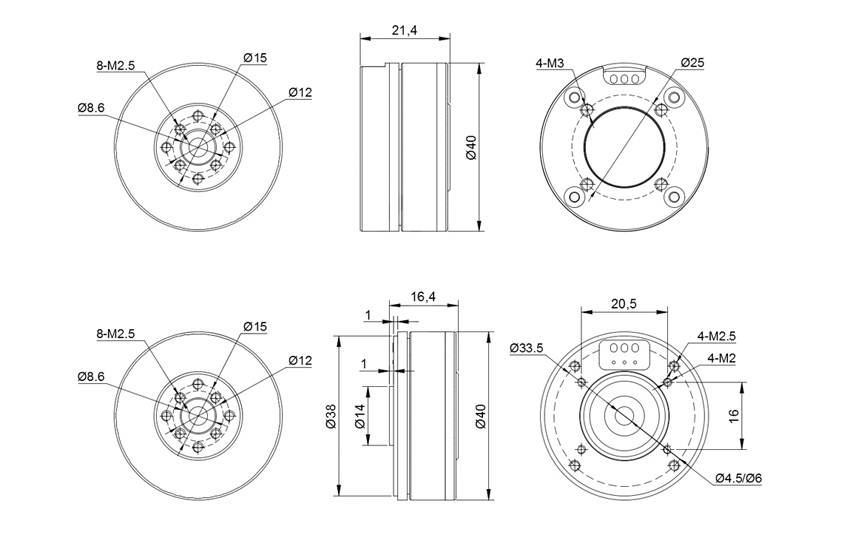

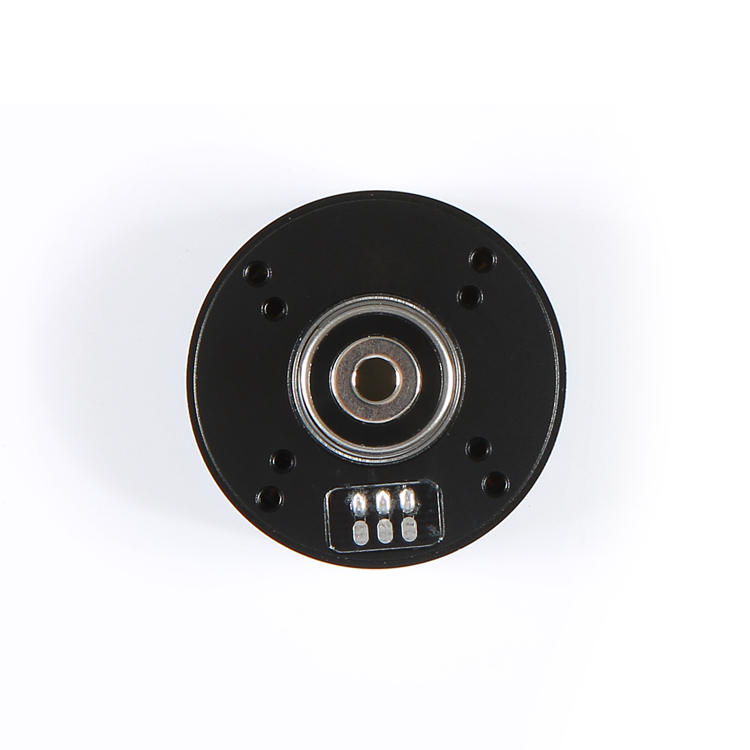

Stator Mounting Holes: Φ33.5mm, with 4 N2.5 threaded holes, making it easy to fix and integrate into various devices.
Rotor Mounting Holes: Two specifications are provided, Φ12mm 4xM2.5 and Φ15mm 4xM2.5, flexibly adapting to different load and installation requirements.
Maximum Load Capacity: It can support a gimbal or camera weighing up to 800 grams, meeting the application requirements of high-end photography, drones, etc.

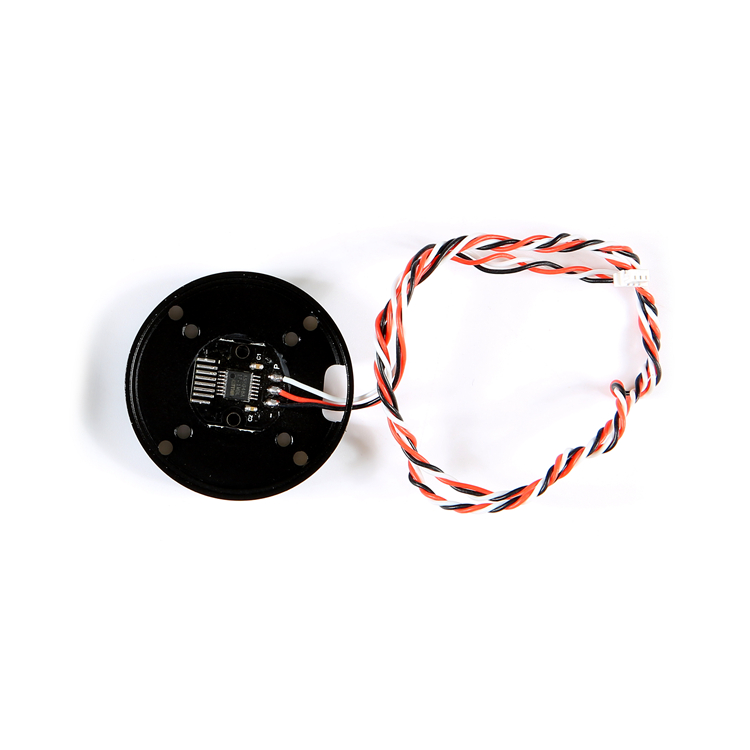

Encoder: The AS5048A encoder is adopted, providing high-precision position and speed feedback to improve the control accuracy of the system.

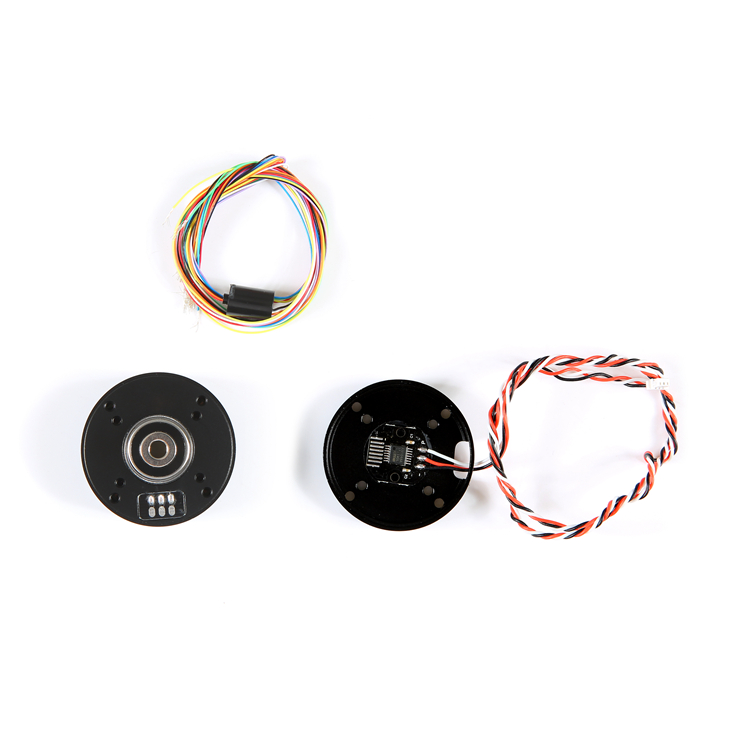

Slip Ring: With a diameter of 8.5mm, it ensures stable and reliable electrical connections, suitable for high-speed rotation applications.
Application Areas
The 3505 Gimbal brushless motor is widely used in drone gimbals, precision robots, precision instruments, photographic equipment, and various electronic devices that require high-precision control and high-efficiency output. Whether in industrial applications that require a quick response or in outdoor devices that need to operate stably for a long time, the 3505 Gimbal brushless motor performs exceptionally well.
Precautions
Safe Operation: Ensure that the power supply is correctly connected to avoid short circuits or overloads. During use, avoid touching the rotating parts of the motor to prevent pinching or electric shock.
Heat Dissipation Management: When operating under high load for an extended period, still pay attention to heat dissipation to avoid performance degradation or damage caused by overheating.
Installation and Maintenance: Strictly follow the dimensions and torque requirements in the technical specification sheet to ensure that the motor is firmly fixed. Regularly check the motor and its connecting components, and promptly clean dust and dirt to maintain the motor’s performance.
Voltage Matching: Please ensure that the supply voltage is within the range of 8~12V to avoid damage to the motor or a decline in its performance due to too high or too low a voltage.
Environmental Adaptability: Avoid using it in extreme temperature, humidity, or corrosive environments to extend the lifespan of the motor.
