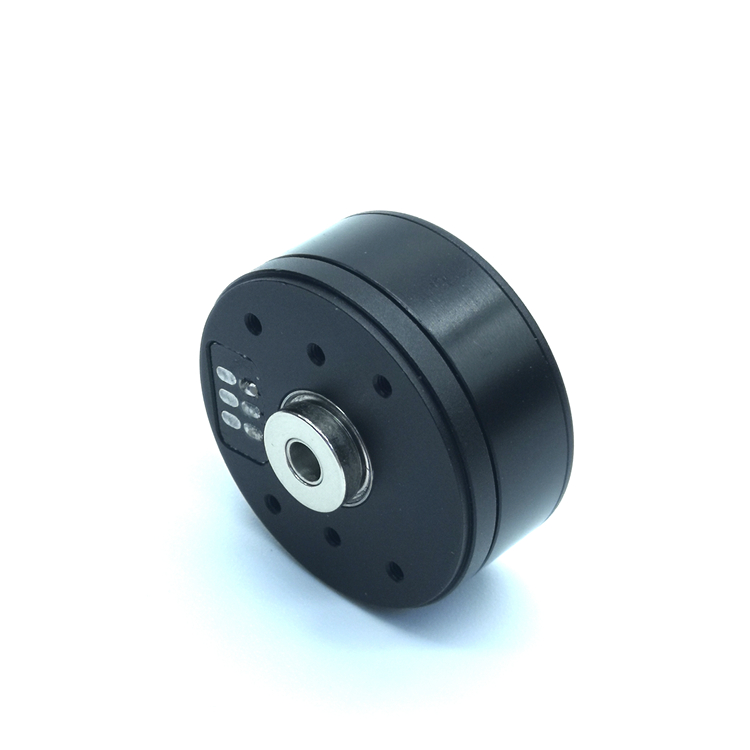

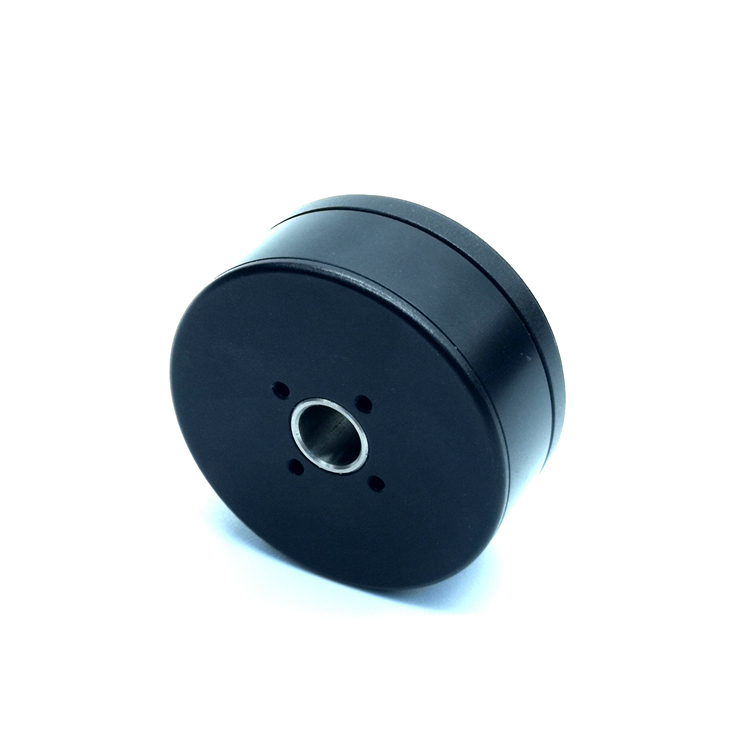

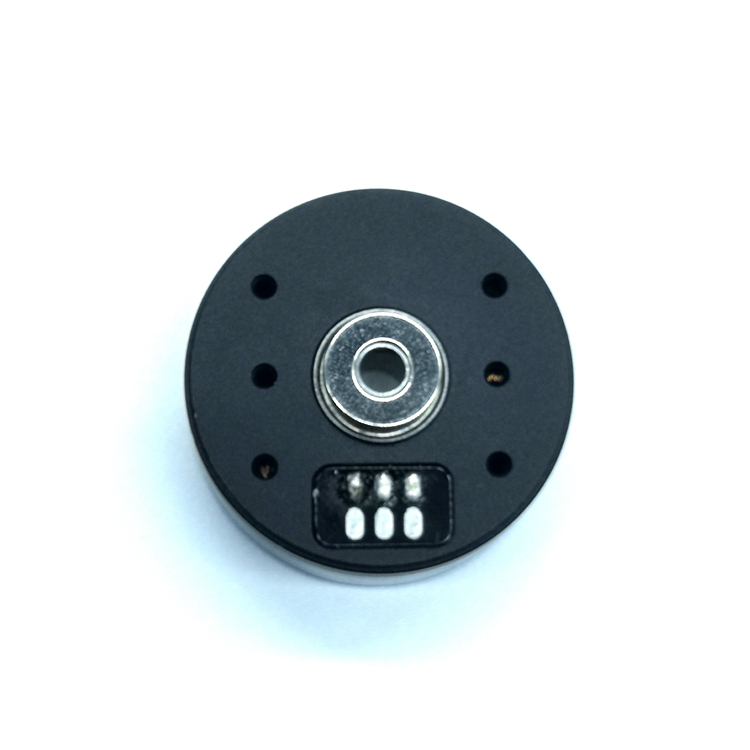

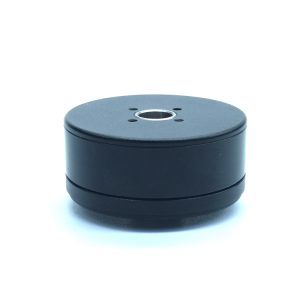

2806 Gimbal brushless motor

Description

The 2806 Gimbal brushless motor, as a brushless DC motor specifically designed for precision applications, has become a popular choice in the market thanks to its excellent performance, compact structure, and wide range of application fields. It not only incorporates advanced manufacturing processes but also pays attention to details and efficiency, providing a stable and efficient power source for devices such as drones, handheld stabilizers, and small robots.

Performance Parameters

Product Model: XTG2806

Configuration: 12N14P

Resistance: 5.1Ω

Weight: 35 grams

Voltage Range: 8~12V

Maximum Torque: 0.04N.m @11.1V

Maximum Load Capacity: It can support a gimbal or camera weighing up to 380 grams, suitable for lightweight shooting and stabilizing equipment.

Structural Features

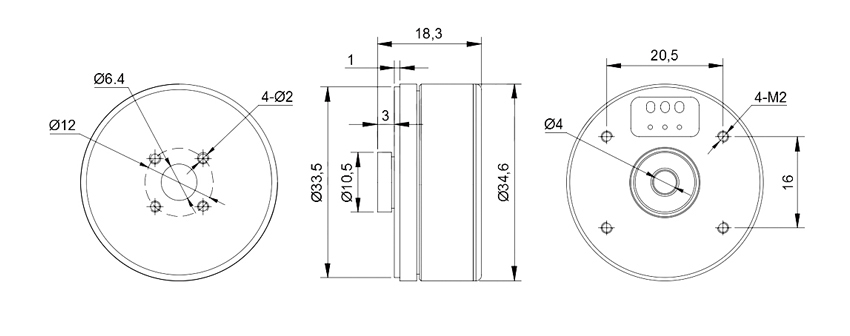

Stator Size: Φ28x6mm. The compact structural design enables the motor to provide powerful power output within a limited space.

Encoder: The AS5048A high-precision encoder is adopted, providing accurate position feedback and improving the control precision and stability of the system.

Brushless Design: There is no need to replace the carbon brushes regularly, reducing the maintenance cost. At the same time, it improves the operation stability and service life of the motor.

Application Areas

Drones: Provide stable and efficient power support for flight, ensuring smooth and safe flight.

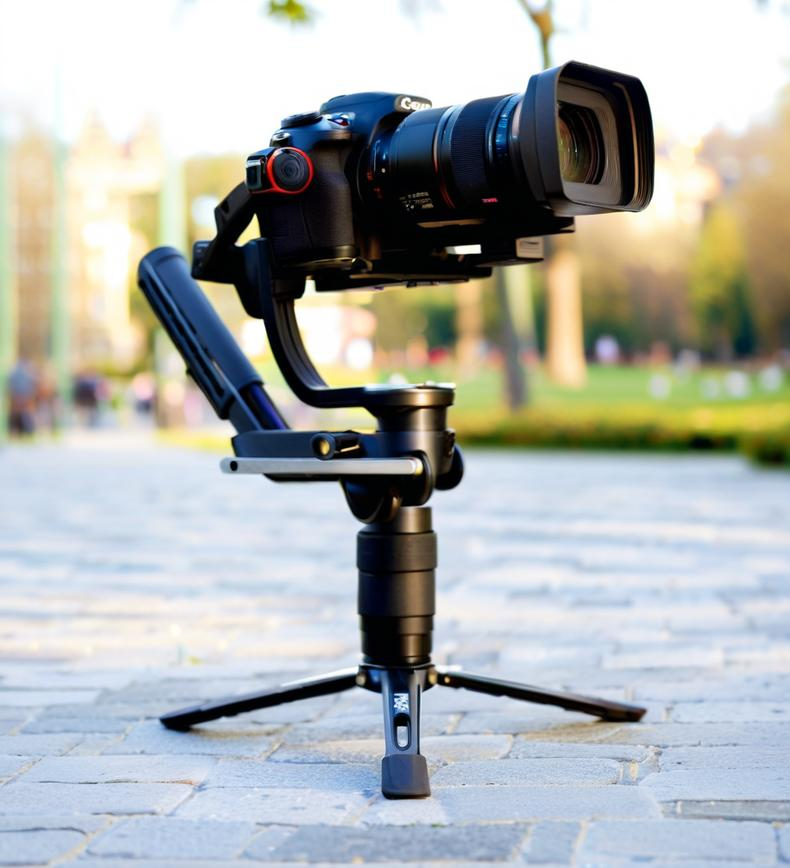

Handheld Stabilizers: Help photographers obtain smoother and more stable video footage, improving the shooting quality.

Small Robots: Provide a reliable power source for the precise operation of robots, enhancing the movement performance and stability of robots.

Precautions

Voltage Matching: Please ensure that the supply voltage is within the range of 8~12V to avoid damage to the motor or a decline in its performance due to too high or too low a voltage.

Load Limitation: Do not exceed the maximum load capacity of the motor (380 grams) to avoid placing excessive pressure on the motor and affecting its performance and lifespan.

Heat Dissipation Management: When operating under high load for an extended period, still pay attention to heat dissipation to avoid performance degradation or damage caused by overheating.

Regular Inspection: Regularly check the operation status of the motor and its connecting components to ensure that the motor is in good working condition.

Safety Protection: Please ensure that appropriate protective equipment is worn during operation to avoid electric shock or mechanical injury.

If you are interested in the 2806 Gimbal brushless motor or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:

Telephone: +86-769-85228181

Email: chris@x-teamrc.com
