Description

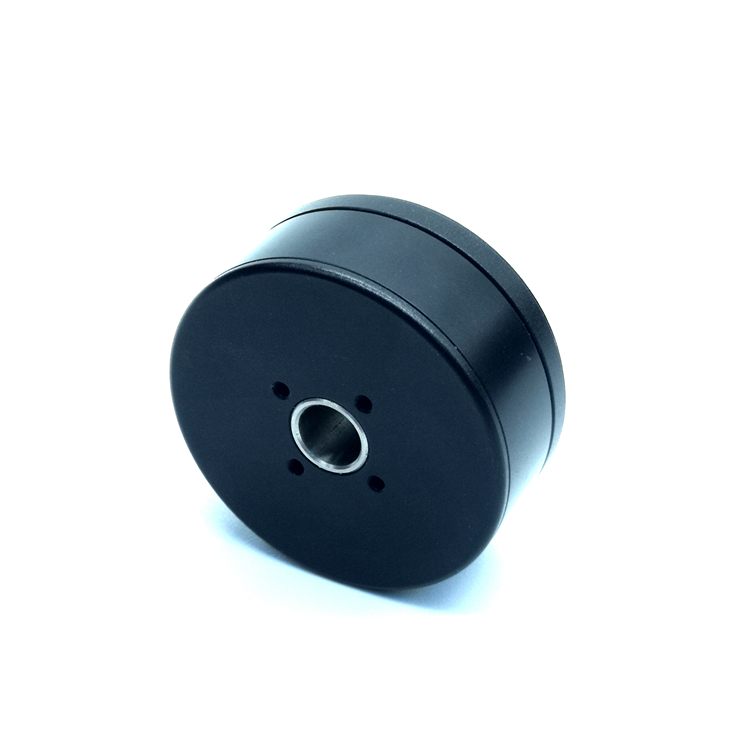

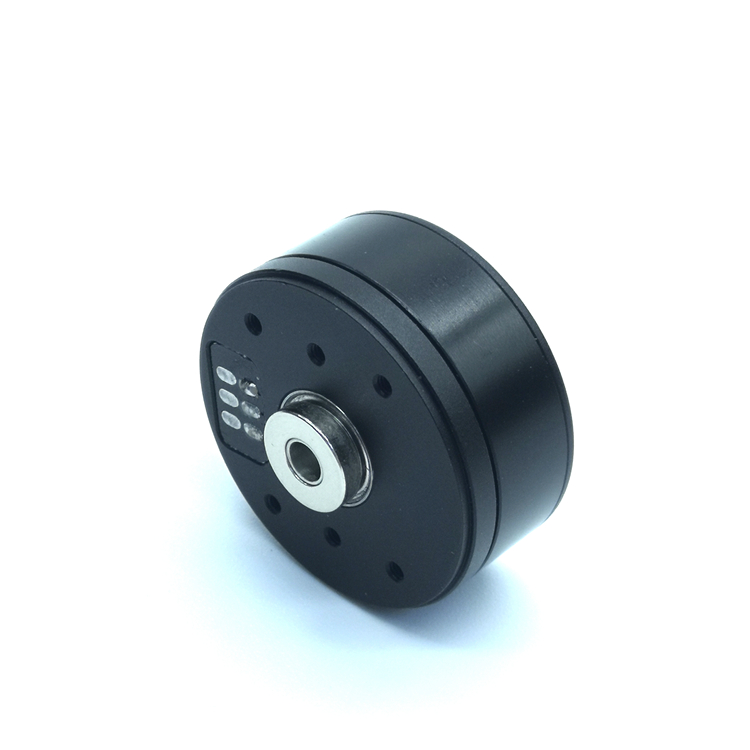

The 2804 Gimbal brushless motor is designed for ultra-low load, high-precision and miniaturized devices. With an extremely lightweight body of only 25g, low power consumption characteristics and flexible installation interfaces, this model is widely used in various fields such as miniature gimbals, desktop robots, medical handheld tools and smart wearable devices, providing an efficient power solution for space-sensitive applications.
Performance Parameters
Product Model: XTG2804
Torque: At a voltage of 11.1V, the XTG2804 can provide a torque of up to 39mN.m, demonstrating its strong load capacity.
Rotor Mounting Holes: The motor rotor provides two specifications of mounting holes, Φ20.5mm 4xM2 and Φ16mm 4xM2.
Weight: 25g
Resistance: 5.1Ω
Stator Size (Diameter x Length): Φ28x4mm
No-load Current: 58mA
Maximum Load Weight: Up to 380g
Configuration: 12N14P
Number of Turns: 60T
Encoder: The AS5048A encoder provides high-precision position feedback, enabling the motor to achieve precise control.
Voltage Range: The motor supports a wide voltage input of 8~12V, making it suitable for various power supply environments.

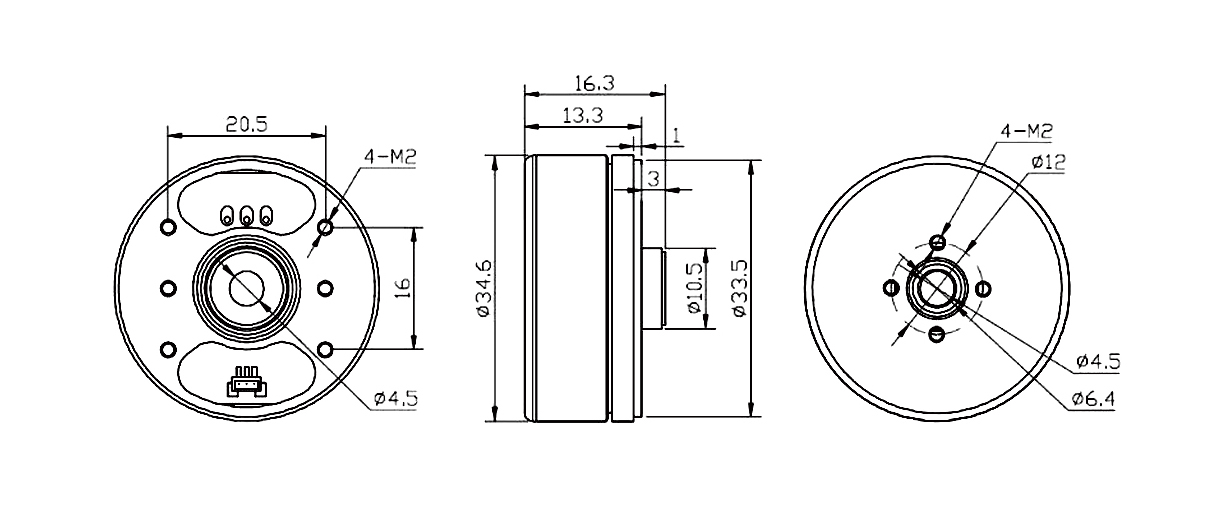

Stator Mounting Holes: Φ12 4xM2
Structural Features
Efficient Electromagnetic System
12N14P Pole-slot Ratio: Optimizes the magnetic field distribution, reduces torque ripple, and ensures smooth and jitter-free operation.
60T Winding Process: It is suitable for a voltage of 8~12V, maintaining high-efficiency conversion in a miniaturized design and reducing heat generation.
Extremely Compact and Compatible

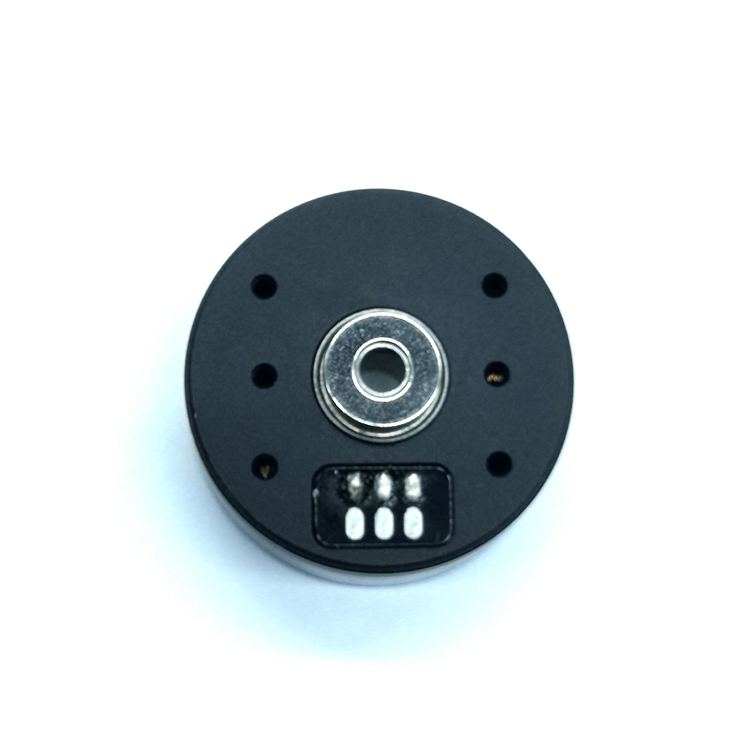

Stator End: Φ12mm circular circumference with 4×M2 screw holes, suitable for miniature bracket structures.
Rotor End: Double rings of Φ20.5mm and Φ16mm with 4×M2 screw holes, compatible with the connection of smaller-sized loads.
Highly Integrated Feedback System
AS5048A Magnetic Encoder: 14-bit high-resolution angle detection with a positioning error of ±0.3°, ensuring precise control of micro-movements.
Application Areas
Micro Camera Gimbals: With a 380g load, it is suitable for action cameras or phone holders. The ultra-light design enhances portability and battery life.
Desktop-level Robotic Arms: It operates with low torque and silently, making it suitable for light automation devices such as educational robots and 3D printing pens.
Medical Micro Devices: Such as dental handpieces and endoscope steering mechanisms. Its characteristic of no electromagnetic interference ensures the safety of the equipment.
Smart Wearable Gimbals: Integrated into AR/VR headsets or motion tracking devices to achieve low-power and high-precision angle adjustment.
Precautions
Voltage Matching: Please ensure that the input voltage of the motor is within the range of 8~12V to avoid overloading or damaging the motor.
Load Limitation: Please do not exceed the maximum load weight of the motor (380g) to avoid overloading or damaging the motor.
Heat Dissipation: During use, please pay attention to the heat dissipation of the motor. Avoid continuous high-load operation for a long time to prevent the motor from overheating.
Installation: Please install and fix the motor correctly according to the specifications of the motor mounting holes to ensure the stability and safety of the motor.
Maintenance: Regularly inspect and maintain the motor, keep the motor clean and lubricated to extend its service life.
If you are interested in the 2804 Gimbal brushless motor or need more product information, please feel free to contact us. We are committed to providing you with high-quality products and services to meet your needs. Whether in automation, robotics, or other high-performance application scenarios, X-TEAM motors can provide you with reliable power support. If you have any questions or need to place an order, please contact us through the following methods:
Telephone: +86-769-85228181
Email: chris@x-teamrc.com
